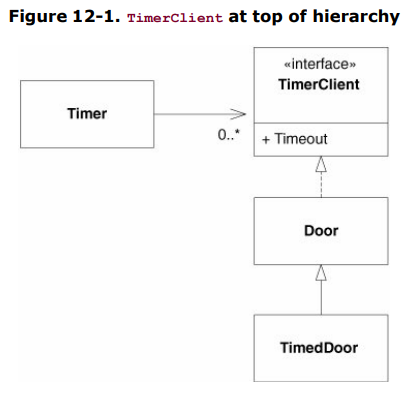

图12-1的实现正确吗?

这是Bob叔叔的书“C#中的敏捷原则、模式和实践”中接口污染示例的实现。
我曾尝试实施以下措施:
using System;
namespace AgilePrinciplesCSharp.Chapter12.Listing12_2
{
class Listing12_2
{
static void Main(string[] args)
{
var door = new TimedDoor();
var client = new Client(door);
client.TimeOut();
}
}
public interface ITimerClient
{
void TimeOut();
}
// We force Door, and therefore (indirectly) TimedDoor, to inherit from TimerClient.
public interface IDoor : ITimerClient
{
void Lock();
void Unlock();
bool IsDoorOpen();
}
// Implementation of Door Interface with Timer functionality
public class TimedDoor : IDoor
{
public bool IsDoorOpen()
{
return true;
}
public void Lock()
{
Console.WriteLine("Door Locked");
}
public void TimeOut()
{
var timer = new Timer();
timer.Register(5, this);
Console.WriteLine("Timeout! Door left open for so long");
}
public void Unlock()
{
Console.WriteLine("Door Unlocked");
}
}
// Timer class can use an object of TimerClient
public class Timer
{
public void Register(int timeout, ITimerClient client)
{
/* CODE */
}
}
// Client uses Door Interface without depending upon any particular implementation of Door
public class Client
{
IDoor door;
public Client(IDoor door)
{
this.door = door;
}
public void TimeOut()
{
door.TimeOut();
}
}
}我对实现在书中描述的方式表示怀疑,在这种情况下,Door有时被称为类,有时被称为接口,我感到困惑的是,除了IDoor接口之外,是否需要有单独的Door类实现?另外,作者在命名接口时不使用I符号,这使得接口更加混乱。
如果有人读过这本书,我希望能理解我的关心,并帮助我解决这个问题。
注意:这本书也可以在线阅读。此讨论见第215页. https://druss.co/wp-content/uploads/2013/10/Agile-Principles-Patterns-and-Practices-in-C.pdf
发布于 2019-06-20 07:14:13
我相信他正在使用UML类图表示法,因此这个图似乎适用于:

链接。
如果我正确地阅读了这篇文章,TimedDoor应该继承Door。但是在您的示例中,TimedDoor实现了IDoor。这与图表不一致。
宣言应包括:
class TimedDoor : Door我不认为你需要一个IDoor。示例中的germaine是Door必须实现ITimerClient才能让Timer在其上执行操作。ITimerClient应该公开一个公共成员,Timeout()。推测当计时器调用此方法时,如果门是定时的门,则门应该自己解锁。默认行为(例如,对于非定时的门)可能是不操作的。
interface ITimerClient
{
void Timeout();
}
class Door : ITimerClient
{
public virtual void Timeout()
{
//No operation; this isn't a timed door
}
//etc.
}
class TimedDoor : Door
{
protected bool locked = true;
public override void Timeout()
{
this.Unlock(); //Override default behavior because this type of door is timed
base.Timeout(); //Optional, sometimes recommended
}
public virtual void Unlock()
{
this.locked = false;
}
//etc.
}https://stackoverflow.com/questions/56680104
