blocks|key|2190473|text|根据AndroidStudio3.1发行说明|type|unstyled|depth|inlineStyleRanges|entityRanges|offset|length|data|2190474|设备监视器可从命令行获得
在AndroidStudio3.1中，设备监视器所扮演的角色比以前少了。在许多情况下，通过设备监视器提供的功能现在由新的和改进的工具提供。
有关从命令行调用设备监视器的说明以及通过设备监视器可用工具的详细信息，请参见设备监视器文档。|blockquote|style|BOLD|2190475|因此，如果仍然希望运行设备监视器，则需要从命令行手动启动它。否则，迁移到直接内置到Android中的更新的性能工具和更新的布局检查器。|2190476|entityMap|0|LINK|mutability|MUTABLE|url|https://developer.android.com/studio/releases/index.html#device_monitor_available_from_the_command_line|1|https://developer.android.com/studio/profile/monitor.html|2|https://developer.android.com/studio/releases/index.html#performance_tools|3|https://developer.android.com/studio/releases/index.html#layout_inspector^0|2|K|0|0|0|A|3D|7|1|0|1E|7|2|1M|8|3|0^^$0|@$1|2|3|4|5|6|7|Y|8|@]|9|@$A|Z|B|10|1|11]]|C|$]]|$1|D|3|E|5|F|7|12|8|@$A|13|B|14|G|H]]|9|@$A|15|B|16|1|17]]|C|$]]|$1|I|3|J|5|6|7|18|8|@]|9|@$A|19|B|1A|1|1B]|$A|1C|B|1D|1|1E]]|C|$]]|$1|K|3|-4|5|6|7|1F|8|@]|9|@]|C|$]]]|L|$M|$5|N|O|P|C|$Q|R]]|S|$5|N|O|P|C|$Q|T]]|U|$5|N|O|P|C|$Q|V]]|W|$5|N|O|P|C|$Q|X]]]]

Per the <a href="https://developer.android.com/studio/releases/index.html#device_monitor_available_from_the_command_line" rel="nofollow noreferrer">Android Studio 3.1 release notes</a>:
<blockquote>
Device Monitor available from the command line
In Android Studio 3.1, the Device Monitor serves less of a role than it previously did. In many cases, the functionality available through the Device Monitor is now provided by new and improved tools.
See the <a href="https://developer.android.com/studio/profile/monitor.html" rel="nofollow noreferrer">Device Monitor documentation</a> for instructions for invoking the Device Monitor from the command line and for details of the tools available through the Device Monitor.
</blockquote>
So you need to manually start it from the command line if you still want to run the Device Monitor. Otherwise, migrate to the <a href="https://developer.android.com/studio/releases/index.html#performance_tools" rel="nofollow noreferrer">updated performance tools</a> and <a href="https://developer.android.com/studio/releases/index.html#layout_inspector" rel="nofollow noreferrer">updated Layout Inspector</a> built directly into Android Studio.

blocks|key|1097571|text|嗯，我发现唯一的办法是从命令行打开！|type|unstyled|depth|inlineStyleRanges|entityRanges|data|1097572|查找SDK位置文件夹/tools，然后执行monitor|offset|length|style|CODE|1097573|​|1097574|📷|atomic|1097575|1097576|但是我发现了一个问题，AS必须关闭，因为我收到端口8700不能打开，因为使用了！|1097577|1097578|1097579|1097580|所以，要从命令行打开ADM，现在我必须关闭。|1097581|可从命令行获得设备监视器|1097582|在AndroidStudio3.1中，设备监视器所扮演的角色比以前少了。在许多情况下，通过设备监视器提供的功能现在由新的和改进的工具提供。|blockquote|1097583|有关从命令行调用设备监视器的说明，以及通过设备监视器可用的工具的详细信息，请参阅设备监视器文档。|1097584|谢谢你的回答+@ianhanniballake现在我看到了正式文件。上的信息|1097585|entityMap|0|IMAGE|mutability|IMMUTABLE|imageUrl|https://developer.qcloudimg.com/http-save/yehe-900000/5648c0087fbb93d4334147317b42fd5d.png|imageAlt|1|https://developer.qcloudimg.com/http-save/yehe-900000/c1ac55fd6d51f8cd375970ac8a621474.png|2|LINK|MUTABLE|url|https://stackoverflow.com/a/49525023/250260|3|https://developer.android.com/studio/releases/index.html#device_monitor_available_from_the_command_line^0|0|A|6|L|7|0|0|0|1|0|0|0|0|0|0|1|1|0|0|0|0|0|0|4|2|2|T|5|3|0^^$0|@$1|2|3|4|5|6|7|1L|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|1M|8|@$D|1N|E|1O|F|G]|$D|1P|E|1Q|F|G]]|9|@]|A|$]]|$1|H|3|I|5|6|7|1R|8|@]|9|@]|A|$]]|$1|J|3|K|5|L|7|1S|8|@]|9|@$D|1T|E|1U|1|1V]]|A|$]]|$1|M|3|I|5|6|7|1W|8|@]|9|@]|A|$]]|$1|N|3|O|5|6|7|1X|8|@]|9|@]|A|$]]|$1|P|3|I|5|6|7|1Y|8|@]|9|@]|A|$]]|$1|Q|3|K|5|L|7|1Z|8|@]|9|@$D|20|E|21|1|22]]|A|$]]|$1|R|3|I|5|6|7|23|8|@]|9|@]|A|$]]|$1|S|3|T|5|6|7|24|8|@]|9|@]|A|$]]|$1|U|3|V|5|6|7|25|8|@]|9|@]|A|$]]|$1|W|3|X|5|Y|7|26|8|@]|9|@]|A|$]]|$1|Z|3|10|5|6|7|27|8|@]|9|@]|A|$]]|$1|11|3|12|5|6|7|28|8|@]|9|@$D|29|E|2A|1|2B]|$D|2C|E|2D|1|2E]]|A|$]]|$1|13|3|-4|5|6|7|2F|8|@]|9|@]|A|$]]]|14|$15|$5|16|17|18|A|$19|1A|1B|-4]]|1C|$5|16|17|18|A|$19|1D|1B|-4]]|1E|$5|1F|17|1G|A|$1H|1I]]|1J|$5|1F|17|1G|A|$1H|1K]]]]

Well, i found that the only way is opening from the command line!

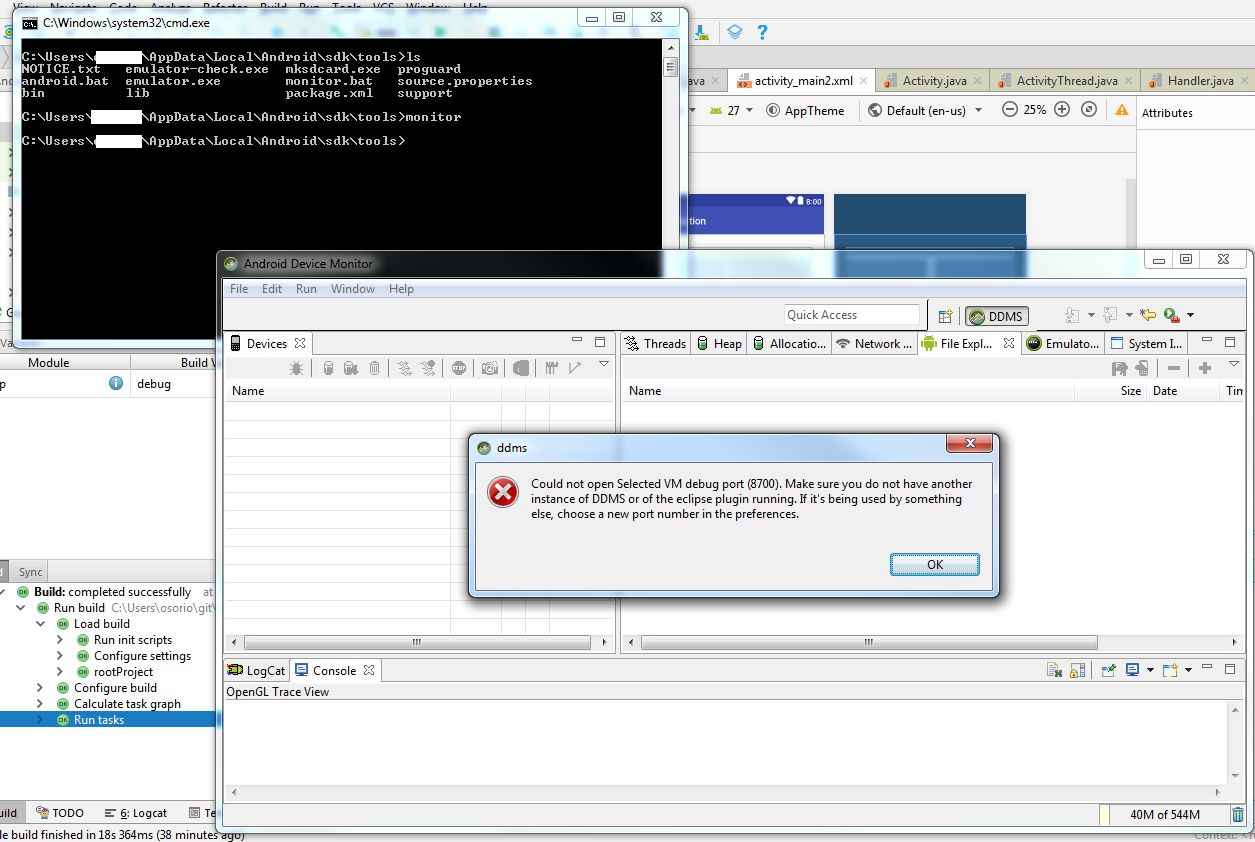

Looking for the SDK location folder <code>/tools</code> then execute <code>monitor</code>

<a href="https://i.stack.imgur.com/fEubN.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/fEubN.png" alt="enter image description here"></a>

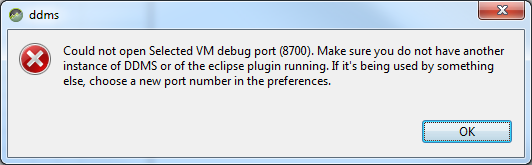

but i found a problem, the AS must be closed because i receive that the port 8700 cannot be open because is used!

<a href="https://i.stack.imgur.com/4rp9w.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/4rp9w.png" alt="enter image description here"></a>

so to open ADM from command line now i have to close AS.

Device Monitor available from the command line

<blockquote>
 In Android Studio 3.1, the Device Monitor serves less of a role than
 it previously did. In many cases, the functionality available through
 the Device Monitor is now provided by new and improved tools.
</blockquote>

See the Device Monitor documentation for instructions for invoking the Device Monitor from the command line and for details of the tools available through the Device Monitor.

thanks for your <a href="https://stackoverflow.com/a/49525023/250260">answer</a> @ianhanniballake now i see the info in the <a href="https://developer.android.com/studio/releases/index.html#device_monitor_available_from_the_command_line" rel="nofollow noreferrer">official documentation.</a>

blocks|key|1098226|text|在AndroidStudio3.1中，工具发生了变化。DDMS或ADM工具被设备文件资源管理器工具所取代。你得去菜单上。遵循以下步骤：|type|unstyled|depth|inlineStyleRanges|entityRanges|data|1098227|要打开，请单击“查看”>“工具Windows”>“设备文件资源管理器”。|1098228|以下是更多提示的链接。祝好运!|offset|length|1098229|entityMap|0|LINK|mutability|MUTABLE|url|https://developer.android.com/studio/releases/#device_monitor_available_from_the_command_line^0|0|0|0|A|0|0^^$0|@$1|2|3|4|5|6|7|P|8|@]|9|@]|A|$]]|$1|B|3|C|5|6|7|Q|8|@]|9|@]|A|$]]|$1|D|3|E|5|6|7|R|8|@]|9|@$F|S|G|T|1|U]]|A|$]]|$1|H|3|-4|5|6|7|V|8|@]|9|@]|A|$]]]|I|$J|$5|K|L|M|A|$N|O]]]]

In Android Studio 3.1, the tools have changed. The DDMS or ADM tools were replaced by the Device File Explorer tool. You need to go to the menu. Follow these steps:

To open, click View > Tool Windows > Device File Explorer.

<a href="https://developer.android.com/studio/releases/#device_monitor_available_from_the_command_line" rel="nofollow noreferrer">Here is a link for more tips</a>. Good luck!

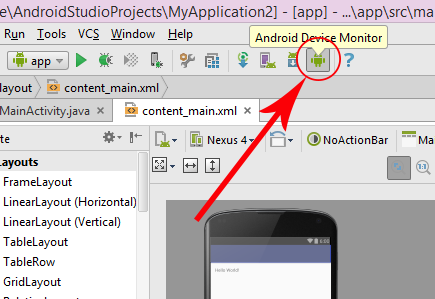

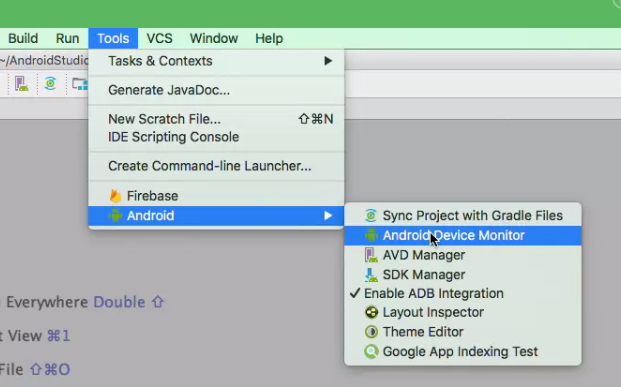

Today i have upgraded from Android Studio 3.0 to 3.1 but I can´t find the <a href="https://developer.android.com/studio/profile/monitor.html" rel="nofollow noreferrer">Android Device Monitor</a>!

<a href="https://i.stack.imgur.com/SkUF2.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/SkUF2.png" alt="enter image description here"></a>

<a href="https://i.stack.imgur.com/oRKqD.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/oRKqD.png" alt="enter image description here"></a>

How can access to the <a href="https://developer.android.com/studio/profile/monitor.html" rel="nofollow noreferrer">Android Device Monitor</a> in Android Studio 3.1?

Where is ADM in Android Studio 3.1?
