问在jupyter笔记本内使用tkinter进行nltk绘图

EN

import os
import nltk
from IPython.display import Image

chunkGram = r"""Chunk: {<RB.?>*<VB.?>*<NNP>+<NN>?}"""
chunkParser = nltk.RegexpParser(chunkGram)

tagged = [('Tonight', 'NN'), ('we', 'PRP'), ('are', 'VBP'), ('comforted', 'VBN'), ('by', 'IN'), ('the', 'DT'), ('hope', 'NN'), ('of', 'IN'), ('a', 'DT'), ('glad', 'JJ'), ('reunion', 'NN'), ('with', 'IN'), ('the', 'DT'), ('husband', 'NN'), ('who', 'WP'), ('was', 'VBD'), ('taken', 'VBN'), ('so', 'RB'), ('long', 'RB'), ('ago', 'RB'), (',', ','), ('and', 'CC'), ('we', 'PRP'), ('are', 'VBP'), ('grateful', 'JJ'), ('for', 'IN'), ('the', 'DT'), ('good', 'JJ'), ('life', 'NN'), ('of', 'IN'), ('Coretta', 'NNP'), ('Scott', 'NNP'), ('King', 'NNP'), ('.', '.')]
chunked = chunkParser.parse(tagged)
nltk.draw.tree.TreeView(chunked)._cframe.print_to_file('output.ps')
os.system('convert output.ps output.png')

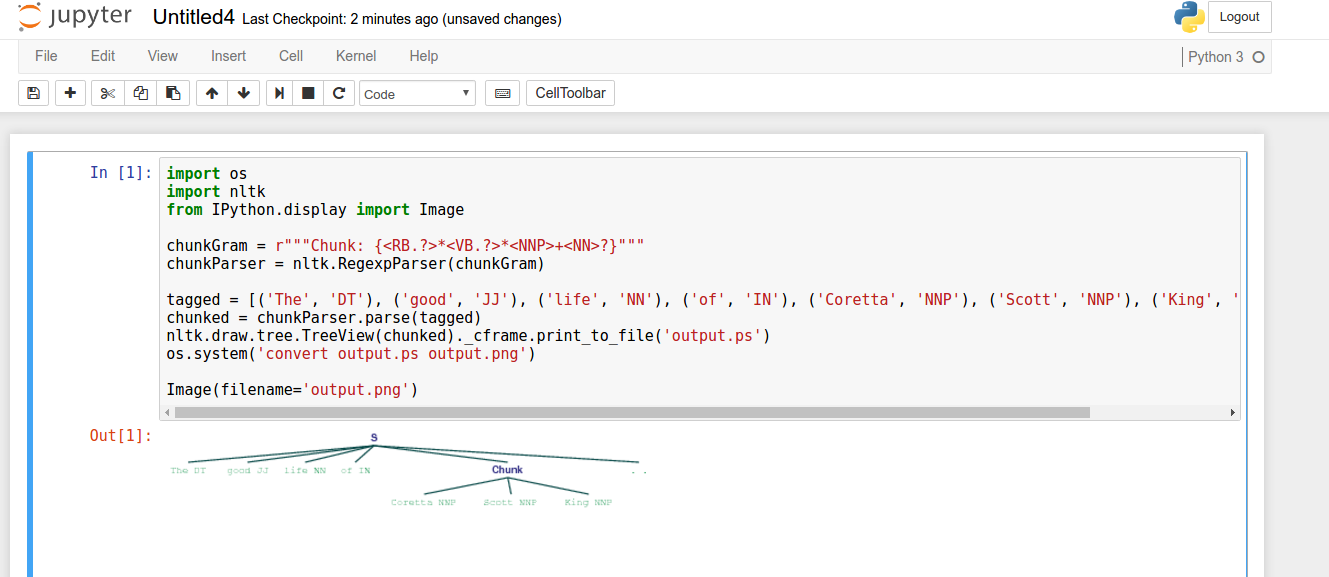

Image(filename='output.png')

import os
import matplotlib as mpl
if os.environ.get('DISPLAY','') == '':
    print('no display found. Using non-interactive Agg backend')
    mpl.use('Agg')
import matplotlib.pyplot as plt

def jupyter_draw_nltk_tree(tree):
    from IPython.display import Image, display
    from nltk.draw import TreeWidget
    from nltk.draw.util import CanvasFrame
    import subprocess
    cf = CanvasFrame()
    tc = TreeWidget(cf.canvas(), tree)
    tc['node_font'] = 'arial 13 bold'
    tc['leaf_font'] = 'arial 14'
    tc['node_color'] = '#005990'
    tc['leaf_color'] = '#3F8F57'
    tc['line_color'] = '#175252'
    cf.add_widget(tc, 10, 10)
    cf.print_to_file('tmp_tree_output.ps')
    cf.destroy()

    args = (['convert', 'tmp_tree_output.ps', 'tmp_tree_output.png'])
    subprocess.call(args)
    display(Image(filename='tmp_tree_output.png'))
    os.system('rm tmp_tree_output.ps tmp_tree_output.png')

jupyter_draw_nltk_tree(chunked)
