Could you please explain how you've computed orientation of gradients? I believe you've grouped each 4x4 window and computed the orientation of gradients inside each such window. But the sobel operator used has size 5x5. This obviously result in some overlap. Could you explain on this?

I am trying to implement a image matching algorithm based on gradient orientation matching. The main algo contains from the following steps:

<a href="https://i.stack.imgur.com/fvZ53.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/fvZ53.png" alt="enter image description here"></a>

<ol>

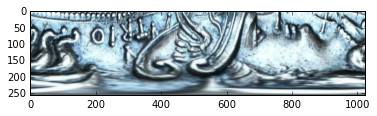

<li>convert the image to polar coordinates:</li>
</ol>

<a href="https://i.stack.imgur.com/m7VBl.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/m7VBl.png" alt="enter image description here"></a>

<ol start="2">

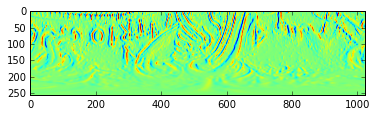

<li>calculate gradients using sobel operator:

Xgrad = cv2.Sobel(gr,cv2.CV_64F,1,0,ksize=5)</li>
</ol>

<a href="https://i.stack.imgur.com/nEm1X.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/nEm1X.png" alt="enter image description here"></a>

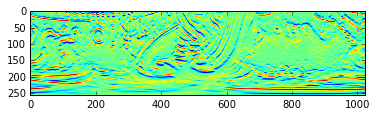

<pre><code>Ygrad = cv2.Sobel(gr,cv2.CV_64F,0,1,ksize=3)
</code></pre>

<a href="https://i.stack.imgur.com/dndHN.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/dndHN.png" alt="enter image description here"></a>

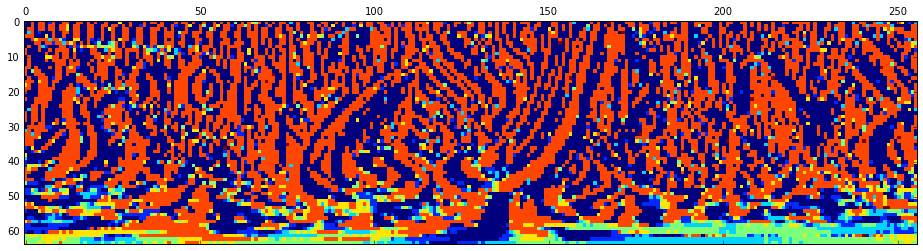

3) calculate orientation of gradient and binarize it. :

<a href="https://i.stack.imgur.com/3SKZL.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/3SKZL.png" alt="enter image description here"></a>

Now I can compare images using last features map with ignorance to rotation ans smal changes.

But what I have found that this algo detects rotations of the same image with rotation rather purely. I have build a test image with circles to test this algo:

<a href="https://i.stack.imgur.com/dRBM1.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/dRBM1.png" alt="enter image description here"></a>

and rotated it to 10 grads

<a href="https://i.stack.imgur.com/YJamQ.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/YJamQ.png" alt="enter image description here"></a>

here are polar conversions:

<a href="https://i.stack.imgur.com/VMjvM.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/VMjvM.png" alt="enter image description here"></a>

<a href="https://i.stack.imgur.com/7yoVi.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/7yoVi.png" alt="enter image description here"></a>

and gradient orientation masks: as You se here is already a lot of noise on gradient matrix. and it brokes matching algo.

<a href="https://i.stack.imgur.com/1D7xg.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/1D7xg.png" alt="enter image description here"></a>
<a href="https://i.stack.imgur.com/mWXss.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/mWXss.png" alt="enter image description here"></a>

and it's best passing difference mask: the whole line areas are marked as not matched. Small gaussian blurring on different steps are not helping at all. I dont know why.

<a href="https://i.stack.imgur.com/p7QcC.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/p7QcC.png" alt="enter image description here"></a>

Update:

Gradient calculation:

<pre><code>gx = cv2.Sobel(gr,cv2.CV_64F,1,0,ksize=1)
gy = cv2.Sobel(gr,cv2.CV_64F,0,1,ksize=1)
blurredgx = cv2.GaussianBlur(gx,(11,3),1)
blurredgy = cv2.GaussianBlur(gy,(11,3),1)
magnitude, angle = cv2.cartToPolar(blurredgx, blurredgy)
</code></pre>

Calculating gradient orientation (HOG like) poor accuracy
