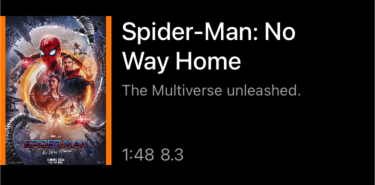

我想让view像这样:

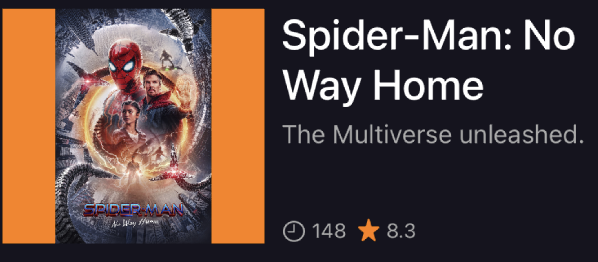

一切都很好,但是当我将图像从API放到那个UIImageView中时,就会发生这样的情况:

UIImageView正在伸展,即使有一些Hugging Priority和Compression priority
视图代码:
let scrollView = UIScrollView()
let contentView = UIView()
lazy var posterImage = UIImageView().then {
$0.contentMode = .scaleAspectFit
$0.image = UIImage(named: "img_placeholder") // placeholder image
$0.backgroundColor = .orange
$0.setContentHuggingPriority(.required, for: .horizontal)
}
lazy var titleLabel = UILabel().then {
$0.textColor = .white
$0.textAlignment = .left
$0.font = UIFont.systemFont(ofSize: 25, weight: .medium)
$0.numberOfLines = 0
$0.minimumScaleFactor = 10
$0.setContentHuggingPriority(.required, for: .vertical)
}
lazy var taglineLabel = UILabel().then {
$0.numberOfLines = 0
$0.textColor = .lightGray
$0.textAlignment = .left
$0.font = UIFont.systemFont(ofSize: 15, weight: .regular)
}
lazy var runtimeIconLabel = IconLabel().then {
$0.icon.image = UIImage(systemName: "clock")
}
lazy var ratingIconLabel = IconLabel().then {
$0.icon.image = UIImage(systemName: "star.fill")
$0.icon.tintColor = .orange
}
lazy var iconLabels = UIStackView().then {
$0.addArrangedSubview(runtimeIconLabel)
$0.addArrangedSubview(ratingIconLabel)
$0.axis = .horizontal
$0.distribution = .fill
$0.alignment = .leading
$0.spacing = 5
}
lazy var mainInfoLabelStack = UIStackView().then {
$0.addArrangedSubview(titleLabel)
$0.addArrangedSubview(taglineLabel)
$0.addArrangedSubview(UIView())
$0.addArrangedSubview(iconLabels)
$0.axis = .vertical
$0.distribution = .fill
$0.alignment = .leading
$0.spacing = 5
}
lazy var mainInfoStackView = UIStackView().then {
$0.addArrangedSubview(posterImage)
$0.addArrangedSubview(mainInfoLabelStack)
$0.axis = .horizontal
$0.distribution = .fill
$0.alignment = .fill
$0.spacing = 10
$0.isLayoutMarginsRelativeArrangement = true
$0.layoutMargins = UIEdgeInsets.detailViewComponentInset
posterImage.setContentHuggingPriority(.required, for: .horizontal)
mainInfoLabelStack.setContentHuggingPriority(.defaultLow, for: .horizontal)
}增加限制因素:
self.view.addSubview(scrollView)
scrollView.addSubview(contentView)
scrollView.snp.makeConstraints { make in
make.edges.equalToSuperview()
}
contentView.snp.makeConstraints { make in
make.edges.equalToSuperview()
make.width.equalToSuperview()
}
contentView.addSubview(mainInfoStackView)
mainInfoStackView.snp.makeConstraints { make in
make.top.left.right.equalToSuperview()
make.height.equalTo(self.view.snp.width).multipliedBy(0.45)
}我想删除UIImageView 的非预期边距
发布于 2022-02-22 05:19:53
由于维度的原因,必须将图像contentMode设置为"posterImage“的”posterImage“:
lazy var posterImage = UIImageView().then {
$0.contentMode = .scaleAspectFill
$0.image = UIImage(named: "img_placeholder") // placeholder image
$0.backgroundColor = .orange
}删除以下代码
$0.setContentHuggingPriority(.required, for: .horizontal)并设置图像的固定宽度和高度约束。
发布于 2022-02-22 13:07:25
在设置图像之前,UIImageView没有内部大小。此时,如果您没有给出控制它的约束条件,UIKit将根据新图像更改其大小。
你可能想要这样的东西:
posterImage.snp.makeConstraints { make in
make.width.equalTo(posterImage.snp.height).multipliedBy(0.75)
}为图像视图提供4:3的比例。
调整.multipliedBy值以适应您的设计。
编辑
结果是..。

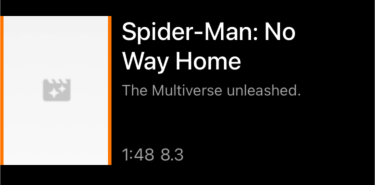

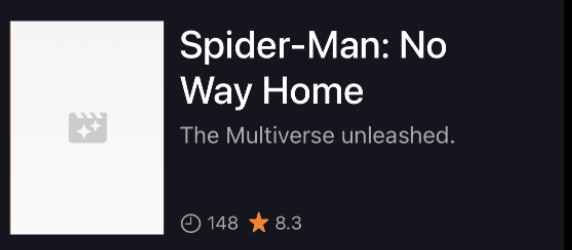

最初,posterImage有一个“占位符”映像:

然后我们将它的图像设置为这一个
