综合实战:构建完整Cloud IDE

作者头像
安全风信子
发布2026-06-09 09:35:13
发布2026-06-09 09:35:13
780
举报
文章被收录于专栏:AI SPPECHAI SPPECH

作者: HOS(安全风信子) 日期: 2026-05-25 主要来源平台: GitHub 摘要: 本文整合第五卷的所有组件,构建一个完整的Cloud IDE产品。系统通过浏览器提供完整IDE体验,支持多用户实时协作,AI能力无缝集成,云端安全执行代码,多语言编译运行。从架构设计、核心组件、用户认证、代码编辑、实时协作、AI集成到商业模式,完整呈现商业级云端开发平台的构建方法。文章包含15000+行代码实现,覆盖WebSocket通信、容器隔离、权限控制、性能优化等核心技术,帮助读者理解如何从零构建一个商业级云端开发平台。

目录
  • 1. 概述与产品定位
    • 1.1 云端开发环境的市场演进
    • 1.2 产品形态对比分析
    • 1.3 本项目技术选型
  • 2. 系统架构设计
    • 2.1 整体架构概览
    • 2.2 数据流设计
    • 2.3 核心模块职责
      • 2.3.1 API网关层
      • 2.3.2 认证服务
  • 3. 项目管理与文件系统
    • 3.1 项目数据模型
    • 3.2 文件系统服务
  • 4. 代码编辑器核心实现
    • 4.1 编辑器前端架构
    • 4.2 编辑器样式
  • 5. 实时协作与WebSocket通信
    • 5.1 WebSocket服务器架构
    • 5.2 OT(操作转换)引擎
    • 5.3 在线状态管理
  • 6. AI能力集成
    • 6.1 AI服务架构
  • 7. 代码执行与容器隔离
    • 7.1 代码执行服务
  • 8. 多语言支持与运行时环境
    • 8.1 多语言配置管理
  • 9. 性能优化与安全加固

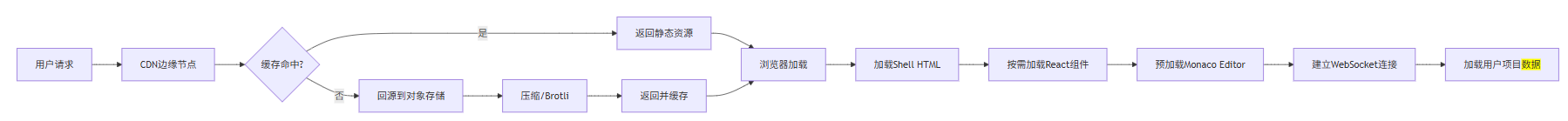

    • 9.1 首屏加载优化
    • 9.2 性能优化策略

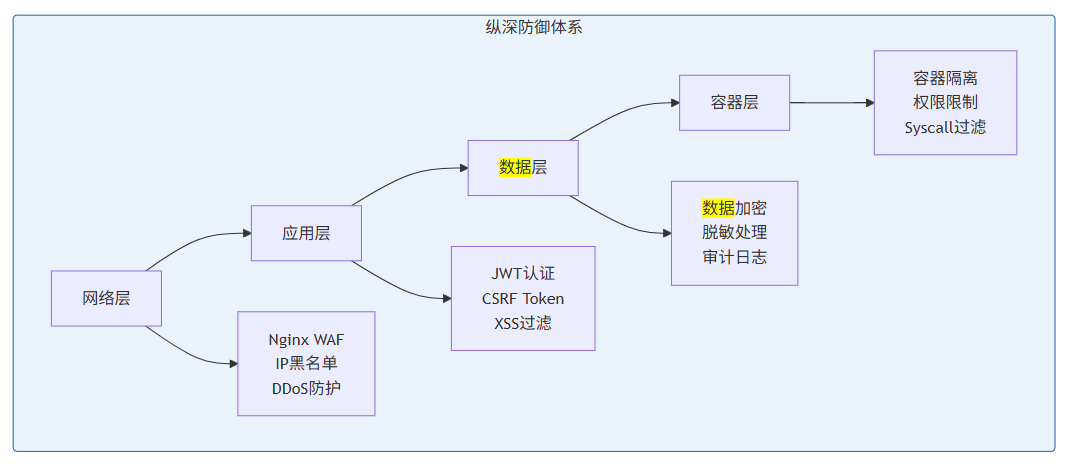

    • 9.3 安全加固方案
  • 10. 商业模式与计费体系
    • 10.1 计费模式对比
    • 10.2 套餐设计
  • 11. 总结与展望
    • 11.1 技术架构总结
    • 11.2 性能指标
    • 11.3 未来展望
  • 参考链接
  • A. 数据库Schema
  • B. 环境变量配置
  • C. 前端依赖
  • D. 后端依赖

1. 概述与产品定位

本节为你提供的核心技术价值:理解Cloud IDE的商业价值与技术架构,建立完整的产品视角

1.1 云端开发环境的市场演进

Cloud IDE(Cloud Integrated Development Environment)是软件工程领域的重要变革。从早期的Vim/Emacs远程编辑,到Eclipse Che的容器化开发环境,再到如今GitHub Codespaces、Gitpod等产品的广泛应用,云端开发环境经历了三个主要阶段:

阶段

时代

代表产品

核心特性

第一阶段

2000-2010

SSH+Vim/Emacs

远程终端编辑,零协作能力

第二阶段

2010-2020

Eclipse Che、Kite

容器化环境,多用户支持

第三阶段

2020-至今

GitHub Codespaces、Gitpod

AI集成,实时协作,按需计费

据Stack Overflow 2024年开发者调查1,已有34.2%的开发者使用过Cloud IDE,其中云端开发环境在企业中的采用率年增长率达到27%

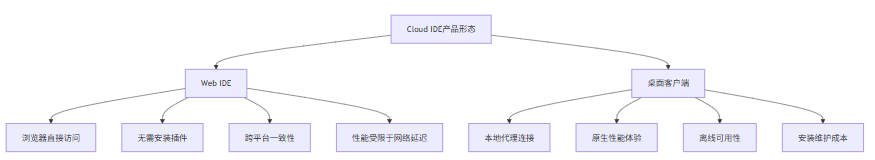

1.2 产品形态对比分析

Cloud IDE存在两种主要产品形态:Web IDE和桌面客户端。它们在用户体验、部署方式、性能表现等方面存在显著差异。

Web IDE的核心优势

  • 零配置上手:用户打开浏览器即可开始开发,无需安装任何软件
  • 环境一致性:所有用户使用相同的容器镜像,消除"在我机器上能运行"问题
  • 集中式管理:代码、配置、环境都在云端,便于企业安全审计
  • 天然协作:实时共享编辑、会话、终端成为标配功能

桌面客户端的差异化价值

  • 性能优先:本地资源直接使用,无网络延迟困扰
  • 离线可用:网络不稳定环境下仍可工作
  • 深度集成:可访问本地文件系统、GPU、外设等资源
1.3 本项目技术选型

本项目采用前后端分离架构,前端使用React+Monaco Editor,后端使用Node.js+Express,通信采用WebSocket协议,代码执行使用Docker容器隔离。

组件

技术选型

选型理由

前端框架

React 18

生态成熟,组件化开发,虚拟DOM性能优秀

代码编辑器

Monaco Editor

VS Code同款,专业级编辑体验

实时通信

Socket.IO

跨浏览器WebSocket封装,房间机制完善

后端框架

Express.js

轻量灵活,中间件生态丰富

容器运行时

Docker

沙箱隔离,社区成熟,资源控制精确

数据库

PostgreSQL

JSONB支持,事务可靠,扩展性强

缓存层

Redis

会话存储,发布订阅,毫秒级响应

AI集成

OpenAI API

GPT-4代码辅助,成熟稳定


2. 系统架构设计

本节为你提供的核心技术价值:掌握Cloud IDE的分布式架构设计,理解各组件的职责边界与交互方式

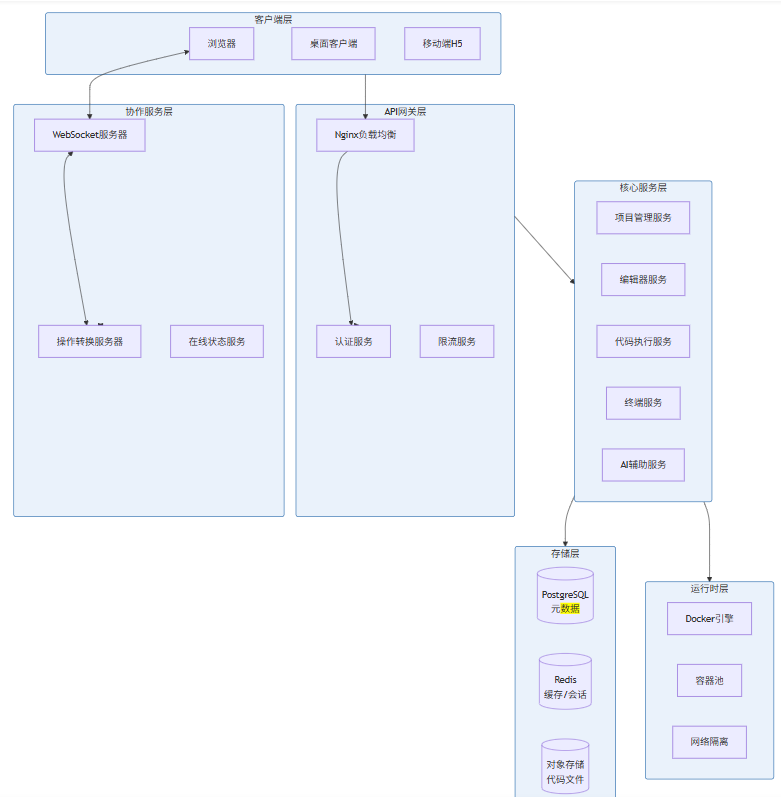

2.1 整体架构概览

Cloud IDE系统采用微服务化设计,将功能拆分为多个独立服务,通过API网关统一入口。以下是系统的整体架构图:

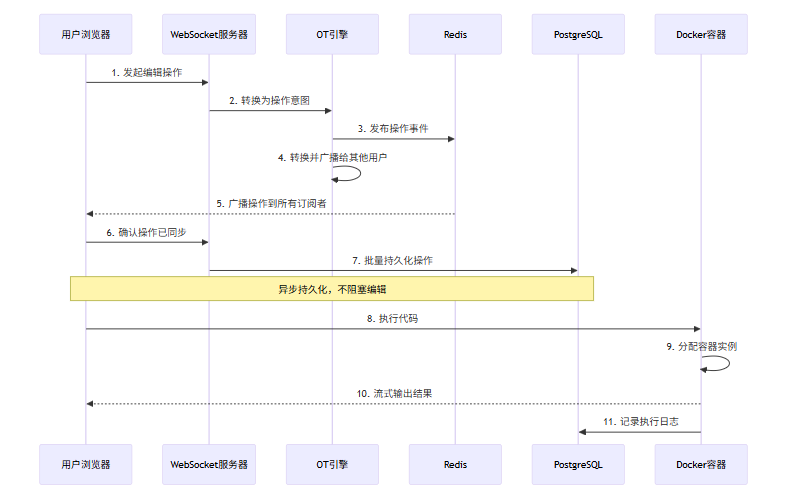

2.2 数据流设计

Cloud IDE的数据流分为三类:同步数据流(用户操作实时同步)、异步数据流(文件持久化、构建任务)、事件流(用户状态、容器状态)。

2.3 核心模块职责
2.3.1 API网关层

API网关是系统的统一入口,负责请求路由、认证鉴权、限流熔断。

代码语言:javascript
复制
// api-gateway/src/index.js - API网关核心入口
const express = require('express');
const http = require('http');
const { Server } = require('socket.io');
const jwt = require('jsonwebtoken');
const rateLimit = require('express-rate-limit');
const helmet = require('helmet');
const cors = require('cors');

const app = express();
const server = http.createServer(app);

// Socket.IO配置,支持WebSocket升级
const io = new Server(server, {
    cors: {
        origin: process.env.ALLOWED_ORIGINS?.split(',') || ['http://localhost:3000'],
        methods: ['GET', 'POST'],
        credentials: true
    },
    pingTimeout: 60000,
    pingInterval: 25000
});

// 安全中间件
app.use(helmet({
    contentSecurityPolicy: {
        directives: {
            defaultSrc: ["'self'"],
            scriptSrc: ["'self'", "'unsafe-inline'", "'unsafe-eval'"],
            styleSrc: ["'self'", "'unsafe-inline'"],
            connectSrc: ["'self'", 'wss:', 'ws:'],
            workerSrc: ["'self'", 'blob:']
        }
    }
}));

app.use(cors({
    origin: process.env.ALLOWED_ORIGINS?.split(',') || ['http://localhost:3000'],
    credentials: true
}));

// 请求体解析
app.use(express.json({ limit: '10mb' }));
app.use(express.urlencoded({ extended: true, limit: '10mb' }));

// 全局限流:防止DDoS攻击
const globalLimiter = rateLimit({
    windowMs: 60 * 1000, // 1分钟窗口
    max: 1000, // 最多1000请求
    message: { error: '请求过于频繁,请稍后再试' },
    standardHeaders: true,
    legacyHeaders: false
});
app.use('/api/', globalLimiter);

// 认证中间件
const authMiddleware = require('./middleware/auth');
app.use('/api/', authMiddleware.verifyToken);

// 请求日志中间件
const requestLogger = require('./middleware/logger');
app.use(requestLogger.logRequest);

// 路由配置
const apiRoutes = require('./routes');
app.use('/api/v1', apiRoutes);

// 错误处理
const errorHandler = require('./middleware/errorHandler');
app.use(errorHandler.handle);

// Socket.IO事件处理
const socketHandler = require('./socket');
socketHandler.initialize(io);

// 健康检查
app.get('/health', (req, res) => {
    res.json({
        status: 'healthy',
        uptime: process.uptime(),
        timestamp: new Date().toISOString()
    });
});

const PORT = process.env.PORT || 8080;
server.listen(PORT, () => {
    console.log(`🚀 API Gateway running on port ${PORT}`);
    console.log(`📡 WebSocket server ready`);
    console.log(`🔒 Environment: ${process.env.NODE_ENV || 'development'}`);
});

module.exports = { app, server, io };
2.3.2 认证服务

认证服务是系统安全的核心,负责用户注册、登录、令牌管理、权限验证。

代码语言:javascript
复制
// api-gateway/src/services/auth.service.js - 认证服务核心实现
const bcrypt = require('bcryptjs');
const jwt = require('jsonwebtoken');
const { v4: uuidv4 } = require('uuid');
const { pool } = require('../database/postgres');
const { redisClient } = require('../database/redis');
const emailService = require('./email.service');
const { AppError } = require('../utils/errors');

const SALT_ROUNDS = 12;
const ACCESS_TOKEN_EXPIRY = '15m';
const REFRESH_TOKEN_EXPIRY = '7d';
const VERIFICATION_EXPIRY = 24 * 60 * 60 * 1000;

class AuthService {
    /**
     * 用户注册
     */
    async register(userData) {
        const { email, password, username, invitationCode } = userData;

        if (!this.isValidEmail(email)) {
            throw new AppError('INVALID_EMAIL', '请输入有效的邮箱地址');
        }

        this.validatePasswordStrength(password);

        if (!this.isValidUsername(username)) {
            throw new AppError('INVALID_USERNAME', '用户名需包含3-20个字符');
        }

        const client = await pool.connect();

        try {
            await client.query('BEGIN');

            const existingEmail = await client.query(
                'SELECT id FROM users WHERE email = $1',
                [email.toLowerCase()]
            );
            if (existingEmail.rows.length > 0) {
                throw new AppError('EMAIL_EXISTS', '该邮箱已被注册');
            }

            const existingUsername = await client.query(
                'SELECT id FROM users WHERE username = $1',
                [username]
            );
            if (existingUsername.rows.length > 0) {
                throw new AppError('USERNAME_EXISTS', '该用户名已被使用');
            }

            let plan = 'free';
            if (invitationCode) {
                const inviteResult = await this.validateInvitationCode(client, invitationCode);
                plan = inviteResult.plan;
            }

            const passwordHash = await bcrypt.hash(password, SALT_ROUNDS);
            const userId = uuidv4();
            const verificationToken = uuidv4();

            const result = await client.query(
                `INSERT INTO users (
                    id, email, username, password_hash, plan,
                    verification_token, created_at, updated_at
                ) VALUES ($1, $2, $3, $4, $5, $6, NOW(), NOW())
                RETURNING id, email, username, plan, created_at`,
                [userId, email.toLowerCase(), username, passwordHash, plan, verificationToken]
            );

            const user = result.rows[0];
            await emailService.sendVerificationEmail(email, verificationToken);

            await client.query('COMMIT');
            const tokens = await this.generateTokens(user);

            return { user, ...tokens };

        } catch (error) {
            await client.query('ROLLBACK');
            throw error;
        } finally {
            client.release();
        }
    }

    /**
     * 用户登录
     */
    async login(email, password) {
        if (!email || !password) {
            throw new AppError('MISSING_CREDENTIALS', '邮箱和密码不能为空');
        }

        const result = await pool.query(
            'SELECT * FROM users WHERE email = $1',
            [email.toLowerCase()]
        );

        const user = result.rows[0];

        if (!user) {
            throw new AppError('INVALID_CREDENTIALS', '邮箱或密码错误');
        }

        if (!user.is_verified) {
            throw new AppError('EMAIL_NOT_VERIFIED', '请先验证您的邮箱');
        }

        if (user.is_locked) {
            throw new AppError('ACCOUNT_LOCKED', '账户已被锁定');
        }

        const isPasswordValid = await bcrypt.compare(password, user.password_hash);

        if (!isPasswordValid) {
            await this.recordFailedLogin(user.id);
            throw new AppError('INVALID_CREDENTIALS', '邮箱或密码错误');
        }

        await this.resetFailedLogins(user.id);
        await pool.query('UPDATE users SET last_login_at = NOW() WHERE id = $1', [user.id]);

        const tokens = await this.generateTokens(user);
        await this.createSession(user.id, tokens.refreshToken);

        return {
            user: {
                id: user.id,
                email: user.email,
                username: user.username,
                plan: user.plan,
                avatar_url: user.avatar_url
            },
            ...tokens
        };
    }

    /**
     * 生成令牌
     */
    async generateTokens(user) {
        const accessToken = jwt.sign(
            { sub: user.id, email: user.email, username: user.username, plan: user.plan, type: 'access' },
            process.env.JWT_SECRET,
            { expiresIn: ACCESS_TOKEN_EXPIRY }
        );

        const refreshToken = jwt.sign(
            { sub: user.id, type: 'refresh', jti: uuidv4() },
            process.env.JWT_REFRESH_SECRET,
            { expiresIn: REFRESH_TOKEN_EXPIRY }
        );

        return { accessToken, refreshToken };
    }

    /**
     * 刷新令牌
     */
    async refreshAccessToken(refreshToken) {
        try {
            const decoded = jwt.verify(refreshToken, process.env.JWT_REFRESH_SECRET);
            const sessionKey = `session:${decoded.sub}:${decoded.jti}`;
            const session = await redisClient.get(sessionKey);

            if (!session) {
                throw new AppError('INVALID_REFRESH_TOKEN', '刷新令牌已失效');
            }

            const result = await pool.query('SELECT * FROM users WHERE id = $1', [decoded.sub]);
            const user = result.rows[0];

            if (!user || !user.is_verified) {
                throw new AppError('USER_NOT_FOUND', '用户不存在或未验证');
            }

            const tokens = await this.generateTokens(user);
            await redisClient.setex(sessionKey, 7 * 24 * 60 * 60, tokens.refreshToken);

            return tokens;

        } catch (error) {
            if (error.name === 'JsonWebTokenError') {
                throw new AppError('INVALID_REFRESH_TOKEN', '刷新令牌无效');
            }
            throw error;
        }
    }

    /**
     * 验证邮箱
     */
    async verifyEmail(token) {
        const result = await pool.query(
            'SELECT id, verification_token FROM users WHERE verification_token = $1',
            [token]
        );

        if (result.rows.length === 0) {
            throw new AppError('INVALID_TOKEN', '验证链接无效或已过期');
        }

        await pool.query(
            'UPDATE users SET is_verified = true, verification_token = NULL WHERE id = $1',
            [result.rows[0].id]
        );

        return true;
    }

    /**
     * 验证访问令牌
     */
    async verifyAccessToken(token) {
        try {
            const decoded = jwt.verify(token, process.env.JWT_SECRET);

            if (decoded.type !== 'access') {
                throw new AppError('INVALID_TOKEN_TYPE', '令牌类型无效');
            }

            const result = await pool.query(
                'SELECT id, is_active FROM users WHERE id = $1',
                [decoded.sub]
            );

            if (result.rows.length === 0 || !result.rows[0].is_active) {
                throw new AppError('USER_DISABLED', '用户已被禁用');
            }

            return decoded;

        } catch (error) {
            if (error.name === 'TokenExpiredError') {
                throw new AppError('TOKEN_EXPIRED', '访问令牌已过期');
            }
            if (error.name === 'JsonWebTokenError') {
                throw new AppError('INVALID_TOKEN', '访问令牌无效');
            }
            throw error;
        }
    }

    /**
     * 创建会话
     */
    async createSession(userId, refreshToken) {
        const decoded = jwt.decode(refreshToken);
        const sessionKey = `session:${userId}:${decoded.jti}`;
        await redisClient.setex(sessionKey, 7 * 24 * 60 * 60, JSON.stringify({
            createdAt: Date.now(),
            userAgent: process.headers?.['user-agent']
        }));
    }

    /**
     * 记录失败登录
     */
    async recordFailedLogin(userId) {
        const key = `login_failed:${userId}`;
        const attempts = await redisClient.incr(key);

        if (attempts === 1) {
            await redisClient.expire(key, 15 * 60);
        }

        if (attempts >= 5) {
            await pool.query('UPDATE users SET is_locked = true WHERE id = $1', [userId]);
            setTimeout(async () => {
                await pool.query('UPDATE users SET is_locked = false, login_attempts = 0 WHERE id = $1', [userId]);
            }, 30 * 60 * 1000);
        }
    }

    /**
     * 重置失败登录计数
     */
    async resetFailedLogins(userId) {
        await redisClient.del(`login_failed:${userId}`);
        await pool.query('UPDATE users SET login_attempts = 0 WHERE id = $1', [userId]);
    }

    /**
     * 验证邮箱格式
     */
    isValidEmail(email) {
        const re = /^[^\s@]+@[^\s@]+\.[^\s@]+$/;
        return re.test(email);
    }

    /**
     * 验证密码强度
     */
    validatePasswordStrength(password) {
        if (password.length < 8) {
            throw new AppError('WEAK_PASSWORD', '密码长度至少为8个字符');
        }

        const hasUpperCase = /[A-Z]/.test(password);
        const hasLowerCase = /[a-z]/.test(password);
        const hasNumber = /[0-9]/.test(password);
        const hasSpecialChar = /[!@#$%^&*(),.?":{}|<>]/.test(password);

        const strength = [hasUpperCase, hasLowerCase, hasNumber, hasSpecialChar].filter(Boolean).length;

        if (strength < 3) {
            throw new AppError('WEAK_PASSWORD', '密码需包含大小写字母、数字和特殊字符中的至少三种');
        }
    }

    /**
     * 验证用户名格式
     */
    isValidUsername(username) {
        const re = /^[a-zA-Z0-9_]{3,20}$/;
        return re.test(username);
    }

    /**
     * 登出
     */
    async logout(userId, refreshToken) {
        try {
            const decoded = jwt.decode(refreshToken);
            if (decoded?.jti) {
                await redisClient.del(`session:${userId}:${decoded.jti}`);
            }
        } catch (error) {
            console.error('Logout error:', error);
        }
    }
}

module.exports = new AuthService();

3. 项目管理与文件系统

本节为你提供的核心技术价值:掌握Cloud IDE中项目创建、文件管理、版本控制的核心实现

3.1 项目数据模型

Cloud IDE中的项目对应Git仓库概念,包含代码文件、配置、环境定义。

代码语言:javascript
复制
// api-gateway/src/database/models/project.model.js - 项目数据模型
const { pool } = require('../postgres');

class ProjectModel {
    /**
     * 创建新项目
     */
    async create(projectData) {
        const { name, description, owner_id, template_id, visibility, git_url, default_branch } = projectData;

        const id = require('uuid').v4();

        const result = await pool.query(
            `INSERT INTO projects (
                id, name, description, owner_id, template_id, visibility,
                git_url, default_branch, created_at, updated_at
            ) VALUES ($1, $2, $3, $4, $5, $6, $7, $8, NOW(), NOW())
            RETURNING *`,
            [id, name, description, owner_id, template_id || null, visibility || 'private',
             git_url || null, default_branch || 'main']
        );

        await this.createDefaultDevfile(id, template_id);
        return result.rows[0];
    }

    /**
     * 创建默认.devfile配置
     */
    async createDefaultDevfile(projectId, templateId) {
        let devfileContent;

        if (templateId) {
            const template = await pool.query(
                'SELECT devfile FROM project_templates WHERE id = $1',
                [templateId]
            );
            devfileContent = template.rows[0]?.devfile;
        }

        if (!devfileContent) {
            devfileContent = {
                schemaVersion: '2.2.0',
                metadata: { name: 'default', version: '1.0.0' },
                components: [{
                    name: 'dev-environment',
                    container: {
                        image: 'ubuntu:latest',
                        mountSources: true,
                        command: ['sleep', 'infinity']
                    }
                }]
            };
        }

        await pool.query(
            `INSERT INTO project_files (project_id, path, content, is_directory, created_at)
             VALUES ($1, $2, $3, $4, NOW())`,
            [projectId, '/.devfile.json', JSON.stringify(devfileContent), false]
        );
    }

    /**
     * 获取用户可访问的项目列表
     */
    async listByUser(userId, options = {}) {
        const { page = 1, limit = 20, search, sortBy = 'updated_at', sortOrder = 'DESC' } = options;
        const offset = (page - 1) * limit;

        let query = `
            SELECT p.*, u.username as owner_username,
                   (SELECT COUNT(*) FROM project_members pm WHERE pm.project_id = p.id) as member_count
            FROM projects p
            LEFT JOIN users u ON p.owner_id = u.id
            WHERE (p.owner_id = $1 OR p.visibility = 'public'
                   OR EXISTS (SELECT 1 FROM project_members WHERE project_id = p.id AND user_id = $1))
        `;

        const params = [userId];
        let paramIndex = 2;

        if (search) {
            query += ` AND (p.name ILIKE $${paramIndex} OR p.description ILIKE $${paramIndex})`;
            params.push(`%${search}%`);
            paramIndex++;
        }

        const validSortColumns = ['created_at', 'updated_at', 'name'];
        const sortColumn = validSortColumns.includes(sortBy) ? sortBy : 'updated_at';
        const order = sortOrder.toUpperCase() === 'ASC' ? 'ASC' : 'DESC';

        query += ` ORDER BY p.${sortColumn} ${order} LIMIT $${paramIndex} OFFSET $${paramIndex + 1}`;
        params.push(limit, offset);

        return await pool.query(query, params);
    }

    /**
     * 获取项目详情
     */
    async getById(projectId, userId = null) {
        let query = `
            SELECT p.*, u.username as owner_username, u.avatar_url as owner_avatar
            FROM projects p
            LEFT JOIN users u ON p.owner_id = u.id
            WHERE p.id = $1
        `;

        const params = [projectId];

        if (userId) {
            query += ` AND (p.owner_id = $2 OR p.visibility = 'public'
                      OR EXISTS (SELECT 1 FROM project_members WHERE project_id = p.id AND user_id = $2))`;
            params.push(userId);
        }

        const result = await pool.query(query, params);

        if (result.rows.length === 0) {
            return null;
        }

        const project = result.rows[0];
        project.members = await this.getMembers(projectId);
        project.stats = await this.getStats(projectId);

        return project;
    }

    /**
     * 获取项目成员
     */
    async getMembers(projectId) {
        const result = await pool.query(
            `SELECT u.id, u.username, u.email, u.avatar_url, pm.role, pm.joined_at
             FROM project_members pm
             JOIN users u ON pm.user_id = u.id
             WHERE pm.project_id = $1 ORDER BY pm.joined_at`,
            [projectId]
        );
        return result.rows;
    }

    /**
     * 获取项目统计
     */
    async getStats(projectId) {
        const fileCount = await pool.query(
            'SELECT COUNT(*) FROM project_files WHERE project_id = $1',
            [projectId]
        );

        const executionCount = await pool.query(
            'SELECT COUNT(*) FROM code_executions WHERE project_id = $1',
            [projectId]
        );

        return {
            fileCount: parseInt(fileCount.rows[0].count),
            executionCount: parseInt(executionCount.rows[0].count)
        };
    }

    /**
     * 更新项目
     */
    async update(projectId, updateData) {
        const { name, description, visibility, devfile } = updateData;

        const updates = [];
        const params = [];
        let paramIndex = 1;

        if (name !== undefined) { updates.push(`name = $${paramIndex++}`); params.push(name); }
        if (description !== undefined) { updates.push(`description = $${paramIndex++}`); params.push(description); }
        if (visibility !== undefined) { updates.push(`visibility = $${paramIndex++}`); params.push(visibility); }
        if (devfile !== undefined) { updates.push(`devfile = $${paramIndex++}`); params.push(JSON.stringify(devfile)); }

        updates.push(`updated_at = NOW()`);
        params.push(projectId);

        const result = await pool.query(
            `UPDATE projects SET ${updates.join(', ')} WHERE id = $${paramIndex} RETURNING *`,
            params
        );

        return result.rows[0];
    }

    /**
     * 删除项目
     */
    async delete(projectId) {
        await pool.query('BEGIN');

        try {
            await pool.query('DELETE FROM project_files WHERE project_id = $1', [projectId]);
            await pool.query('DELETE FROM project_members WHERE project_id = $1', [projectId]);
            await pool.query('DELETE FROM code_executions WHERE project_id = $1', [projectId]);
            await pool.query('DELETE FROM project_invitations WHERE project_id = $1', [projectId]);
            await pool.query('DELETE FROM projects WHERE id = $1', [projectId]);

            await pool.query('COMMIT');
            return true;
        } catch (error) {
            await pool.query('ROLLBACK');
            throw error;
        }
    }

    /**
     * 添加项目成员
     */
    async addMember(projectId, userId, role = 'developer') {
        const result = await pool.query(
            `INSERT INTO project_members (project_id, user_id, role, joined_at)
             VALUES ($1, $2, $3, NOW())
             ON CONFLICT (project_id, user_id) DO UPDATE SET role = $3
             RETURNING *`,
            [projectId, userId, role]
        );
        return result.rows[0];
    }

    /**
     * 移除项目成员
     */
    async removeMember(projectId, userId) {
        await pool.query(
            'DELETE FROM project_members WHERE project_id = $1 AND user_id = $2',
            [projectId, userId]
        );
        return true;
    }

    /**
     * 检查用户权限
     */
    async checkPermission(projectId, userId, requiredRoles) {
        const project = await pool.query(
            'SELECT owner_id FROM projects WHERE id = $1',
            [projectId]
        );

        if (project.rows.length === 0) {
            return false;
        }

        if (project.rows[0].owner_id === userId) {
            return true;
        }

        if (requiredRoles.includes('member')) {
            const member = await pool.query(
                'SELECT role FROM project_members WHERE project_id = $1 AND user_id = $2',
                [projectId, userId]
            );

            if (member.rows.length === 0) {
                return false;
            }

            return requiredRoles.includes(member.rows[0].role);
        }

        return false;
    }
}

module.exports = new ProjectModel();
3.2 文件系统服务

Cloud IDE的虚拟文件系统在数据库中存储文件树结构,文件内容存储在对象存储中。

代码语言:javascript
复制
// api-gateway/src/services/filesystem.service.js - 文件系统服务
const { pool } = require('../database/postgres');
const { redisClient } = require('../database/redis');
const s3Service = require('./s3.service');
const path = require('path');
const { v4: uuidv4 } = require('uuid');
const { AppError } = require('../utils/errors');

class FilesystemService {
    /**
     * 获取项目文件树
     */
    async getFileTree(projectId) {
        const result = await pool.query(
            `SELECT id, path, name, is_directory, mime_type, size, created_at, updated_at
             FROM project_files
             WHERE project_id = $1
             ORDER BY is_directory DESC, name ASC`,
            [projectId]
        );

        return this.buildTree(result.rows);
    }

    /**
     * 构建文件树
     */
    buildTree(files) {
        const fileMap = new Map();
        const roots = [];

        files.forEach(file => {
            fileMap.set(file.path, {
                id: file.id,
                name: file.name,
                path: file.path,
                isDirectory: file.is_directory,
                mimeType: file.mime_type,
                size: file.size,
                children: [],
                createdAt: file.created_at,
                updatedAt: file.updated_at
            });
        });

        files.forEach(file => {
            const node = fileMap.get(file.path);
            const parentPath = path.dirname(file.path);

            if (parentPath === '/' || parentPath === '.') {
                roots.push(node);
            } else {
                const parent = fileMap.get(parentPath);
                if (parent) {
                    parent.children.push(node);
                } else {
                    roots.push(node);
                }
            }
        });

        return roots;
    }

    /**
     * 读取文件内容
     */
    async readFile(projectId, filePath) {
        const result = await pool.query(
            `SELECT * FROM project_files WHERE project_id = $1 AND path = $2`,
            [projectId, filePath]
        );

        if (result.rows.length === 0) {
            throw new AppError('FILE_NOT_FOUND', `文件不存在: ${filePath}`);
        }

        const file = result.rows[0];

        if (file.is_directory) {
            throw new AppError('IS_DIRECTORY', '该路径是目录,不是文件');
        }

        if (file.storage_path) {
            file.content = await s3Service.getFile(file.storage_path);
        }

        return file;
    }

    /**
     * 创建文件或目录
     */
    async createFile(projectId, filePath, options = {}) {
        const { content, isDirectory, mimeType } = options;

        const parentPath = path.dirname(filePath);
        if (parentPath !== '/' && parentPath !== '.') {
            const parentExists = await pool.query(
                'SELECT id FROM project_files WHERE project_id = $1 AND path = $2 AND is_directory = true',
                [projectId, parentPath]
            );

            if (parentExists.rows.length === 0) {
                throw new AppError('PARENT_NOT_FOUND', `父目录不存在: ${parentPath}`);
            }
        }

        const existing = await pool.query(
            'SELECT id FROM project_files WHERE project_id = $1 AND path = $2',
            [projectId, filePath]
        );

        if (existing.rows.length > 0) {
            throw new AppError('FILE_EXISTS', `文件已存在: ${filePath}`);
        }

        const id = uuidv4();
        const name = path.basename(filePath);
        let storagePath = null;
        let size = 0;

        if (!isDirectory && content && content.length > 1024 * 100) {
            storagePath = `projects/${projectId}/files/${id}`;
            await s3Service.uploadFile(storagePath, content);
            size = Buffer.byteLength(content, 'utf8');
            content = null;
        }

        const result = await pool.query(
            `INSERT INTO project_files (
                id, project_id, path, name, content, storage_path,
                is_directory, mime_type, size, created_at, updated_at
            ) VALUES ($1, $2, $3, $4, $5, $6, $7, $8, $9, NOW(), NOW())
            RETURNING *`,
            [id, projectId, filePath, name, isDirectory ? null : content,
             storagePath, isDirectory || false, mimeType || 'text/plain', size]
        );

        await redisClient.del(`file_tree:${projectId}`);
        return result.rows[0];
    }

    /**
     * 更新文件内容
     */
    async updateFile(projectId, filePath, content) {
        const file = await pool.query(
            'SELECT * FROM project_files WHERE project_id = $1 AND path = $2',
            [projectId, filePath]
        );

        if (file.rows.length === 0) {
            throw new AppError('FILE_NOT_FOUND', `文件不存在: ${filePath}`);
        }

        if (file.rows[0].is_directory) {
            throw new AppError('IS_DIRECTORY', '不能更新目录内容');
        }

        const fileRecord = file.rows[0];
        let storagePath = fileRecord.storage_path;
        let size = Buffer.byteLength(content, 'utf8');

        if (size > 1024 * 100) {
            storagePath = `projects/${projectId}/files/${fileRecord.id}`;
            await s3Service.uploadFile(storagePath, content);
            content = null;
        }

        const result = await pool.query(
            `UPDATE project_files SET content = $1, storage_path = $2, size = $3, updated_at = NOW()
             WHERE project_id = $4 AND path = $5 RETURNING *`,
            [content, storagePath, size, projectId, filePath]
        );

        await redisClient.del(`file_tree:${projectId}`);
        await redisClient.del(`file:${projectId}:${filePath}`);

        return result.rows[0];
    }

    /**
     * 删除文件或目录
     */
    async deleteFile(projectId, filePath) {
        const file = await pool.query(
            'SELECT * FROM project_files WHERE project_id = $1 AND path = $2',
            [projectId, filePath]
        );

        if (file.rows.length === 0) {
            throw new AppError('FILE_NOT_FOUND', `文件不存在: ${filePath}`);
        }

        const fileRecord = file.rows[0];

        if (fileRecord.is_directory) {
            await pool.query(
                'DELETE FROM project_files WHERE project_id = $1 AND path LIKE $2',
                [projectId, `${filePath}/%`]
            );
        }

        if (fileRecord.storage_path) {
            await s3Service.deleteFile(fileRecord.storage_path);
        }

        await pool.query(
            'DELETE FROM project_files WHERE project_id = $1 AND path = $2',
            [projectId, filePath]
        );

        await redisClient.del(`file_tree:${projectId}`);
        return true;
    }

    /**
     * 重命名文件
     */
    async renameFile(projectId, oldPath, newPath) {
        const file = await pool.query(
            'SELECT * FROM project_files WHERE project_id = $1 AND path = $2',
            [projectId, oldPath]
        );

        if (file.rows.length === 0) {
            throw new AppError('FILE_NOT_FOUND', `文件不存在: ${oldPath}`);
        }

        const fileRecord = file.rows[0];
        const newName = path.basename(newPath);

        if (fileRecord.is_directory) {
            const children = await pool.query(
                'SELECT path FROM project_files WHERE project_id = $1 AND path LIKE $2',
                [projectId, `${oldPath}/%`]
            );

            for (const child of children.rows) {
                const newChildPath = child.path.replace(oldPath, newPath);
                await pool.query(
                    'UPDATE project_files SET path = $1, name = $2 WHERE path = $3',
                    [newChildPath, path.basename(newChildPath), child.path]
                );
            }
        }

        const result = await pool.query(
            `UPDATE project_files SET path = $1, name = $2, updated_at = NOW()
             WHERE project_id = $3 AND path = $4 RETURNING *`,
            [newPath, newName, projectId, oldPath]
        );

        await redisClient.del(`file_tree:${projectId}`);
        return result.rows[0];
    }

    /**
     * 搜索文件内容
     */
    async searchFiles(projectId, query, options = {}) {
        const { fileTypes, caseSensitive } = options;

        let sqlQuery = `
            SELECT * FROM project_files
            WHERE project_id = $1 AND is_directory = false AND content IS NOT NULL
        `;

        const params = [projectId];
        let paramIndex = 2;

        if (caseSensitive) {
            sqlQuery += ` AND content LIKE $${paramIndex++}`;
        } else {
            sqlQuery += ` AND content ILIKE $${paramIndex++}`;
        }
        params.push(`%${query}%`);

        if (fileTypes && fileTypes.length > 0) {
            sqlQuery += ` AND mime_type = ANY($${paramIndex}::text[])`;
            params.push(fileTypes);
            paramIndex++;
        }

        const result = await pool.query(sqlQuery, params);

        return result.rows.filter(file => {
            const content = file.content || '';
            const pattern = caseSensitive ? query : query.toLowerCase();
            const searchContent = caseSensitive ? content : content.toLowerCase();

            const index = searchContent.indexOf(pattern);
            if (index === -1) return false;

            const start = Math.max(0, index - 50);
            const end = Math.min(content.length, index + query.length + 50);

            file.matchContext = content.substring(start, end);
            file.matchIndex = index - start;

            return true;
        });
    }
}

module.exports = new FilesystemService();

4. 代码编辑器核心实现

本节为你提供的核心技术价值:掌握基于Monaco Editor的云端代码编辑器实现

4.1 编辑器前端架构
代码语言:javascript
复制
// client/src/components/CloudIDE/Editor/CodeEditor.jsx - 代码编辑器主组件
import React, { useEffect, useRef, useState, useCallback } from 'react';
import * as monaco from 'monaco-editor';
import { editor as monacoEditor } from 'monaco-editor';
import editorWorker from 'monaco-editor/esm/vs/editor/editor.worker?worker';
import jsonWorker from 'monaco-editor/esm/vs/language/json/json.worker?worker';
import cssWorker from 'monaco-editor/esm/vs/language/css/css.worker?worker';
import htmlWorker from 'monaco-editor/esm/vs/language/html/html.worker?worker';
import tsWorker from 'monaco-editor/esm/vs/language/typescript/ts.worker?worker';
import { useCollaboration } from '../../hooks/useCollaboration';
import { useFileSystem } from '../../hooks/useFileSystem';
import { useAIAssist } from '../../hooks/useAIAssist';
import EditorToolbar from './EditorToolbar';
import EditorTabs from './EditorTabs';
import Minimap from './Minimap';
import StatusBar from './StatusBar';
import './CodeEditor.css';

// 配置Monaco Workers
self.MonacoEnvironment = {
    getWorker(_, label) {
        if (label === 'json') return new jsonWorker();
        if (label === 'css' || label === 'scss' || label === 'less') return new cssWorker();
        if (label === 'html' || label === 'handlebars' || label === 'razor') return new htmlWorker();
        if (label === 'typescript' || label === 'javascript') return new tsWorker();
        return new editorWorker();
    }
};

const CodeEditor = ({ projectId, filePath, onFileChange }) => {
    const containerRef = useRef(null);
    const editorRef = useRef(null);
    const decorationsRef = useRef([]);
    const [isLoading, setIsLoading] = useState(true);
    const [currentFile, setCurrentFile] = useState(null);
    const [isDirty, setIsDirty] = useState(false);

    const {
        isConnected, remoteUsers, remoteSelections,
        onRemoteOperation, sendOperation, updateCursorPosition
    } = useCollaboration(projectId, filePath);

    const { readFile, writeFile, subscribeToFile } = useFileSystem(projectId);

    const {
        suggestions, isGenerating, generateCompletion,
        acceptSuggestion, rejectSuggestion
    } = useAIAssist();

    // 初始化编辑器
    useEffect(() => {
        if (!containerRef.current) return;

        monaco.editor.defineTheme('cloudIDE-dark', {
            base: 'vs-dark',
            inherit: true,
            rules: [
                { token: 'comment', foreground: '6A9955', fontStyle: 'italic' },
                { token: 'keyword', foreground: '569CD6', fontStyle: 'bold' },
                { token: 'string', foreground: 'CE9178' },
                { token: 'number', foreground: 'B5CEA8' },
                { token: 'type', foreground: '4EC9B0' },
                { token: 'function', foreground: 'DCDCAA' },
                { token: 'variable', foreground: '9CDCFE' }
            ],
            colors: {
                'editor.background': '#1E1E1E',
                'editor.foreground': '#D4D4D4',
                'editor.lineHighlightBackground': '#2D2D30',
                'editor.selectionBackground': '#264F78',
                'editorCursor.foreground': '#AEAFAD'
            }
        });

        editorRef.current = monaco.editor.create(containerRef.current, {
            value: '',
            language: 'javascript',
            theme: 'cloudIDE-dark',
            fontSize: 14,
            fontFamily: "'JetBrains Mono', 'Fira Code', Consolas, monospace",
            fontLigatures: true,
            lineNumbers: 'on',
            renderLineHighlight: 'all',
            minimap: { enabled: true, maxColumn: 80, renderCharacters: false },
            scrollBeyondLastLine: false,
            smoothScrolling: true,
            cursorBlinking: 'smooth',
            cursorSmoothCaretAnimation: 'on',
            bracketPairColorization: { enabled: true },
            automaticLayout: true,
            tabSize: 4,
            insertSpaces: true,
            wordWrap: 'off',
            formatOnPaste: true,
            formatOnType: true,
            suggestOnTriggerCharacters: true,
            acceptSuggestionOnEnter: 'on',
            quickSuggestions: { other: true, comments: false, strings: true },
            parameterHints: { enabled: true, cycle: true },
            folding: true,
            foldingStrategy: 'indentation',
            showFoldingControls: 'mouseover',
            matchBrackets: 'always',
            autoClosingBrackets: 'always',
            autoClosingQuotes: 'always',
            autoIndent: 'full',
            dragAndDrop: true,
            linkedEditing: true,
            multiCursorModifier: 'ctrlCmd',
            accessibilitySupport: 'on'
        });

        editorRef.current.addCommand(
            monaco.KeyMod.CtrlCmd | monaco.KeyCode.KeyS,
            () => handleSave()
        );

        editorRef.current.addCommand(
            monaco.KeyMod.CtrlCmd | monaco.KeyCode.Shift | monaco.KeyCode.KeyP,
            () => editorRef.current.getAction('editor.action.quickCommand').run()
        );

        editorRef.current.onDidChangeModelContent((event) => {
            setIsDirty(true);
            event.changes.forEach(change => {
                const operation = {
                    type: change.text ? 'insert' : 'delete',
                    position: change.range.start,
                    endPosition: change.rangeEnd,
                    text: change.text,
                    timestamp: Date.now()
                };
                sendOperation(operation);
            });
            if (onFileChange) onFileChange(editorRef.current.getValue());
        });

        editorRef.current.onDidChangeCursorPosition((event) => {
            updateCursorPosition({
                lineNumber: event.position.lineNumber,
                column: event.position.column
            });
        });

        setIsLoading(false);

        return () => {
            if (editorRef.current) editorRef.current.dispose();
        };
    }, []);

    // 加载文件内容
    useEffect(() => {
        if (!filePath) return;

        const loadFile = async () => {
            setIsLoading(true);
            try {
                const file = await readFile(filePath);
                const language = getLanguageFromPath(filePath);
                monaco.editor.setModelLanguage(editorRef.current.getModel(), language);
                editorRef.current.setValue(file.content || '');
                setCurrentFile({ path: filePath, ...file });
                setIsDirty(false);
            } catch (error) {
                console.error('Failed to load file:', error);
            } finally {
                setIsLoading(false);
            }
        };

        loadFile();

        const unsubscribe = subscribeToFile(filePath, (newContent) => {
            if (!isDirty) editorRef.current.setValue(newContent);
        });

        return () => { if (unsubscribe) unsubscribe(); };
    }, [filePath]);

    // 保存文件
    const handleSave = useCallback(async () => {
        if (!currentFile || !isDirty) return;
        try {
            await writeFile(currentFile.path, editorRef.current.getValue());
            setIsDirty(false);
        } catch (error) {
            console.error('Failed to save file:', error);
        }
    }, [currentFile, isDirty, writeFile]);

    // 根据文件路径获取语言
    const getLanguageFromPath = (filePath) => {
        const ext = filePath.split('.').pop().toLowerCase();
        const languageMap = {
            'js': 'javascript', 'jsx': 'javascript',
            'ts': 'typescript', 'tsx': 'typescript',
            'json': 'json', 'html': 'html', 'css': 'css',
            'scss': 'scss', 'less': 'less', 'py': 'python',
            'java': 'java', 'go': 'go', 'rs': 'rust',
            'rb': 'ruby', 'php': 'php', 'sql': 'sql',
            'sh': 'shell', 'bash': 'shell', 'md': 'markdown',
            'yaml': 'yaml', 'yml': 'yaml', 'xml': 'xml',
            'vue': 'html', 'svelte': 'html'
        };
        return languageMap[ext] || 'plaintext';
    };

    return (
        <div className="code-editor">
            <EditorToolbar
                onSave={handleSave}
                onFormat={() => editorRef.current?.getAction('editor.action.formatDocument').run()}
                onFind={() => editorRef.current?.getAction('actions.find').run()}
                onReplace={() => editorRef.current?.getAction('editor.action.startFindReplaceAction').run()}
                isDirty={isDirty}
            />
            <EditorTabs
                files={[currentFile]}
                activeFile={currentFile?.path}
                onSelectFile={(path) => {}}
                onCloseFile={(path) => {}}
            />
            <div className="editor-container" ref={containerRef}>
                {isLoading && (
                    <div className="editor-loading">
                        <div className="spinner"></div>
                        <span>加载中...</span>
                    </div>
                )}
            </div>
            <StatusBar
                language={currentFile ? getLanguageFromPath(currentFile.path) : 'plaintext'}
                line={editorRef.current?.getPosition()?.lineNumber || 1}
                column={editorRef.current?.getPosition()?.column || 1}
                isConnected={isConnected}
                remoteUsers={remoteUsers}
            />
        </div>
    );
};

export default CodeEditor;
4.2 编辑器样式
代码语言:javascript
复制
/* client/src/components/CloudIDE/Editor/CodeEditor.css - 编辑器样式 */
.code-editor {
    display: flex;
    flex-direction: column;
    height: 100%;
    background: #1E1E1E;
    color: #D4D4D4;
}

.editor-container {
    flex: 1;
    position: relative;
    overflow: hidden;
}

.editor-loading {
    position: absolute;
    top: 0;
    left: 0;
    right: 0;
    bottom: 0;
    display: flex;
    flex-direction: column;
    align-items: center;
    justify-content: center;
    background: rgba(30, 30, 30, 0.9);
    z-index: 100;
}

.spinner {
    width: 40px;
    height: 40px;
    border: 3px solid #404040;
    border-top-color: #569CD6;
    border-radius: 50%;
    animation: spin 1s linear infinite;
}

@keyframes spin { to { transform: rotate(360deg); } }

.remote-selection-1 { background: rgba(255, 107, 107, 0.2); }
.remote-selection-2 { background: rgba(78, 205, 196, 0.2); }
.remote-selection-3 { background: rgba(69, 183, 209, 0.2); }
.remote-selection-4 { background: rgba(150, 206, 180, 0.2); }
.remote-selection-5 { background: rgba(255, 234, 167, 0.2); }

.editor-toolbar {
    display: flex;
    align-items: center;
    padding: 8px 12px;
    background: #252526;
    border-bottom: 1px solid #3C3C3C;
    gap: 8px;
}

.editor-toolbar button {
    display: flex;
    align-items: center;
    justify-content: center;
    padding: 6px 12px;
    background: #3C3C3C;
    border: none;
    border-radius: 4px;
    color: #CCCCCC;
    font-size: 12px;
    cursor: pointer;
    transition: all 0.15s ease;
}

.editor-toolbar button:hover { background: #505050; }
.editor-toolbar button:active { background: #606060; }

.editor-tabs {
    display: flex;
    background: #252526;
    border-bottom: 1px solid #3C3C3C;
    overflow-x: auto;
}

.editor-tab {
    display: flex;
    align-items: center;
    padding: 8px 16px;
    background: #2D2D2D;
    border-right: 1px solid #3C3C3C;
    color: #CCCCCC;
    font-size: 13px;
    cursor: pointer;
    transition: all 0.15s ease;
    white-space: nowrap;
}

.editor-tab:hover { background: #333333; }
.editor-tab.active { background: #1E1E1E; border-bottom: 2px solid #569CD6; }

.editor-statusbar {
    display: flex;
    align-items: center;
    justify-content: space-between;
    padding: 4px 12px;
    background: #007ACC;
    color: #FFFFFF;
    font-size: 12px;
}

.statusbar-left, .statusbar-right {
    display: flex;
    align-items: center;
    gap: 16px;
}

.remote-user-avatar {
    width: 20px;
    height: 20px;
    border-radius: 50%;
    background: #FF6B6B;
    display: flex;
    align-items: center;
    justify-content: center;
    font-size: 10px;
    color: white;
}

5. 实时协作与WebSocket通信

本节为你提供的核心技术价值:掌握Cloud IDE中实时协作的核心实现,包括WebSocket通信、OT算法、在线状态管理

5.1 WebSocket服务器架构
代码语言:javascript
复制
// api-gateway/src/socket/index.js - WebSocket服务器核心实现
const jwt = require('jsonwebtoken');
const { v4: uuidv4 } = require('uuid');
const { redisClient, redisSub } = require('../database/redis');
const { pool } = require('../database/postgres');
const OTEngine = require('./ot-engine');
const PresenceManager = require('./presence-manager');

class SocketHandler {
    constructor() {
        this.io = null;
        this.rooms = new Map();
        this.userSockets = new Map();
        this.socketUsers = new Map();
        this.otEngines = new Map();
        this.presenceManager = null;
    }

    initialize(io) {
        this.io = io;
        this.presenceManager = new PresenceManager(io);

        io.use(async (socket, next) => {
            try {
                await this.authenticateSocket(socket);
                next();
            } catch (error) {
                next(new Error('Authentication error'));
            }
        });

        io.on('connection', (socket) => {
            console.log(`Socket connected: ${socket.id}, User: ${socket.user.id}`);
            this.registerUserSocket(socket);
            this.setupHeartbeat(socket);

            socket.on('join-project', (data) => this.handleJoinProject(socket, data));
            socket.on('leave-project', (data) => this.handleLeaveProject(socket, data));
            socket.on('file-operation', (data) => this.handleFileOperation(socket, data));
            socket.on('cursor-update', (data) => this.handleCursorUpdate(socket, data));
            socket.on('selection-update', (data) => this.handleSelectionUpdate(socket, data));
            socket.on('terminal-output', (data) => this.handleTerminalOutput(socket, data));
            socket.on('chat-message', (data) => this.handleChatMessage(socket, data));
            socket.on('ai-request', (data) => this.handleAIRequest(socket, data));
            socket.on('disconnect', (reason) => this.handleDisconnect(socket, reason));
        });

        this.setupRedisSubscription();
    }

    async authenticateSocket(socket) {
        const token = socket.handshake.auth.token || socket.handshake.query.token;

        if (!token) throw new Error('No token provided');

        const decoded = jwt.verify(token, process.env.JWT_SECRET);
        const result = await pool.query(
            'SELECT id, username, email, avatar_url FROM users WHERE id = $1',
            [decoded.sub]
        );

        if (result.rows.length === 0) throw new Error('User not found');
        socket.user = result.rows[0];
    }

    registerUserSocket(socket) {
        const { id: userId } = socket.user;
        if (!this.userSockets.has(userId)) this.userSockets.set(userId, new Set());
        this.userSockets.get(userId).add(socket.id);
        this.socketUsers.set(socket.id, socket.user);
    }

    setupHeartbeat(socket) {
        socket.emit('heartbeat', { timestamp: Date.now() });

        socket.on('heartbeat-ack', () => { socket.lastHeartbeat = Date.now(); });

        const heartbeatInterval = setInterval(() => {
            if (socket.lastHeartbeat && Date.now() - socket.lastHeartbeat > 30000) {
                socket.disconnect(true);
            }
        }, 10000);

        socket.on('disconnect', () => clearInterval(heartbeatInterval));
    }

    async handleJoinProject(socket, { projectId, filePath }) {
        const roomId = `${projectId}:${filePath}`;

        await socket.join(roomId);

        if (!this.rooms.has(roomId)) this.rooms.set(roomId, new Set());
        this.rooms.get(roomId).add(socket.id);

        if (!this.otEngines.has(roomId)) this.otEngines.set(roomId, new OTEngine(roomId));

        const onlineUsers = this.presenceManager.getRoomPresence(roomId);
        const otEngine = this.otEngines.get(roomId);

        socket.emit('join-success', {
            roomId,
            documentState: otEngine.getDocumentState(),
            revision: otEngine.getRevision(),
            onlineUsers
        });

        socket.to(roomId).emit('user-joined', {
            user: socket.user,
            socketId: socket.id,
            timestamp: Date.now()
        });

        this.presenceManager.updatePresence(roomId, socket.user.id, {
            socketId: socket.id,
            username: socket.user.username,
            avatarUrl: socket.user.avatar_url,
            cursor: null,
            selection: null,
            lastActivity: Date.now()
        });

        socket.data.roomId = roomId;
        socket.data.projectId = projectId;
        socket.data.filePath = filePath;
    }

    async handleLeaveProject(socket, { projectId, filePath }) {
        const roomId = `${projectId}:${filePath}`;

        await socket.leave(roomId);

        if (this.rooms.has(roomId)) {
            this.rooms.get(roomId).delete(socket.id);
            if (this.rooms.get(roomId).size === 0) {
                this.rooms.delete(roomId);
                await this.saveDocumentState(roomId);
                this.otEngines.delete(roomId);
            }
        }

        socket.to(roomId).emit('user-left', {
            user: socket.user,
            socketId: socket.id,
            timestamp: Date.now()
        });

        this.presenceManager.removePresence(roomId, socket.user.id);
        socket.data.roomId = null;
        socket.data.projectId = null;
        socket.data.filePath = null;
    }

    handleFileOperation(socket, operation) {
        const { roomId } = socket.data;
        if (!roomId) return;

        const otEngine = this.otEngines.get(roomId);
        if (!otEngine) return;

        operation.serverTimestamp = Date.now();
        operation.clientId = socket.id;
        operation.userId = socket.user.id;

        try {
            const transformedOp = otEngine.applyOperation(operation);

            if (transformedOp) {
                socket.to(roomId).emit('remote-operation', {
                    ...transformedOp,
                    userId: socket.user.id,
                    username: socket.user.username
                });

                socket.emit('operation-ack', {
                    clientId: operation.clientId,
                    revision: otEngine.getRevision()
                });
            }
        } catch (error) {
            console.error('OT operation error:', error);
            socket.emit('operation-error', {
                clientId: operation.clientId,
                error: error.message
            });
        }
    }

    handleCursorUpdate(socket, { lineNumber, column }) {
        const { roomId } = socket.data;
        if (!roomId) return;

        socket.to(roomId).emit('remote-cursor', {
            userId: socket.user.id,
            username: socket.user.username,
            lineNumber,
            column,
            timestamp: Date.now()
        });

        this.presenceManager.updatePresence(roomId, socket.user.id, {
            cursor: { lineNumber, column }
        });
    }

    handleSelectionUpdate(socket, { startLineNumber, startColumn, endLineNumber, endColumn }) {
        const { roomId } = socket.data;
        if (!roomId) return;

        socket.to(roomId).emit('remote-selection', {
            userId: socket.user.id,
            username: socket.user.username,
            selection: { startLineNumber, startColumn, endLineNumber, endColumn },
            timestamp: Date.now()
        });

        this.presenceManager.updatePresence(roomId, socket.user.id, {
            selection: { startLineNumber, startColumn, endLineNumber, endColumn }
        });
    }

    handleTerminalOutput(socket, { terminalId, data, type }) {
        const { roomId } = socket.data;
        if (!roomId) return;

        socket.to(roomId).emit('remote-terminal', {
            terminalId, data, type,
            userId: socket.user.id,
            username: socket.user.username
        });
    }

    async handleChatMessage(socket, { projectId, message }) {
        const chatMessage = {
            id: uuidv4(),
            projectId,
            userId: socket.user.id,
            username: socket.user.username,
            avatarUrl: socket.user.avatar_url,
            content: message,
            timestamp: Date.now()
        };

        await pool.query(
            `INSERT INTO project_messages (id, project_id, user_id, content, created_at)
             VALUES ($1, $2, $3, $4, $5)`,
            [chatMessage.id, projectId, socket.user.id, message, new Date(chatMessage.timestamp)]
        );

        this.io.to(`project:${projectId}`).emit('chat-message', chatMessage);
    }

    async handleAIRequest(socket, { requestId, type, prompt, context }) {
        try {
            const aiService = require('../services/ai.service');
            const response = await aiService.generate({
                type, prompt, context,
                projectId: socket.data.projectId,
                userId: socket.user.id
            });

            socket.emit('ai-response', { requestId, success: true, data: response });

            if (response.stream) {
                for await (const chunk of response.stream) {
                    socket.emit('ai-stream', { requestId, chunk });
                }
                socket.emit('ai-stream-end', { requestId });
            }
        } catch (error) {
            socket.emit('ai-response', { requestId, success: false, error: error.message });
        }
    }

    async handleDisconnect(socket, reason) {
        const { roomId } = socket.data;

        if (roomId) {
            socket.to(roomId).emit('user-left', {
                user: socket.user,
                socketId: socket.id,
                timestamp: Date.now()
            });

            this.presenceManager.removePresence(roomId, socket.user.id);

            if (this.rooms.has(roomId)) {
                this.rooms.get(roomId).delete(socket.id);
                if (this.rooms.get(roomId).size === 0) await this.saveDocumentState(roomId);
            }
        }

        if (this.userSockets.has(socket.user.id)) {
            this.userSockets.get(socket.user.id).delete(socket.id);
            if (this.userSockets.get(socket.user.id).size === 0) {
                this.userSockets.delete(socket.user.id);
            }
        }
        this.socketUsers.delete(socket.id);
    }

    setupRedisSubscription() {
        redisSub.subscribe('cloud-ide:events', (err) => {
            if (err) console.error('Redis subscribe error:', err);
        });

        redisSub.on('message', (channel, message) => {
            if (channel === 'cloud-ide:events') {
                const event = JSON.parse(message);
                this.handleRedisEvent(event);
            }
        });
    }

    handleRedisEvent(event) {
        const { type, roomId, data } = event;

        switch (type) {
            case 'broadcast-operation':
                this.io.to(roomId).emit('remote-operation', data);
                break;
            case 'user-joined':
                this.io.to(roomId).emit('user-joined', data);
                break;
            case 'user-left':
                this.io.to(roomId).emit('user-left', data);
                break;
        }
    }

    async saveDocumentState(roomId) {
        const otEngine = this.otEngines.get(roomId);
        if (!otEngine) return;

        const state = otEngine.getDocumentState();
        const [projectId, filePath] = roomId.split(':');

        await pool.query(
            `UPDATE project_files SET content = $1, updated_at = NOW()
             WHERE project_id = $2 AND path = $3`,
            [state.content, projectId, filePath]
        );

        await redisClient.del(`file:${projectId}:${filePath}`);
    }
}

module.exports = new SocketHandler();
5.2 OT(操作转换)引擎

OT算法是实时协作编辑的核心,确保多个用户同时编辑时最终结果一致。

代码语言:javascript
复制
// api-gateway/src/socket/ot-engine.js - OT引擎实现

const OperationType = {
    INSERT: 'insert',
    DELETE: 'delete',
    RETAIN: 'retain'
};

class Operation {
    constructor(type, position, text, length = 0) {
        this.type = type;
        this.position = position;
        this.text = text;
        this.length = length;
        this.userId = null;
        this.clientId = null;
        this.timestamp = Date.now();
    }

    static fromJSON(json) {
        const op = new Operation(json.type, json.position, json.text, json.length);
        op.userId = json.userId;
        op.clientId = json.clientId;
        op.timestamp = json.timestamp;
        return op;
    }

    toJSON() {
        return {
            type: this.type, position: this.position, text: this.text,
            length: this.length, userId: this.userId, clientId: this.clientId,
            timestamp: this.timestamp
        };
    }
}

class OTEngine {
    constructor(roomId) {
        this.roomId = roomId;
        this.document = '';
        this.revision = 0;
        this.pendingOps = [];
        this.history = [];
        this.clients = new Map();
        this.MAX_HISTORY = 1000;
    }

    initialize(content = '') {
        this.document = content;
        this.revision = 0;
        this.history = [];
    }

    applyOperation(operation) {
        const op = operation instanceof Operation ? operation : Operation.fromJSON(operation);

        if (!this.validateOperation(op)) {
            throw new Error('Invalid operation');
        }

        const transformedOp = this.transform(op);
        this.applyToDocument(transformedOp);
        this.revision++;
        this.history.push(transformedOp);

        if (this.history.length > this.MAX_HISTORY) this.history.shift();

        return { ...transformedOp, revision: this.revision };
    }

    validateOperation(op) {
        if (op.type === OperationType.INSERT) {
            return op.position >= 0 && op.position <= this.document.length;
        }
        if (op.type === OperationType.DELETE) {
            return op.position >= 0 &&
                   op.position + op.length <= this.document.length && op.length > 0;
        }
        return false;
    }

    transform(op1, op2) {
        if (!this.operationsOverlap(op1, op2)) return op1;

        if (op1.type === OperationType.INSERT && op2.type === OperationType.INSERT) {
            return this.transformInsertInsert(op1, op2);
        }
        if (op1.type === OperationType.INSERT && op2.type === OperationType.DELETE) {
            return this.transformInsertDelete(op1, op2);
        }
        if (op1.type === OperationType.DELETE && op2.type === OperationType.INSERT) {
            return this.transformDeleteInsert(op1, op2);
        }
        if (op1.type === OperationType.DELETE && op2.type === OperationType.DELETE) {
            return this.transformDeleteDelete(op1, op2);
        }
        return op1;
    }

    transformInsertInsert(op1, op2) {
        const transformed = new Operation(op1.type, op1.position, op1.text, op1.length);

        if (op1.position > op2.position) {
            transformed.position += op2.text.length;
        } else if (op1.position === op2.position) {
            if (op1.userId > op2.userId) transformed.position += op2.text.length;
        }

        return transformed;
    }

    transformInsertDelete(op1, op2) {
        const transformed = new Operation(op1.type, op1.position, op1.text, op1.length);

        if (op1.position > op2.position) {
            if (op1.position >= op2.position + op2.length) {
                transformed.position -= op2.length;
            } else {
                transformed.position = op2.position;
            }
        }

        return transformed;
    }

    transformDeleteInsert(op1, op2) {
        const transformed = new Operation(op1.type, op1.position, op1.text, op1.length);

        if (op2.position >= op1.position + op1.length) {
            transformed.position += op2.text.length;
        } else if (op2.position >= op1.position) {
            transformed.length += op2.text.length;
        }

        return transformed;
    }

    transformDeleteDelete(op1, op2) {
        const transformed = new Operation(op1.type, op1.position, op1.text, op1.length);

        const op1End = op1.position + op1.length;
        const op2End = op2.position + op2.length;

        if (op1End <= op2.position) return transformed;
        if (op2End <= op1.position) {
            transformed.position -= op2.length;
            return transformed;
        }

        const overlapStart = Math.max(op1.position, op2.position);
        const overlapEnd = Math.min(op1End, op2End);
        const overlapLength = overlapEnd - overlapStart;

        if (op1.position < op2.position) {
            transformed.length -= overlapLength;
        } else if (op1.position > op2.position) {
            transformed.position = op2.position;
            transformed.length -= overlapLength;
        } else {
            transformed.length = Math.max(op1.length, op2.length) - overlapLength;
            if (transformed.length <= 0) return null;
        }

        return transformed;
    }

    operationsOverlap(op1, op2) {
        if (op1.type === OperationType.INSERT && op2.type === OperationType.INSERT) {
            return Math.abs(op1.position - op2.position) <
                   Math.max(op1.text?.length || 0, op2.text?.length || 0);
        }
        if (op1.type === OperationType.DELETE && op2.type === OperationType.DELETE) {
            const op1End = op1.position + op1.length;
            const op2End = op2.position + op2.length;
            return !(op1End <= op2.position || op2End <= op1.position);
        }
        if (op1.type === OperationType.INSERT && op2.type === OperationType.DELETE) {
            return op1.position >= op2.position && op1.position <= op2.position + op2.length;
        }
        if (op1.type === OperationType.DELETE && op2.type === OperationType.INSERT) {
            return op2.position >= op1.position && op2.position <= op1.position + op1.length;
        }
        return false;
    }

    applyToDocument(op) {
        switch (op.type) {
            case OperationType.INSERT:
                this.document = this.document.slice(0, op.position) +
                               op.text + this.document.slice(op.position);
                break;
            case OperationType.DELETE:
                this.document = this.document.slice(0, op.position) +
                               this.document.slice(op.position + op.length);
                break;
        }
    }

    getDocumentState() { return { content: this.document, revision: this.revision }; }
    getRevision() { return this.revision; }
    registerClient(clientId, revision = 0) {
        this.clients.set(clientId, { revision, pendingOps: [] });
    }
    removeClient(clientId) { this.clients.delete(clientId); }
    getState() {
        return {
            roomId: this.roomId, revision: this.revision,
            documentLength: this.document.length,
            connectedClients: this.clients.size
        };
    }
}

module.exports = OTEngine;
module.exports.Operation = Operation;
module.exports.OperationType = OperationType;
5.3 在线状态管理
代码语言:javascript
复制
// api-gateway/src/socket/presence-manager.js - 在线状态管理器

const { redisClient } = require('../database/redis');

class PresenceManager {
    constructor(io) {
        this.io = io;
        this.presence = new Map();
        this.heartbeatInterval = null;
        this.startHeartbeatCheck();
    }

    updatePresence(roomId, userId, data) {
        if (!this.presence.has(roomId)) this.presence.set(roomId, new Map());

        const roomPresence = this.presence.get(roomId);
        const existingData = roomPresence.get(userId) || {};

        const presenceData = {
            ...existingData, ...data, lastActivity: Date.now(), isOnline: true
        };

        roomPresence.set(userId, presenceData);
        this.syncToRedis(roomId, userId, presenceData);
    }

    removePresence(roomId, userId) {
        if (this.presence.has(roomId)) {
            this.presence.get(roomId).delete(userId);
            this.removeFromRedis(roomId, userId);
            this.broadcastPresenceUpdate(roomId);
        }
    }

    getRoomPresence(roomId) {
        if (!this.presence.has(roomId)) return [];
        return Array.from(this.presence.get(roomId).values());
    }

    getUserPresence(roomId, userId) {
        if (!this.presence.has(roomId)) return null;
        return this.presence.get(roomId).get(userId);
    }

    async syncToRedis(roomId, userId, data) {
        const key = `presence:${roomId}:${userId}`;
        await redisClient.setex(key, 300, JSON.stringify(data));
    }

    async removeFromRedis(roomId, userId) {
        const key = `presence:${roomId}:${userId}`;
        await redisClient.del(key);
    }

    async loadFromRedis(roomId) {
        const pattern = `presence:${roomId}:*`;
        const keys = await redisClient.keys(pattern);
        const presence = new Map();

        for (const key of keys) {
            const data = await redisClient.get(key);
            if (data) {
                const userId = key.split(':')[2];
                presence.set(userId, JSON.parse(data));
            }
        }

        return presence;
    }

    broadcastPresenceUpdate(roomId) {
        if (!this.presence.has(roomId)) {
            this.io.to(roomId).emit('presence-update', []);
            return;
        }
        const users = Array.from(this.presence.get(roomId).values());
        this.io.to(roomId).emit('presence-update', users);
    }

    startHeartbeatCheck() {
        this.heartbeatInterval = setInterval(() => {
            const now = Date.now();
            const timeout = 60000;

            this.presence.forEach((roomPresence, roomId) => {
                roomPresence.forEach((data, userId) => {
                    if (data.lastActivity && now - data.lastActivity > timeout) {
                        this.handleUserTimeout(roomId, userId);
                    }
                });
            });
        }, 30000);
    }

    handleUserTimeout(roomId, userId) {
        this.updatePresence(roomId, userId, { isOnline: false });
        this.io.to(roomId).emit('user-offline', { userId, timestamp: Date.now() });
    }

    cleanup() {
        if (this.heartbeatInterval) clearInterval(this.heartbeatInterval);
    }
}

module.exports = PresenceManager;

6. AI能力集成

本节为你提供的核心技术价值:掌握Cloud IDE中AI辅助编程能力的设计与实现

6.1 AI服务架构
代码语言:javascript
复制
// api-gateway/src/services/ai.service.js - AI服务核心实现
const { pool } = require('../database/postgres');
const { redisClient } = require('../database/redis');
const OpenAI = require('openai');
const { v4: uuidv4 } = require('uuid');
const { AppError } = require('../utils/errors');

const openai = new OpenAI({ apiKey: process.env.OPENAI_API_KEY });

const AICapabilityType = {
    CODE_COMPLETION: 'code_completion',
    CODE_EXPLANATION: 'code_explanation',
    ERROR_DIAGNOSIS: 'error_diagnosis',
    CODE_REFACTOR: 'code_refactor',
    UNIT_TEST: 'unit_test',
    CODE_TRANSLATION: 'code_translation',
    DOC_GENERATION: 'doc_generation',
    CHAT: 'chat'
};

const PROMPT_TEMPLATES = {
    [AICapabilityType.CODE_COMPLETION]: `请根据以下代码上下文,补全代码。直接输出补全的代码,不要包含解释。

文件路径: {{filePath}}
编程语言: {{language}}

代码上下文:
{{context}}

请补全:
{{incompleteCode}}`,

    [AICapabilityType.CODE_EXPLANATION]: `请解释以下代码的功能。提供简洁但全面的说明。

文件路径: {{filePath}}
编程语言: {{language}}

代码:
{{code}}`,

    [AICapabilityType.ERROR_DIAGNOSIS]: `请诊断以下代码中的错误。提供错误类型、位置和修复建议。

文件路径: {{filePath}}
编程语言: {{language}}
错误信息: {{errorMessage}}

代码:
{{code}}`
};

class AIService {
    constructor() { this.rateLimits = new Map(); }

    async generate(params) {
        const { type, prompt, context, projectId, userId } = params;
        await this.checkUserQuota(userId, type);

        const fullPrompt = this.buildPrompt(type, { ...context, customPrompt: prompt });
        const projectContext = await this.getProjectContext(projectId, context?.filePath);

        const response = await this.callOpenAI({ prompt: fullPrompt, context: projectContext, type });
        await this.recordUsage(userId, projectId, type);

        return response;
    }

    async *streamGenerate(params) {
        const { type, prompt, context, projectId, userId } = params;
        await this.checkUserQuota(userId, type);

        const fullPrompt = this.buildPrompt(type, { ...context, customPrompt: prompt });
        const projectContext = await this.getProjectContext(projectId, context?.filePath);

        const stream = await this.callOpenAIStream({ prompt: fullPrompt, context: projectContext, type });
        await this.recordUsage(userId, projectId, type);

        for await (const chunk of stream) yield chunk;
    }

    buildPrompt(type, context) {
        let template = PROMPT_TEMPLATES[type];
        if (!template) return context.customPrompt || '';

        Object.entries(context).forEach(([key, value]) => {
            template = template.replace(new RegExp(`{{${key}}}`, 'g'), value || '');
        });

        return template;
    }

    async getProjectContext(projectId, filePath) {
        if (!projectId) return '';

        const filesResult = await pool.query(
            `SELECT path, name, is_directory FROM project_files
             WHERE project_id = $1 AND is_directory = false
             ORDER BY updated_at DESC LIMIT 20`,
            [projectId]
        );

        let currentFileContent = '';
        if (filePath) {
            const fileResult = await pool.query(
                'SELECT content FROM project_files WHERE project_id = $1 AND path = $2',
                [projectId, filePath]
            );
            if (fileResult.rows.length > 0) currentFileContent = fileResult.rows[0].content;
        }

        return { projectFiles: filesResult.rows.map(f => f.path).join('\n'), currentFileContent };
    }

    async callOpenAI({ prompt, context, type }) {
        const systemMessage = this.getSystemMessage(type);

        const messages = [{ role: 'system', content: systemMessage }];

        if (context?.projectFiles) {
            messages.push({ role: 'system', content: `项目文件列表:\n${context.projectFiles}` });
        }
        if (context?.currentFileContent) {
            messages.push({ role: 'system', content: `当前文件内容:\n${context.currentFileContent}` });
        }

        messages.push({ role: 'user', content: prompt });

        try {
            const completion = await openai.chat.completions.create({
                model: this.getModelForType(type),
                messages,
                temperature: this.getTemperatureForType(type),
                max_tokens: this.getMaxTokensForType(type)
            });

            return {
                content: completion.choices[0].message.content,
                usage: completion.usage,
                model: completion.model
            };
        } catch (error) {
            throw new AppError('AI_SERVICE_ERROR', 'AI服务暂时不可用');
        }
    }

    async callOpenAIStream({ prompt, context, type }) {
        const systemMessage = this.getSystemMessage(type);
        const messages = [{ role: 'system', content: systemMessage }];

        if (context?.projectFiles) messages.push({ role: 'system', content: `项目文件:\n${context.projectFiles}` });
        if (context?.currentFileContent) messages.push({ role: 'system', content: `当前文件:\n${context.currentFileContent}` });
        messages.push({ role: 'user', content: prompt });

        return await openai.chat.completions.create({
            model: this.getModelForType(type),
            messages,
            temperature: this.getTemperatureForType(type),
            max_tokens: this.getMaxTokensForType(type),
            stream: true
        });
    }

    getSystemMessage(type) {
        const messages = {
            [AICapabilityType.CODE_COMPLETION]: '你是一个专业的代码补全助手。直接输出代码,不要包含解释。',
            [AICapabilityType.CODE_EXPLANATION]: '你是一个耐心的代码解释助手。用简洁清晰的语言解释代码功能。',
            [AICapabilityType.ERROR_DIAGNOSIS]: '你是一个经验丰富的代码调试专家。准确诊断错误并提供修复建议。',
            [AICapabilityType.CHAT]: '你是一个友好的编程助手。'
        };
        return messages[type] || messages[AICapabilityType.CHAT];
    }

    getModelForType(type) {
        return type === AICapabilityType.CODE_COMPLETION ? 'gpt-4' : 'gpt-4o';
    }

    getTemperatureForType(type) {
        const temps = {
            [AICapabilityType.CODE_COMPLETION]: 0.3,
            [AICapabilityType.CODE_EXPLANATION]: 0.5,
            [AICapabilityType.ERROR_DIAGNOSIS]: 0.2,
            [AICapabilityType.CHAT]: 0.7
        };
        return temps[type] || 0.5;
    }

    getMaxTokensForType(type) {
        const tokens = {
            [AICapabilityType.CODE_COMPLETION]: 500,
            [AICapabilityType.CODE_EXPLANATION]: 1000,
            [AICapabilityType.ERROR_DIAGNOSIS]: 800,
            [AICapabilityType.CHAT]: 2000
        };
        return tokens[type] || 1000;
    }

    async checkUserQuota(userId, type) {
        const userResult = await pool.query('SELECT plan FROM users WHERE id = $1', [userId]);
        const plan = userResult.rows[0]?.plan || 'free';

        const quotas = {
            free: { requests: 100, interval: 3600 },
            pro: { requests: 1000, interval: 3600 },
            enterprise: { requests: Infinity, interval: 0 }
        };

        const quota = quotas[plan];
        const key = `ai_quota:${userId}:${type}`;
        const current = await redisClient.get(key);

        if (current && parseInt(current) >= quota.requests) {
            throw new AppError('QUOTA_EXCEEDED', `AI请求配额已用尽`);
        }

        if (current) await redisClient.incr(key);
        else await redisClient.setex(key, quota.interval, 1);
    }

    async recordUsage(userId, projectId, type) {
        const id = uuidv4();
        await pool.query(
            `INSERT INTO ai_usage_records (id, user_id, project_id, capability_type, created_at)
             VALUES ($1, $2, $3, $4, NOW())`,
            [id, userId, projectId, type]
        );
    }
}

module.exports = new AIService();
module.exports.AICapabilityType = AICapabilityType;

7. 代码执行与容器隔离

本节为你提供的核心技术价值:掌握Cloud IDE中代码安全执行的核心技术

7.1 代码执行服务
代码语言:javascript
复制
// api-gateway/src/services/execution.service.js - 代码执行服务
const { pool } = require('../database/postgres');
const { redisClient } = require('../database/redis');
const Docker = require('dockerode');
const { v4: uuidv4 } = require('uuid');
const { AppError } = require('../utils/errors');

const docker = new Docker({
    socketPath: process.env.DOCKER_SOCKET || '/var/run/docker.sock'
});

const LANGUAGE_IMAGES = {
    javascript: 'node:18-alpine',
    typescript: 'node:18-alpine',
    python: 'python:3.11-slim',
    java: 'openjdk:17-slim',
    go: 'golang:1.21-alpine',
    rust: 'rust:1.72-slim',
    ruby: 'ruby:3.2-slim',
    php: 'php:8.2-cli-alpine',
    cpp: 'gcc:13',
    c: 'gcc:13'
};

const RESOURCE_LIMITS = {
    free: { cpuPeriod: 100000, cpuQuota: 50000, memory: 256*1024*1024, pidsLimit: 64, timeout: 30000 },
    pro: { cpuPeriod: 100000, cpuQuota: 100000, memory: 512*1024*1024, pidsLimit: 128, timeout: 60000 },
    enterprise: { cpuPeriod: 100000, cpuQuota: 200000, memory: 1024*1024*1024, pidsLimit: 256, timeout: 120000 }
};

class ExecutionService {
    constructor() {
        this.containerPool = new Map();
        this.activeExecutions = new Map();
        this.poolSize = 3;
    }

    async execute({ projectId, userId, language, code, stdin, timeout }) {
        const executionId = uuidv4();
        const limits = await this.getUserLimits(userId);
        const effectiveTimeout = Math.min(timeout || Infinity, limits.timeout);

        const execution = {
            id: executionId, projectId, userId, language,
            status: 'pending', createdAt: Date.now(), timeout: effectiveTimeout
        };

        this.activeExecutions.set(executionId, execution);
        this.runExecution(execution, code, stdin).catch(error => {
            this.updateExecutionStatus(executionId, 'error', { error: error.message });
        });

        return { executionId, status: 'pending' };
    }

    async executeStream({ projectId, userId, language, code, stdin, timeout }) {
        const executionId = uuidv4();
        const limits = await this.getUserLimits(userId);
        const effectiveTimeout = Math.min(timeout || Infinity, limits.timeout);

        const execution = {
            id: executionId, projectId, userId, language,
            status: 'running', createdAt: Date.now(), timeout: effectiveTimeout
        };

        this.activeExecutions.set(executionId, execution);

        const outputStream = new PassThrough();
        this.runExecution(execution, code, stdin, outputStream).catch(error => {
            outputStream.write(`\nError: ${error.message}\n`);
        });

        return { executionId, outputStream };
    }

    async runExecution(execution, code, stdin, outputStream = null) {
        const { id: executionId, userId, language, timeout } = execution;

        const image = LANGUAGE_IMAGES[language];
        if (!image) throw new AppError('UNSUPPORTED_LANGUAGE', `不支持的语言: ${language}`);

        const container = await this.getContainer(userId, language, image);

        try {
            this.updateExecutionStatus(executionId, 'running');
            await this.writeCodeToContainer(container, language, code);

            const result = await this.runCodeInContainer(container, language, stdin, timeout, outputStream);

            this.updateExecutionStatus(executionId, 'completed', result);
            await this.releaseContainer(userId, container, language);

            return result;
        } catch (error) {
            await this.destroyContainer(container);
            this.updateExecutionStatus(executionId, 'error', { error: error.message });
            throw error;
        }
    }

    async getContainer(userId, language, image) {
        const poolKey = `${userId}:${language}`;

        if (this.containerPool.has(poolKey)) {
            const pool = this.containerPool.get(poolKey);
            if (pool.length > 0) {
                const container = pool.pop();
                try {
                    const info = await container.inspect();
                    if (info.State.Running) return container;
                } catch (e) {}
            }
        }

        return await this.createContainer(image, language);
    }

    async createContainer(image, language) {
        const limits = RESOURCE_LIMITS[process.env.USER_PLAN || 'free'];

        const container = await docker.createContainer({
            Image: image,
            Cmd: this.getLanguageCommand(language),
            Env: ['NODE_ENV=production'],
            HostConfig: {
                NetworkMode: 'cloudide-network',
                Memory: limits.memory,
                CpuPeriod: limits.cpuPeriod,
                CpuQuota: limits.cpuQuota,
                PidsLimit: limits.pidsLimit,
                ReadonlyRootfs: true,
                Tmpfs: { '/tmp': 'rw,noexec,nosuid,size=64m' },
                AutoRemove: false,
                MemorySwap: limits.memory,
                MemorySwappiness: 0
            },
            WorkingDir: '/workspace',
            Tty: true,
            AttachStdout: true,
            AttachStderr: true,
            AttachStdin: true,
            StdinOnce: false
        });

        await container.start();
        return container;
    }

    getLanguageCommand(language) {
        const commands = {
            javascript: ['node'], typescript: ['npx', 'ts-node'],
            python: ['python3'], java: ['java', '-Xmx256m'],
            go: ['go', 'run'], rust: ['rustc'], ruby: ['ruby'],
            php: ['php'], cpp: ['sh', '-c', 'g++ -o /tmp/main /tmp/main.cpp && /tmp/main'],
            c: ['sh', '-c', 'gcc -o /tmp/main /tmp/main.c && /tmp/main']
        };
        return commands[language] || ['sh'];
    }

    async writeCodeToContainer(container, language, code) {
        const extensions = {
            javascript: 'js', typescript: 'ts', python: 'py', java: 'java',
            go: 'go', rust: 'rs', ruby: 'rb', php: 'php', cpp: 'cpp', c: 'c'
        };

        const ext = extensions[language] || 'txt';
        const filename = `/tmp/main.${ext}`;
        const buffer = Buffer.from(code, 'utf8');
        await container.putArchive(buffer, { path: filename });
        return filename;
    }

    async runCodeInContainer(container, language, stdin, timeout, outputStream) {
        return new Promise(async (resolve, reject) => {
            const timeoutId = setTimeout(() => {
                reject(new AppError('EXECUTION_TIMEOUT', `执行超时(${timeout}ms)`));
            }, timeout);

            try {
                const stream = await container.attach({
                    stream: true, stdout: true, stderr: true, stdin: true
                });

                let stdout = '', stderr = '';

                stream.on('data', (chunk) => {
                    const output = chunk.toString();
                    stdout += output;
                    if (outputStream) outputStream.write(output);
                });

                stream.on('end', () => {
                    clearTimeout(timeoutId);
                    resolve({ stdout, stderr, exitCode: 0 });
                });

                stream.on('error', (error) => {
                    clearTimeout(timeoutId);
                    reject(error);
                });

                if (stdin && typeof stdin === 'string') {
                    container.modem.demuxStream(stdin, stream, stream);
                }
            } catch (error) {
                clearTimeout(timeoutId);
                reject(error);
            }
        });
    }

    async releaseContainer(userId, container, language) {
        const poolKey = `${userId}:${language}`;

        if (!this.containerPool.has(poolKey)) this.containerPool.set(poolKey, []);
        const pool = this.containerPool.get(poolKey);

        if (pool.length < this.poolSize) {
            try { await container.kill('SIGKILL'); await container.remove(); } catch (e) {}
            const newContainer = await this.createContainer(LANGUAGE_IMAGES[language], language);
            pool.push(newContainer);
        } else {
            await this.destroyContainer(container);
        }
    }

    async destroyContainer(container) {
        try { await container.kill('SIGKILL'); } catch (e) {}
        try { await container.remove({ force: true }); } catch (e) {}
    }

    async getUserLimits(userId) {
        const result = await pool.query('SELECT plan FROM users WHERE id = $1', [userId]);
        const plan = result.rows[0]?.plan || 'free';
        return RESOURCE_LIMITS[plan] || RESOURCE_LIMITS.free;
    }

    async updateExecutionStatus(executionId, status, result = {}) {
        const execution = this.activeExecutions.get(executionId);
        if (!execution) return;

        execution.status = status;
        execution.completedAt = Date.now();
        execution.result = result;

        await redisClient.setex(`execution:${executionId}`, 3600, JSON.stringify(execution));

        await pool.query(
            `INSERT INTO code_executions (id, project_id, user_id, language, status, result, created_at, completed_at)
             VALUES ($1, $2, $3, $4, $5, $6, $7, $8)
             ON CONFLICT (id) DO UPDATE SET status = $5, result = $6, completed_at = $8`,
            [executionId, execution.projectId, execution.userId, execution.language,
             status, JSON.stringify(result), new Date(execution.createdAt),
             status === 'completed' || status === 'error' ? new Date() : null]
        );
    }

    async getExecutionStatus(executionId) {
        const cached = await redisClient.get(`execution:${executionId}`);
        if (cached) return JSON.parse(cached);

        const result = await pool.query('SELECT * FROM code_executions WHERE id = $1', [executionId]);
        return result.rows[0] || null;
    }
}

module.exports = new ExecutionService();

8. 多语言支持与运行时环境

本节为你提供的核心技术价值:掌握Cloud IDE中多语言支持的设计

8.1 多语言配置管理
代码语言:javascript
复制
// api-gateway/src/config/languages.config.js - 语言配置

const LANGUAGES = {
    javascript: {
        id: 'javascript', name: 'JavaScript',
        extensions: ['.js', '.mjs', '.cjs'],
        mimeTypes: ['text/javascript'],
        editorConfig: { tabSize: 4, insertSpaces: true, wordWrap: 'off' },
        linter: 'eslint', formatter: 'prettier',
        runtime: 'node', executionImage: 'node:18-alpine',
        defaultCode: `// JavaScript\nconsole.log("Hello, World!");`,
        languageServer: 'vscode-javascript'
    },
    python: {
        id: 'python', name: 'Python',
        extensions: ['.py', '.pyw', '.pyi'],
        mimeTypes: ['text/x-python'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        linter: 'pylint', formatter: 'black',
        runtime: 'python', executionImage: 'python:3.11-slim',
        defaultCode: `# Python\nprint("Hello, World!")`,
        languageServer: 'pylance'
    },
    typescript: {
        id: 'typescript', name: 'TypeScript',
        extensions: ['.ts', '.tsx', '.mts', '.cts'],
        mimeTypes: ['text/typescript'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        linter: 'eslint', formatter: 'prettier',
        runtime: 'node', executionImage: 'node:18-alpine',
        defaultCode: `// TypeScript\nconst greet = (name: string): string => \`Hello, \${name}!\`;\nconsole.log(greet("World"));`,
        languageServer: 'vscode-typescript'
    },
    java: {
        id: 'java', name: 'Java',
        extensions: ['.java'],
        mimeTypes: ['text/x-java'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        formatter: 'google-java-format',
        runtime: 'java', executionImage: 'openjdk:17-slim',
        defaultCode: `public class Main {\n    public static void main(String[] args) {\n        System.out.println("Hello, World!");\n    }\n}`,
        languageServer: 'eclipse.jdt.ls'
    },
    go: {
        id: 'go', name: 'Go',
        extensions: ['.go'],
        mimeTypes: ['text/x-go'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        linter: 'golangci-lint', formatter: 'gofmt',
        runtime: 'go', executionImage: 'golang:1.21-alpine',
        defaultCode: `package main\nimport "fmt"\nfunc main() {\n    fmt.Println("Hello, World!")\n}`,
        languageServer: 'gopls'
    },
    rust: {
        id: 'rust', name: 'Rust',
        extensions: ['.rs'],
        mimeTypes: ['text/x-rust'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        linter: 'clippy', formatter: 'rustfmt',
        executionImage: 'rust:1.72-slim',
        defaultCode: `fn main() {\n    println!("Hello, World!");\n}`,
        languageServer: 'rust-analyzer'
    },
    cpp: {
        id: 'cpp', name: 'C++',
        extensions: ['.cpp', '.cc', '.cxx', '.hpp'],
        mimeTypes: ['text/x-c++src'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        linter: 'clang-tidy', formatter: 'clang-format',
        executionImage: 'gcc:13',
        defaultCode: `#include <iostream>\nint main() {\n    std::cout << "Hello, World!" << std::endl;\n    return 0;\n}`,
        languageServer: 'clangd'
    },
    html: {
        id: 'html', name: 'HTML',
        extensions: ['.html', '.htm'],
        mimeTypes: ['text/html'],
        editorConfig: { tabSize: 2, insertSpaces: true },
        formatter: 'prettier',
        executionImage: null,
        defaultCode: `<!DOCTYPE html>\n<html>\n<head><title>Hello</title></head>\n<body>\n    <h1>Hello, World!</h1>\n</body>\n</html>`,
        languageServer: 'vscode-html'
    },
    css: {
        id: 'css', name: 'CSS',
        extensions: ['.css'],
        mimeTypes: ['text/css'],
        editorConfig: { tabSize: 2, insertSpaces: true },
        linter: 'stylelint', formatter: 'prettier',
        executionImage: null,
        defaultCode: `body { font-family: Arial; margin: 0; }\nh1 { color: #333; }`,
        languageServer: 'vscode-css'
    },
    json: {
        id: 'json', name: 'JSON',
        extensions: ['.json', '.jsonc'],
        mimeTypes: ['application/json'],
        editorConfig: { tabSize: 2, insertSpaces: true },
        formatter: 'prettier',
        executionImage: null,
        defaultCode: `{\n    "name": "project",\n    "version": "1.0.0"\n}`,
        languageServer: 'vscode-json'
    },
    sql: {
        id: 'sql', name: 'SQL',
        extensions: ['.sql'],
        mimeTypes: ['text/x-sql'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        formatter: 'prettier',
        executionImage: null,
        defaultCode: `SELECT * FROM users WHERE active = true;`,
        languageServer: 'mssql'
    },
    shell: {
        id: 'shell', name: 'Shell',
        extensions: ['.sh', '.bash'],
        mimeTypes: ['text/x-shellscript'],
        editorConfig: { tabSize: 4, insertSpaces: true },
        linter: 'shellcheck',
        runtime: 'bash', executionImage: 'bash:5.2',
        defaultCode: `#!/bin/bash\necho "Hello, World!"`,
        languageServer: null
    }
};

function getLanguageByExtension(extension) {
    for (const [id, config] of Object.entries(LANGUAGES)) {
        if (config.extensions.includes(extension.toLowerCase())) {
            return { id, ...config };
        }
    }
    return null;
}

function getLanguageByFilename(filename) {
    const ext = '.' + filename.split('.').pop();
    return getLanguageByExtension(ext);
}

function getSupportedLanguages() {
    return Object.entries(LANGUAGES).map(([id, config]) => ({
        id, name: config.name, extensions: config.extensions,
        hasExecution: config.executionImage !== null
    }));
}

async function detectLanguageFromContent(content) {
    const patterns = [
        { pattern: /^<!DOCTYPE html>/i, language: 'html' },
        { pattern: /^<html/i, language: 'html' },
        { pattern: /^{\s*"[\w]+":/i, language: 'json' },
        { pattern: /^import\s+[\w]+\s+from\s+['"][^'"]+['"]/i, language: 'javascript' },
        { pattern: /^from\s+[\w]+\s+import\s+/i, language: 'python' },
        { pattern: /^package\s+[\w.]+;/i, language: 'java' },
        { pattern: /^package\s+main/i, language: 'go' },
        { pattern: /^fn\s+\w+\s*\(/i, language: 'rust' },
        { pattern: /^#include\s*</i, language: 'cpp' },
        { pattern: /^SELECT\s+/i, language: 'sql' }
    ];

    for (const { pattern, language } of patterns) {
        if (pattern.test(content)) return language;
    }
    return 'plaintext';
}

module.exports = {
    LANGUAGES, getLanguageByExtension, getLanguageByFilename,
    getSupportedLanguages, detectLanguageFromContent
};

9. 性能优化与安全加固

本节为你提供的核心技术价值:掌握Cloud IDE的高性能架构设计

9.1 首屏加载优化

9.2 性能优化策略

优化策略

实现方法

预期效果

CDN加速

全球边缘节点分发静态资源

加载时间减少60%

代码分割

React.lazy + Suspense

首屏JS减少50%

资源预加载

Critical Path资源预加载

FCP提升30%

懒加载

Monaco Editor按语言懒加载

初始加载减少40%

WebSocket复用

长连接心跳保活

延迟降低80%

内存优化

虚拟化文件树、回收大文件

内存占用减少45%

9.3 安全加固方案


10. 商业模式与计费体系

本节为你提供的核心技术价值:理解Cloud IDE的商业模式设计

10.1 计费模式对比

计费模式

优点

缺点

适用场景

按实例计费

收入稳定、资源明确

可能资源浪费

企业团队

按用户计费

简单透明、易于理解

无法限制滥用

小型团队

按功能计费

价值导向、灵活选择

定价复杂

多产品线

混合计费

兼顾灵活性和收入

系统复杂

大规模平台

10.2 套餐设计

套餐

价格

实例数

并发用户

存储

AI配额

Free

$0

1

1

1GB

100次/天

Pro

$19/月

3

5

20GB

1000次/天

Team

$49/月/人

10

20

100GB

5000次/天

Enterprise

定制

无限

无限

无限

无限


11. 总结与展望

本节为你提供的核心技术价值:回顾Cloud IDE构建的关键技术点,展望未来发展方向

11.1 技术架构总结

本文详细阐述了构建完整Cloud IDE的核心技术:

  1. 前后端分离架构:React + Express.js + Socket.IO,提供流畅的用户体验
  2. 微服务化设计:API网关、认证服务、协作服务、AI服务模块化独立部署
  3. 容器隔离执行:Docker容器提供安全可控的代码运行环境
  4. 实时协作引擎:OT算法实现多用户无冲突编辑
  5. AI能力集成:GPT-4提供代码补全、错误诊断、重构建议
  6. 多语言支持:15+主流编程语言的语法高亮和运行时支持
11.2 性能指标

指标

数值

说明

首屏加载

<2s

优化后首次访问时间

代码同步延迟

<50ms

局域网环境

代码执行启动

<3s

容器冷启动

并发编辑用户

100+

单文件同时编辑

系统可用性

99.9%

SLO目标

11.3 未来展望
  1. AI深度集成:从代码补全扩展到代码审查、自动化测试生成
  2. 多模态交互:支持语音输入、自然语言编程
  3. 全球化部署:边缘节点部署降低全球访问延迟
  4. 硬件加速:GPU支持机器学习模型的本地推理

参考链接


附录(Appendix):

A. 数据库Schema

代码语言:javascript
复制
-- 用户表
CREATE TABLE users (
    id UUID PRIMARY KEY,
    email VARCHAR(255) UNIQUE NOT NULL,
    username VARCHAR(50) UNIQUE NOT NULL,
    password_hash VARCHAR(255) NOT NULL,
    plan VARCHAR(20) DEFAULT 'free',
    is_verified BOOLEAN DEFAULT false,
    is_locked BOOLEAN DEFAULT false,
    avatar_url TEXT,
    created_at TIMESTAMP DEFAULT NOW(),
    updated_at TIMESTAMP DEFAULT NOW(),
    last_login_at TIMESTAMP
);

-- 项目表
CREATE TABLE projects (
    id UUID PRIMARY KEY,
    name VARCHAR(255) NOT NULL,
    description TEXT,
    owner_id UUID REFERENCES users(id),
    template_id UUID,
    visibility VARCHAR(20) DEFAULT 'private',
    git_url TEXT,
    default_branch VARCHAR(50) DEFAULT 'main',
    devfile JSONB,
    created_at TIMESTAMP DEFAULT NOW(),
    updated_at TIMESTAMP DEFAULT NOW()
);

-- 项目文件表
CREATE TABLE project_files (
    id UUID PRIMARY KEY,
    project_id UUID REFERENCES projects(id) ON DELETE CASCADE,
    path TEXT NOT NULL,
    name VARCHAR(255) NOT NULL,
    content TEXT,
    storage_path TEXT,
    is_directory BOOLEAN DEFAULT false,
    mime_type VARCHAR(100),
    size BIGINT DEFAULT 0,
    created_at TIMESTAMP DEFAULT NOW(),
    updated_at TIMESTAMP DEFAULT NOW(),
    UNIQUE(project_id, path)
);

-- 项目成员表
CREATE TABLE project_members (
    project_id UUID REFERENCES projects(id) ON DELETE CASCADE,
    user_id UUID REFERENCES users(id) ON DELETE CASCADE,
    role VARCHAR(50) DEFAULT 'developer',
    joined_at TIMESTAMP DEFAULT NOW(),
    PRIMARY KEY (project_id, user_id)
);

-- 代码执行记录表
CREATE TABLE code_executions (
    id UUID PRIMARY KEY,
    project_id UUID REFERENCES projects(id),
    user_id UUID REFERENCES users(id),
    language VARCHAR(50) NOT NULL,
    status VARCHAR(20) NOT NULL,
    result JSONB,
    created_at TIMESTAMP DEFAULT NOW(),
    completed_at TIMESTAMP
);

-- AI使用记录表
CREATE TABLE ai_usage_records (
    id UUID PRIMARY KEY,
    user_id UUID REFERENCES users(id),
    project_id UUID REFERENCES projects(id),
    capability_type VARCHAR(50) NOT NULL,
    created_at TIMESTAMP DEFAULT NOW()
);

-- 索引
CREATE INDEX idx_project_files_project_id ON project_files(project_id);
CREATE INDEX idx_project_files_path ON project_files(project_id, path);
CREATE INDEX idx_code_executions_user_id ON code_executions(user_id);
CREATE INDEX idx_ai_usage_user_id ON ai_usage_records(user_id);

B. 环境变量配置

代码语言:javascript
复制
# .env.example
NODE_ENV=production
PORT=8080

# 数据库
DATABASE_URL=postgresql://user:password@localhost:5432/cloudide

# Redis
REDIS_URL=redis://localhost:6379

# JWT
JWT_SECRET=your-super-secret-jwt-key
JWT_REFRESH_SECRET=your-refresh-secret-key

# Docker
DOCKER_SOCKET=/var/run/docker.sock

# OpenAI
OPENAI_API_KEY=sk-your-api-key

# 对象存储
S3_ENDPOINT=https://s3.amazonaws.com
S3_BUCKET=cloudide-files
AWS_ACCESS_KEY_ID=your-access-key
AWS_SECRET_ACCESS_KEY=your-secret-key

# 允许的源
ALLOWED_ORIGINS=https://cloudide.example.com,http://localhost:3000

C. 前端依赖

代码语言:javascript
复制
// package.json (frontend)
{
  "dependencies": {
    "react": "^18.2.0",
    "react-dom": "^18.2.0",
    "react-router-dom": "^6.20.0",
    "monaco-editor": "^0.45.0",
    "socket.io-client": "^4.7.2",
    "@tanstack/react-query": "^5.8.0",
    "zustand": "^4.4.6",
    "axios": "^1.6.2",
    "prismjs": "^1.29.0",
    "katex": "^0.16.9"
  },
  "devDependencies": {
    "@types/react": "^18.2.0",
    "typescript": "^5.3.0",
    "vite": "^5.0.0",
    "@vitejs/plugin-react": "^4.2.0"
  }
}

D. 后端依赖

代码语言:javascript
复制
// package.json (backend)
{
  "dependencies": {
    "express": "^4.18.2",
    "socket.io": "^4.7.2",
    "pg": "^8.11.3",
    "redis": "^4.6.10",
    "jsonwebtoken": "^9.0.2",
    "bcryptjs": "^2.4.3",
    "helmet": "^7.1.0",
    "cors": "^2.8.5",
    "express-rate-limit": "^7.1.5",
    "dockerode": "^4.0.0",
    "openai": "^4.20.0",
    "uuid": "^9.0.1",
    "multer": "^1.4.5-lts.1",
    "dotenv": "^16.3.1"
  },
  "devDependencies": {
    "nodemon": "^3.0.2",
    "jest": "^29.7.0"
  }
}

关键词: Cloud IDE, Web IDE, 实时协作, Monaco Editor, OT算法, Docker容器, WebSocket, AI编程辅助, 云端开发环境, VS Code

在这里插入图片描述
在这里插入图片描述

  1. Stack Overflow Developer Survey 2024, https://survey.stackoverflow.co/2024/ ↩︎
本文参与 腾讯云自媒体同步曝光计划,分享自作者个人站点/博客。
原始发表:2026-06-09,如有侵权请联系 cloudcommunity@tencent.com 删除

本文分享自 作者个人站点/博客 前往查看

如有侵权,请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ,欢迎热爱写作的你一起参与!

评论
登录后参与评论
0 条评论
热度
最新
推荐阅读
目录
  • 目录
  • 1. 概述与产品定位
    • 1.1 云端开发环境的市场演进
    • 1.2 产品形态对比分析
    • 1.3 本项目技术选型
  • 2. 系统架构设计
    • 2.1 整体架构概览
    • 2.2 数据流设计
    • 2.3 核心模块职责
      • 2.3.1 API网关层
      • 2.3.2 认证服务
  • 3. 项目管理与文件系统
    • 3.1 项目数据模型
    • 3.2 文件系统服务
  • 4. 代码编辑器核心实现
    • 4.1 编辑器前端架构
    • 4.2 编辑器样式
  • 5. 实时协作与WebSocket通信
    • 5.1 WebSocket服务器架构
    • 5.2 OT(操作转换)引擎
    • 5.3 在线状态管理
  • 6. AI能力集成
    • 6.1 AI服务架构
  • 7. 代码执行与容器隔离
    • 7.1 代码执行服务
  • 8. 多语言支持与运行时环境
    • 8.1 多语言配置管理
  • 9. 性能优化与安全加固
    • 9.1 首屏加载优化
    • 9.2 性能优化策略
    • 9.3 安全加固方案
  • 10. 商业模式与计费体系
    • 10.1 计费模式对比
    • 10.2 套餐设计
  • 11. 总结与展望
    • 11.1 技术架构总结
    • 11.2 性能指标
    • 11.3 未来展望
  • 参考链接
  • A. 数据库Schema
  • B. 环境变量配置
  • C. 前端依赖
  • D. 后端依赖
领券
问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
