Web前端架构:Monaco Editor与协同编辑

作者头像
安全风信子
发布2026-06-08 09:02:50
发布2026-06-08 09:02:50
1940
举报
文章被收录于专栏:AI SPPECHAI SPPECH

作者: HOS(安全风信子) 日期: 2026-05-25 主要来源平台: GitHub 摘要: 云端IDE的前端需要提供接近本地IDE的体验,Monaco Editor作为VS Code的核心组件,为Web端提供了强大的代码编辑能力。本文深入讲解基于Monaco Editor的前端架构设计,涵盖编辑器配置与扩展机制、语言支持体系(语法高亮、补全、诊断)、协同编辑的实现原理(Y.js与CRDT)。同时探讨WebAssembly在计算密集型任务中的前端加速作用,以及虚拟滚动和大文件处理等性能优化策略。最终通过一个完整实践案例,展示如何实现支持协同编辑的Web编辑器。


目录
  • 1 引言:为什么需要基于Monaco的前端架构
  • 2 Monaco Editor集成与配置
    • 2.1 Monaco Editor核心概念
    • 2.2 编辑器基础配置
    • 2.3 编辑器初始化实现
    • 2.4 主题系统与定制
    • 2.5 扩展机制与插件开发
  • 3 语言支持体系

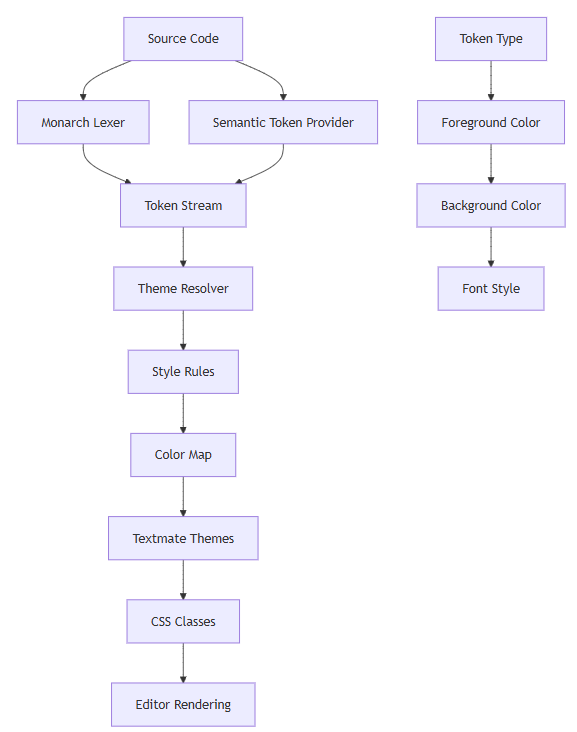

    • 3.1 语法高亮实现
    • 3.2 智能补全系统

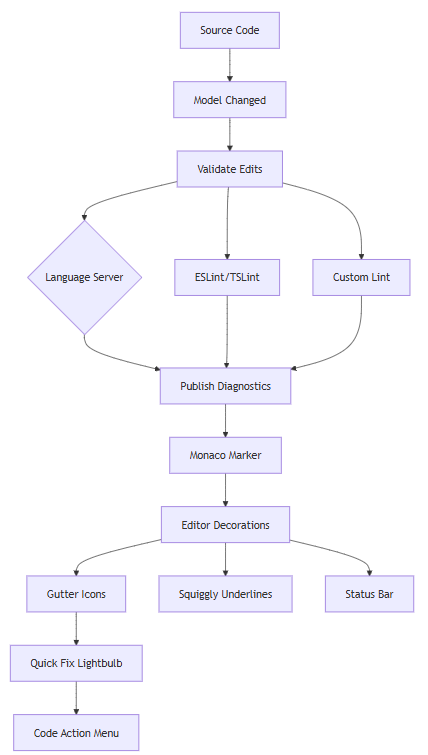

    • 3.3 错误诊断与修复
  • 4 协同编辑原理与实现

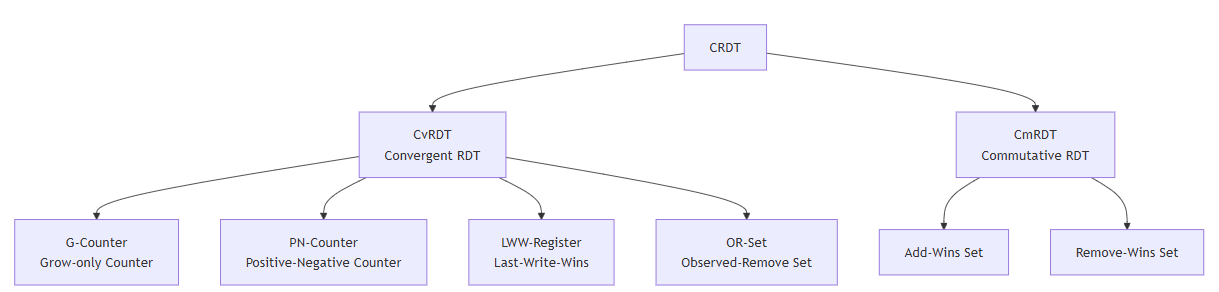

    • 4.1 CRDT理论基础

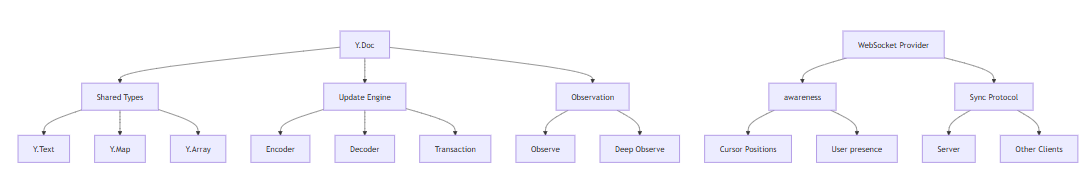

    • 4.2 Y.js核心概念
    • 4.3 协同编辑完整实现
    • 4.4 协同编辑服务器实现
  • 5 性能优化策略

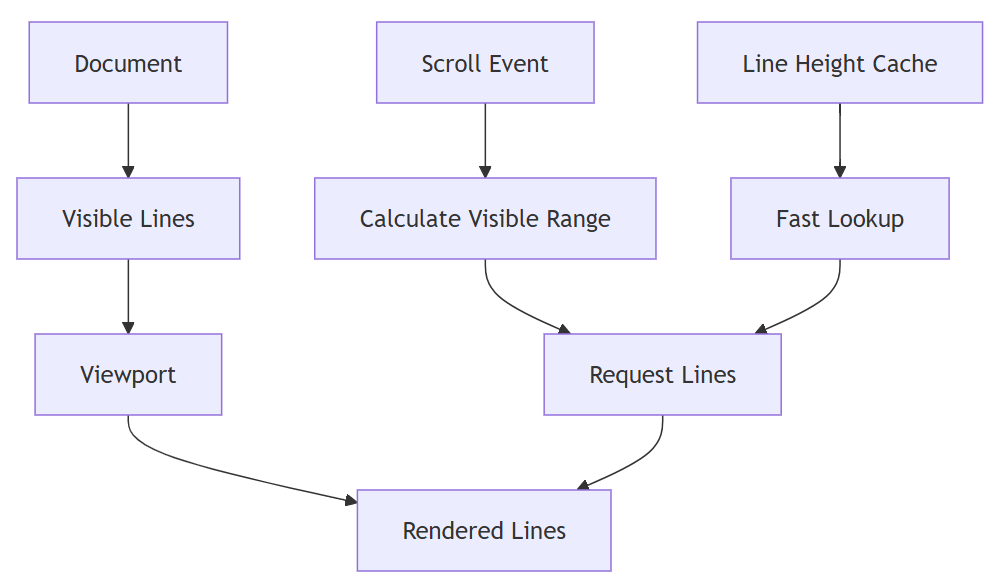

    • 5.1 虚拟滚动实现
    • 5.2 大文件处理
    • 5.3 WebWorker与异步处理
  • 6 WebAssembly加速
    • 6.1 WASM与JavaScript性能对比
    • 6.2 WASM加速实践

1 引言:为什么需要基于Monaco的前端架构

本节为你提供的核心技术价值:理解云端IDE前端架构的核心挑战,以及Monaco Editor如何解决这些挑战。

云端IDE(Cloud IDE)已经成为现代软件开发的主流趋势。从GitHub Codespaces到Gitpod,从AWS Cloud9到Cursor,云端IDE让开发者能够通过浏览器获得接近本地IDE的开发体验。然而,实现这一目标的前端技术挑战是巨大的:

核心挑战分析:

挑战类别

具体问题

技术影响

编辑体验

语法高亮延迟、补全卡顿

开发效率下降

协作需求

多用户同时编辑、冲突解决

数据一致性难题

性能瓶颈

大文件处理、网络延迟

用户体验劣化

功能完整性

调试能力、跳转到定义

功能缺失

Monaco Editor是微软开源的代码编辑器组件,它是VS Code的核心编辑引擎。Monaco Editor提供了以下关键能力:

代码语言:javascript
复制
// Monaco Editor的核心能力矩阵
const monacoCapabilities = {
    // 语法和语义支持
    syntaxHighlighting: true,      // 50+语言语法高亮
    autoCompletion: true,          // 智能补全
    errorDiagnostics: true,         // 实时错误诊断
    codeFormatting: true,           // 代码格式化

    // 高级编辑功能
    multiCursor: true,              // 多光标编辑
    findReplace: true,              // 查找替换
    codeFolding: true,             // 代码折叠
    minimap: true,                  // 小地图

    // 协作支持
    operationalTransform: false,    // OT已被CRDT取代
    crdtIntegration: true,          // Y.js集成支持
    awarenessProtocol: true          // 状态感知协议
};

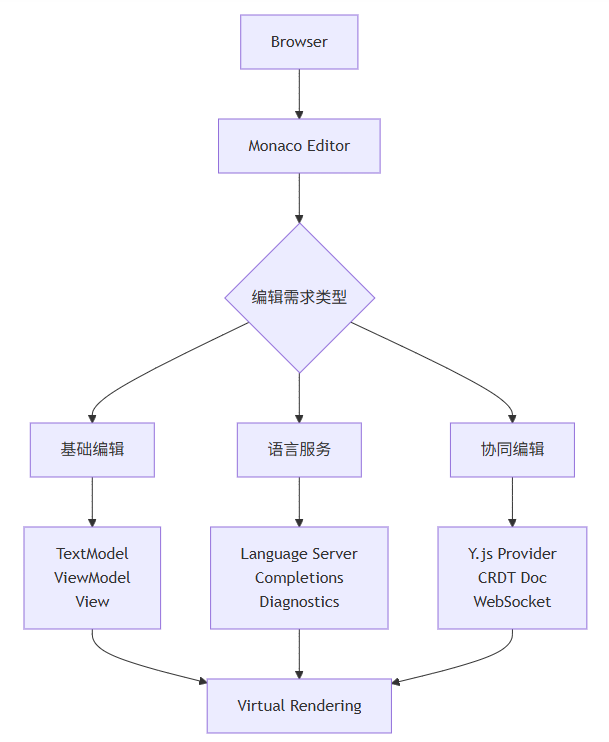

Monaco Editor的技术定位:

架构设计原则:

  1. 分层解耦:将编辑器核心与语言服务、协作服务分离
  2. 响应式渲染:基于Virtual DOM思想,只渲染可见区域
  3. 服务化架构:语言服务、协作服务独立部署和扩展
  4. 性能优先:WebWorker、wasm、虚拟滚动等多层次优化

本文将按照以下结构深入讲解:

代码语言:javascript
复制
├── Monaco Editor集成与配置
│   ├── 编辑器初始化配置
│   ├── 主题系统与定制
│   └── 扩展机制与插件开发
├── 语言支持体系
│   ├── 语法高亮实现
│   ├── 智能补全系统
│   └── 错误诊断与修复
├── 协同编辑原理与实现
│   ├── CRDT理论基础
│   ├── Y.js核心概念
│   └── 协同编辑实战
├── 性能优化策略
│   ├── 虚拟滚动实现
│   ├── 大文件处理
│   └── WebWorker优化
├── WebAssembly加速
│   ├── WASM与JS性能对比
│   ├── 计算密集型任务卸载
│   └── 实践案例
└── 完整实践:协同编辑器实现

2 Monaco Editor集成与配置

本节为你提供的核心技术价值:掌握Monaco Editor的完整集成流程,包括配置选项、主题定制和扩展开发。

2.1 Monaco Editor核心概念

Monaco Editor的整体架构遵循**模型-视图-控制器(MVC)**模式,但在实现上更加精细化和模块化。理解这些核心概念是正确使用Monaco的基础。

Monaco Editor核心组件:

代码语言:javascript
复制
// Monaco Editor核心类型定义
interface MonacoEditorCore {
    // 模型层:代码数据
    ITextModel: {
        getValue(): string;
        getLineCount(): number;
        getLineContent(lineNumber: number): string;
        getWordAtPosition(position: IPosition): IWordAtPosition;
        findMatches(pattern: string): FindMatch[];
    };

    // 视图层:渲染与交互
    ICodeEditor: {
        getDomNode(): HTMLElement;
        layout(): void;
        render(): void;
        getScrollTop(): number;
        setScrollTop(scrollTop: number): void;
    };

    // 命令系统
    ICommand: {
        id: number;
        execute(): void;
    };
}

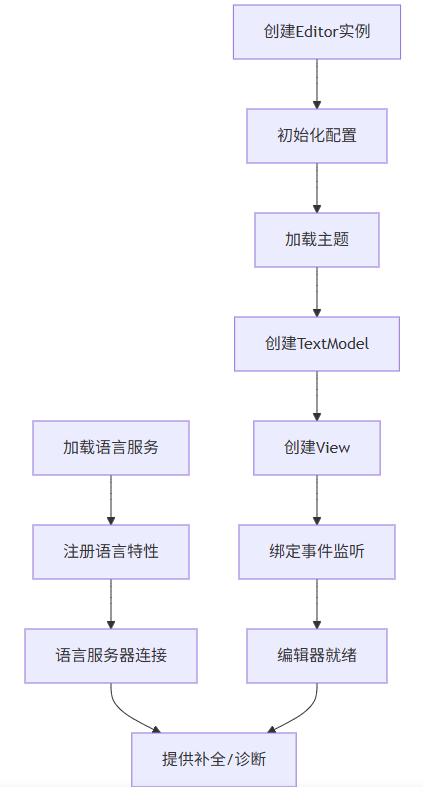

编辑器的初始化流程:

2.2 编辑器基础配置

Monaco Editor提供了丰富的配置选项,涵盖编辑器的各个方面。以下是一个完整的配置示例:

代码语言:javascript
复制
// Monaco Editor完整配置
const editorOptions = {
    // 基础设置
    value: '// your code here',
    language: 'javascript',
    theme: 'vs-dark',

    // 自动格式化与补全
    automaticLayout: true,        // 自动调整布局
    autoClosingBrackets: 'always', // 自动闭合括号
    autoClosingQuotes: 'always',  // 自动闭合引号
    formatOnPaste: true,          // 粘贴时格式化
    formatOnType: true,           // 输入时格式化

    // 编辑体验
    tabSize: 4,                   // Tab宽度
    insertSpaces: true,           // 使用空格代替Tab
    wordWrap: 'off',              // 自动换行
    lineNumbers: 'on',            // 行号显示
    minimap: {
        enabled: true,            // 启用小地图
        maxColumn: 80             // 小地图最大宽度
    },

    // 滚动条设置
    scrollBeyondLastLine: false,
    smoothScrolling: true,
    mouseWheelZoom: true,

    // 字体设置
    fontFamily: "'Fira Code', Consolas, 'Courier New', monospace",
    fontLigatures: true,          // 连字符
    fontSize: 14,
    fontWeight: 'normal',

    // 光标设置
    cursorBlinking: 'smooth',
    cursorSmoothCaretAnimation: 'on',
    cursorStyle: 'line',
    cursorWidth: 2,

    // 选择与查找
    occurrencesHighlight: 'singleFile',
    renderLineHighlight: 'all',
    selectionHighlight: true,
    find: {
        seedSearchStringFromSelection: 'always',
        autoSearchInWholeFile: true
    },

    // 语法与验证
    renderWhitespace: 'selection',
    guides: {
        bracketPairs: true,
        indentation: true
    },

    // 性能相关
    largeFileOptimization: true,
    maxTokenizationLineLength: 20000,

    // 快捷键
    contextmenu: true,
    copyWithSyntaxHighlighting: true,

    // 协同编辑相关
    readOnly: false,
    domReadOnly: false
};

配置选项详解:

配置类别

选项名

类型

默认值

说明

基础

value

string

-

编辑器初始内容

基础

language

string

-

编程语言

基础

theme

string

vs

主题名称

格式

tabSize

number

4

Tab字符宽度

格式

insertSpaces

boolean

true

自动用空格替换Tab

格式

wordWrap

string

off

自动换行模式

视图

lineNumbers

string

on

行号显示模式

视图

minimap.enabled

boolean

true

是否显示小地图

视图

renderWhitespace

string

selection

空格渲染模式

性能

largeFileOptimization

boolean

true

大文件优化

性能

maxTokenizationLineLength

number

20000

最大词法分析行长度

2.3 编辑器初始化实现

完整的Monaco Editor初始化代码:

代码语言:javascript
复制
// Monaco Editor初始化完整实现
class MonacoEditorManager {
    constructor(container) {
        this.container = container;
        this.editor = null;
        this.models = new Map();
        this.disposables = [];
    }

    async initialize(options = {}) {
        // 加载Monaco Editor
        const monaco = await this.loadMonaco();

        // 定义自定义主题
        this.defineCustomTheme(monaco);

        // 注册自定义语言
        this.registerCustomLanguage(monaco);

        // 创建编辑器实例
        this.editor = monaco.editor.create(this.container, {
            ...this.getDefaultOptions(),
            ...options
        });

        // 设置编辑器事件
        this.setupEventHandlers();

        // 初始化语言服务
        await this.initializeLanguageServices();

        return this.editor;
    }

    loadMonaco() {
        return new Promise((resolve, reject) => {
            // 检测是否已加载
            if (window.monaco) {
                resolve(window.monaco);
                return;
            }

            // 动态加载AMDLoader
            const loaderScript = document.createElement('script');
            loaderScript.src = 'https://cdn.jsdelivr.net/npm/monaco-editor@0.45.0/min/vs/loader.js';
            loaderScript.onload = () => {
                require.config({
                    paths: {
                        'vs': 'https://cdn.jsdelivr.net/npm/monaco-editor@0.45.0/min/vs'
                    }
                });

                require(['vs/editor/editor.main'], () => {
                    resolve(window.monaco);
                });
            };
            loaderScript.onerror = reject;
            document.head.appendChild(loaderScript);
        });
    }

    getDefaultOptions() {
        return {
            value: '',
            language: 'plaintext',
            theme: 'custom-dark',
            automaticLayout: true,
            fontSize: 14,
            tabSize: 4,
            insertSpaces: true,
            wordWrap: 'off',
            lineNumbers: 'on',
            minimap: { enabled: true },
            scrollBeyondLastLine: false,
            smoothScrolling: true,
            cursorBlinking: 'smooth',
            cursorSmoothCaretAnimation: 'on',
            renderWhitespace: 'selection',
            bracketPairColorization: { enabled: true },
            guides: {
                bracketPairs: true,
                indentation: true
            },
            padding: { top: 10, bottom: 10 },
            scrollbar: {
                vertical: 'visible',
                horizontal: 'visible',
                verticalScrollbarSize: 14,
                horizontalScrollbarSize: 14
            }
        };
    }

    defineCustomTheme(monaco) {
        monaco.editor.defineTheme('custom-dark', {
            base: 'vs-dark',
            inherit: true,
            rules: [
                { token: 'comment', foreground: '6A9955', fontStyle: 'italic' },
                { token: 'keyword', foreground: '569CD6' },
                { token: 'string', foreground: 'CE9178' },
                { token: 'number', foreground: 'B5CEA8' },
                { token: 'type', foreground: '4EC9B0' },
                { token: 'function', foreground: 'DCDCAA' },
                { token: 'variable', foreground: '9CDCFE' },
                { token: 'operator', foreground: 'D4D4D4' }
            ],
            colors: {
                'editor.background': '#1E1E1E',
                'editor.foreground': '#D4D4D4',
                'editor.lineHighlightBackground': '#2D2D30',
                'editor.selectionBackground': '#264F78',
                'editorCursor.foreground': '#AEAFAD',
                'editorLineNumber.foreground': '#858585',
                'editorLineNumber.activeForeground': '#C6C6C6'
            }
        });
    }

    registerCustomLanguage(monaco) {
        // 注册自定义语言:Petal
        monaco.languages.register({ id: 'petal' });

        // 定义词法规则
        monaco.languages.setMonarchTokensProvider('petal', {
            tokenizer: {
                root: [
                    [/\/\/.*$/, 'comment'],
                    [/\/\*/, 'comment', '@comment'],
                    [/"([^"\\]|\\.)*"/, 'string'],
                    [/'([^'\\]|\\.)*'/, 'string'],
                    [/\b(func|var|let|const|if|else|for|while|return|class|struct|enum|import|from|as|pub|mod|trait|impl|self|super|crate|where|match|loop|break|continue|async|await|move|ref|move|static|mut|unsafe|extern|dyn)\b/, 'keyword'],
                    [/\b(i8|i16|i32|i64|i128|isize|u8|u16|u32|u64|u128|usize|f32|f64|bool|char|str|String|Vec|Option|Result|Box|Rc|Arc|Cell|RefCell)\b/, 'type'],
                    [/\b(true|false|nil|null|void)\b/, 'constant'],
                    [/[a-zA-Z_]\w*/, {
                        cases: {
                            '@keywords': 'keyword',
                            '@default': 'identifier'
                        }
                    }],
                    [/[=!<>+\-*/%&|^~?:]+/, 'operator'],
                    [/\d+\.\d+/, 'number.float'],
                    [/\d+/, 'number'],
                    [/[{}()\[\]]/, 'delimiter.bracket'],
                    [/[;,.]/, 'delimiter']
                ],
                comment: [
                    [/[^*/]+/, 'comment'],
                    [/\*\//, 'comment', '@pop'],
                    [/\*/, 'comment']
                ]
            }
        });

        // 定义语言配置
        monaco.languages.setLanguageConfiguration('petal', {
            comments: {
                lineComment: '//',
                blockComment: ['/*', '*/']
            },
            brackets: [['{', '}'], ['[', ']'], ['(', ')'], ['<', '>']],
            autoClosingPairs: [
                { open: '{', close: '}' },
                { open: '[', close: ']' },
                { open: '(', close: ')' },
                { open: '"', close: '"' },
                { open: "'", close: "'" }
            ],
            surroundingPairs: [
                { open: '{', close: '}' },
                { open: '[', close: ']' },
                { open: '(', close: ')' },
                { open: '"', close: '"' }
            ]
        });
    }

    setupEventHandlers() {
        // 内容变更事件
        this.editor.onDidChangeModelContent((e) => {
            console.log('Content changed:', e);
            this.onContentChanged(e);
        });

        // 光标位置变更
        this.editor.onDidChangeCursorPosition((e) => {
            console.log('Cursor moved:', e.position);
            this.onCursorChanged(e);
        });

        // 选择变更
        this.editor.onDidChangeCursorSelection((e) => {
            console.log('Selection changed:', e.selection);
            this.onSelectionChanged(e);
        });

        // 滚动事件
        this.editor.onDidScrollChange((e) => {
            this.onScrollChanged(e);
        });

        // 布局变更
        this.editor.onDidLayoutChange((e) => {
            console.log('Layout changed:', e);
        });
    }

    onContentChanged(changeEvent) {
        // 触发协同编辑同步
        if (this.collaborationProvider) {
            this.collaborationProvider.notifyChange(changeEvent);
        }
    }

    onCursorChanged(positionEvent) {
        // 更新远程用户光标位置
        if (this.awareness) {
            this.awareness.setLocalStateField('cursor', positionEvent.position);
        }
    }

    onSelectionChanged(selectionEvent) {
        // 处理选择变更
    }

    onScrollChanged(scrollEvent) {
        // 处理滚动同步
    }

    async initializeLanguageServices() {
        // 加载语言服务器
        const languageId = this.editor.getModel()?.getLanguageId();
        if (languageId && this.languageClients.has(languageId)) {
            const client = this.languageClients.get(languageId);
            await client.start();
        }
    }

    getEditor() {
        return this.editor;
    }

    getModel() {
        return this.editor?.getModel();
    }

    setValue(value) {
        if (this.editor) {
            this.editor.setValue(value);
        }
    }

    getValue() {
        return this.editor?.getModel()?.getValue() || '';
    }

    dispose() {
        // 清理资源
        this.models.forEach(model => model.dispose());
        this.models.clear();

        this.disposables.forEach(d => d.dispose());
        this.disposables = [];

        if (this.editor) {
            this.editor.dispose();
            this.editor = null;
        }
    }
}

// 使用示例
const container = document.getElementById('editor-container');
const manager = new MonacoEditorManager(container);
manager.initialize({
    value: '// Welcome to Petal IDE\nfunc main() {\n    println("Hello, World!");\n}',
    language: 'petal'
}).then(editor => {
    console.log('Monaco Editor initialized successfully');
    // 进一步配置...
});

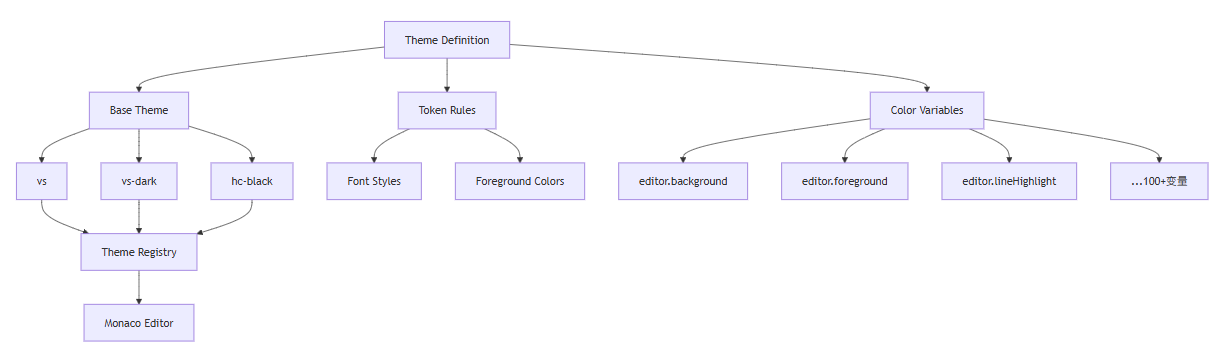

2.4 主题系统与定制

Monaco Editor支持完整的主题系统,包括语义化Token定义和颜色变量覆盖。

主题架构:

完整主题配置示例:

代码语言:javascript
复制
// 高对比度主题配置
const highContrastTheme = {
    base: 'hc-black',
    inherit: false,
    rules: [
        // 注释
        { token: 'comment', foreground: '608B4E', fontStyle: 'italic' },
        // 关键字
        { token: 'keyword', foreground: '569CD6', fontStyle: 'bold' },
        // 字符串
        { token: 'string', foreground: 'CE9178' },
        // 数字
        { token: 'number', foreground: 'B5CEA8' },
        // 类型
        { token: 'type', foreground: '4EC9B0', fontStyle: 'bold' },
        // 函数
        { token: 'function', foreground: 'DCDCAA' },
        // 变量
        { token: 'variable', foreground: '9CDCFE' },
        // 操作符
        { token: 'operator', foreground: 'D4D4D4' },
        // 标识符
        { token: 'identifier', foreground: 'D4D4D4' },
        // 常量
        { token: 'constant', foreground: '4FC1FF' }
    ],
    colors: {
        // 编辑器背景
        'editor.background': '#000000',
        'editor.foreground': '#D4D4D4',

        // 光标
        'editorCursor.foreground': '#AEAFAD',
        'editorCursor.background': '#000000',

        // 行号
        'editorLineNumber.foreground': '#6E6E6E',
        'editorLineNumber.activeForeground': '#C6C6C6',

        // 选中行高亮
        'editor.lineHighlightBackground': '#1A1A1A',
        'editor.lineHighlightBorder': '#1A1A1A',

        // 选择
        'editor.selectionBackground': '#264F78',
        'editor.inactiveSelectionBackground': '#3A3D41',

        // 当前行选择
        'editor.selectionHighlightBackground': '#ADD6FF40',

        // 单词选择高亮
        'editor.wordHighlightBackground': '#575757',
        'editor.wordHighlightBorder': '#424242',
        'editor.wordHighlightStrongBackground': '#663300',

        // 查找匹配
        'editor.findMatchBackground': '#A8AC94',
        'editor.findMatchHighlightBackground': '#EA5C0055',
        'editor.findMatchRangeHighlightBackground': '#EA5C0055',

        // 缩进参考线
        'editorIndentGuide.background': '#404040',
        'editorIndentGuide.activeBackground': '#707070',

        // 括号匹配
        'editorBracketMatch.background': '#0064001A',
        'editorBracketMatch.border': '#888888',

        // 链接
        'editorLink.foreground': '#4EC9B0',
        'editorHoverWidget.background': '#1E1E1E',
        'editorHoverWidget.border': '#454545',

        // 小地图
        'minimap.background': '#1E1E1E',

        // 滚动条
        'scrollbarSlider.background': '#79797966',
        'scrollbarSlider.hoverBackground': '#646464B3',
        'scrollbarSlider.activeBackground': '#BFBFBF66',

        // 建议窗口
        'editorSuggestWidget.background': '#1E1E1E',
        'editorSuggestWidget.border': '#454545',
        'editorSuggestWidget.foreground': '#D4D4D4',
        'editorSuggestWidget.selectedBackground': '#094767',
        'editorSuggestWidget.highlightForeground': '#4EC9B0',

        // 参数提示
        'editorParameterHint.foreground': '#D4D4D4',
        'editorParameterHint.background': '#1E1E1E',
        'editorParameterHint.border': '#454545',

        // 诊断错误
        'editorError.foreground': '#F14C4C',
        'editorWarning.foreground': '#CCA700',
        'editorInfo.foreground': '#3794FF',
        'editorHint.foreground': '#B3B3B3',

        // 折叠
        'editorGutter.background': '#1E1E1E',
        'editorBracketHighlight.foreground1': '#FFD700',
        'editorBracketHighlight.foreground2': '#DA70D6',
        'editorBracketHighlight.foreground3': '#00CED1'
    }
};

// 注册主题
monaco.editor.defineTheme('high-contrast-custom', highContrastTheme);

// 动态切换主题
function switchTheme(themeName) {
    monaco.editor.setTheme(themeName);
}

// 获取当前主题
function getCurrentTheme() {
    return monaco.editor.getTheme();
}
2.5 扩展机制与插件开发

Monaco Editor提供了强大的扩展机制,允许开发者注册自定义语言、主题、代码操作等。

扩展开发完整示例:

代码语言:javascript
复制
// Monaco Editor扩展开发框架
class MonacoExtensionFramework {
    constructor(monaco) {
        this.monaco = monaco;
        this.extensions = new Map();
    }

    // 注册自定义代码补全提供者
    registerCompletionProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerCompletionItemProvider(
            languageId,
            {
                triggerCharacters: ['.', ':', '<', '"', '/'],
                provideCompletionItems: (model, position, context) => {
                    return this.createCompletionResult(model, position, context, provider);
                },
                resolveCompletionItem: (item, token) => {
                    return this.resolveCompletionItem(item, token, provider);
                }
            }
        );
        this.extensions.set(`completion-${languageId}`, disposable);
        return disposable;
    }

    createCompletionResult(model, position, context, provider) {
        const wordInfo = model.getWordUntilPosition(position);
        const range = {
            startLineNumber: position.lineNumber,
            endLineNumber: position.lineNumber,
            startColumn: wordInfo.startColumn,
            endColumn: wordInfo.endColumn
        };

        const suggestions = provider.getCompletions(model, position, context);

        return {
            suggestions: suggestions.map(s => ({
                ...s,
                range: range
            })),
            incomplete: provider.incomplete || false
        };
    }

    resolveCompletionItem(item, token, provider) {
        if (provider.resolveCompletionItem) {
            return provider.resolveCompletionItem(item, token);
        }
        return item;
    }

    // 注册悬停提示提供者
    registerHoverProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerHoverProvider(
            languageId,
            {
                provideHover: (model, position, token) => {
                    return provider.getHover(model, position, token);
                }
            }
        );
        this.extensions.set(`hover-${languageId}`, disposable);
        return disposable;
    }

    // 注册诊断信息提供者
    registerDiagnosticsProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerCodeActionProvider(
            languageId,
            {
                provideCodeActions: (model, range, context, token) => {
                    return provider.getCodeActions(model, range, context, token);
                }
            }
        );
        this.extensions.set(`diagnostics-${languageId}`, disposable);
        return disposable;
    }

    // 注册折叠区域提供者
    registerFoldingProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerFoldingRangeProvider(
            languageId,
            {
                provideFoldingRanges: (model, context, token) => {
                    return provider.getFoldingRanges(model, context, token);
                }
            }
        );
        this.extensions.set(`folding-${languageId}`, disposable);
        return disposable;
    }

    // 注册格式化提供者
    registerFormattingProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerDocumentFormattingEditProvider(
            languageId,
            {
                provideDocumentFormattingEdits: (model, options, token) => {
                    return provider.formatDocument(model, options, token);
                }
            }
        );
        this.extensions.set(`formatting-${languageId}`, disposable);
        return disposable;
    }

    // 注册跳转到定义提供者
    registerDefinitionProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerDefinitionProvider(
            languageId,
            {
                provideDefinition: (model, position, token) => {
                    return provider.getDefinition(model, position, token);
                }
            }
        );
        this.extensions.set(`definition-${languageId}`, disposable);
        return disposable;
    }

    // 注册引用查找提供者
    registerReferenceProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerReferenceProvider(
            languageId,
            {
                provideReferences: (model, position, context, token) => {
                    return provider.getReferences(model, position, context, token);
                }
            }
        );
        this.extensions.set(`reference-${languageId}`, disposable);
        return disposable;
    }

    // 注册重命名提供者
    registerRenameProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerRenameProvider(
            languageId,
            {
                provideRenameEdits: (model, position, newName, token) => {
                    return provider.provideRenameEdits(model, position, newName, token);
                }
            }
        );
        this.extensions.set(`rename-${languageId}`, disposable);
        return disposable;
    }

    // 注册动作提供者
    registerCodeActionProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerCodeActionProvider(
            languageId,
            {
                provideCodeActions: (model, range, context, token) => {
                    return provider.getCodeActions(model, range, context, token);
                }
            }
        );
        this.extensions.set(`codeAction-${languageId}`, disposable);
        return disposable;
    }

    // 批量注册语言扩展
    registerLanguageExtension(languageId, extensionConfig) {
        const disposables = [];

        if (extensionConfig.completionProvider) {
            disposables.push(
                this.registerCompletionProvider(languageId, extensionConfig.completionProvider)
            );
        }

        if (extensionConfig.hoverProvider) {
            disposables.push(
                this.registerHoverProvider(languageId, extensionConfig.hoverProvider)
            );
        }

        if (extensionConfig.diagnosticsProvider) {
            disposables.push(
                this.registerDiagnosticsProvider(languageId, extensionConfig.diagnosticsProvider)
            );
        }

        if (extensionConfig.foldingProvider) {
            disposables.push(
                this.registerFoldingProvider(languageId, extensionConfig.foldingProvider)
            );
        }

        if (extensionConfig.formattingProvider) {
            disposables.push(
                this.registerFormattingProvider(languageId, extensionConfig.formattingProvider)
            );
        }

        if (extensionConfig.definitionProvider) {
            disposables.push(
                this.registerDefinitionProvider(languageId, extensionConfig.definitionProvider)
            );
        }

        if (extensionConfig.referenceProvider) {
            disposables.push(
                this.registerReferenceProvider(languageId, extensionConfig.referenceProvider)
            );
        }

        if (extensionConfig.renameProvider) {
            disposables.push(
                this.registerRenameProvider(languageId, extensionConfig.renameProvider)
            );
        }

        return {
            dispose: () => {
                disposables.forEach(d => d.dispose());
            }
        };
    }

    dispose() {
        this.extensions.forEach(disposable => disposable.dispose());
        this.extensions.clear();
    }
}

3 语言支持体系

本节为你提供的核心技术价值:深入理解Monaco Editor的语言支持机制,包括语法高亮、智能补全和错误诊断的实现原理。

3.1 语法高亮实现

Monaco Editor的语法高亮采用分层架构,底层是Monarch词法分析器,上层是语义Token提供者和主题渲染器。

语法高亮架构:

Monarch词法分析器配置:

代码语言:javascript
复制
// JavaScript/Monarch词法配置
monaco.languages.setMonarchTokensProvider('javascript', {
    // 默认变量
    defaultToken: '',
    ignoreCase: false,
    tokenPostfix: '.js',

    // 关键词
    keywords: [
        'break', 'case', 'catch', 'continue', 'debugger', 'default',
        'delete', 'do', 'else', 'export', 'extends', 'finally',
        'for', 'function', 'if', 'import', 'in', 'instanceof',
        'new', 'return', 'switch', 'this', 'throw', 'try',
        'typeof', 'var', 'void', 'while', 'with', 'yield',
        'class', 'const', 'enum', 'let', 'static', 'super',
        'implements', 'interface', 'package', 'private', 'protected',
        'public', 'abstract', 'as', 'async', 'await', 'from',
        'get', 'of', 'set', 'target', 'type', 'namespace'
    ],

    // 类型
    typeKeywords: [
        'any', 'boolean', 'double', 'dynamic', 'int', 'null',
        'num', 'Object', 'String', 'void', 'Never', 'unknown',
        'undefined', 'bigint', 'symbol'
    ],

    // 操作符
    operators: [
        '=', '>', '<', '!', '~', '?', ':',
        '==', '<=', '>=', '!=', '&&', '||', '++', '--',
        '+', '-', '*', '/', '&', '|', '^', '%', '<<',
        '>>', '>>>', '+=', '-=', '*=', '/=', '&=', '|=',
        '^=', '%=', '<<=', '>>=', '>>>='
    ],

    // 符号
    symbols: /[=><!~?:&|+\-*\/\^%]+/,

    // 转义字符
    escapes: /\\(?:[abfnrtv\\"']|x[0-9A-Fa-f]{1,4}|u[0-9A-Fa-f]{4}|U[0-9A-Fa-f]{8})/,

    // 整数
    integers: /0[xX][0-9a-fA-F]+|0[oO][0-7]+|0[bB][01]+|(?:\d(?:_?\d)*))(?:\.\d(?:_?\d)*)?(?:[eE][+-]?\d(?:_?\d)*)?/,

    // 浮点数
    floats: /(?:\d(?:_?\d)*)?\.(?:\d(?:_?\d)*)?(?:[eE][+-]?\d(?:_?\d)*)?/,

    // 词法分析器
    tokenizer: {
        root: [
            // 标识符和关键字
            [/[a-zA-Z_$][\w$]*/, {
                cases: {
                    '@keywords': 'keyword',
                    '@typeKeywords': 'type',
                    '@default': 'identifier'
                }
            }],

            // 分隔符
            [/[{}()\[\]]/, '@brackets'],
            [/[<>](?!@symbols)/, '@brackets'],

            // 分号和逗号
            [/[;,.]/, 'delimiter'],

            // 操作符
            [/@symbols/, {
                cases: {
                    '@operators': 'operator',
                    '@default': ''
                }
            }],

            // 数字
            [/0[xX][0-9a-fA-F]+/, 'number.hex'],
            [/0[oO][0-7]+/, 'number.octal'],
            [/0[bB][01]+/, 'number.binary'],
            [/(@integers)((?:_[0-9]+)*)/, ['number', 'number']],
            [/(@integers)?\.(@floats)((?:_[0-9]+)*)/, ['number', 'number.float', 'number']],

            // 字符串
            [/"([^"\\]|@escapes)*"/, 'string'],
            [/'([^'\\]|@escapes)*'/, 'string'],
            [/`([^`\\]|@escapes)*`/, 'string.template'],

            // 注释
            [/\/\/.*$/, 'comment'],
            [/\/\*/, 'comment', '@comment'],

            // 正则表达式
            [/\/(?!\{)[^\/\\]*(?:\\.[^\/\\]*)*\/[gimsuy]*/, 'regexp'],

            // HTML/XML
            [/<[^>]+>/, 'tag']
        ],

        comment: [
            [/[^\/*]+/, 'comment'],
            [/\/\*/, 'comment', '@push'],
            [/\*\/, 'comment', '@pop'],
            [/[\/*]/, 'comment']
        ]
    }
});

// 语言配置
monaco.languages.setLanguageConfiguration('javascript', {
    comments: {
        lineComment: '//',
        blockComment: ['/*', '*/']
    },
    brackets: [
        ['{', '}'],
        ['[', ']'],
        ['(', ')']
    ],
    autoClosingPairs: [
        { open: '{', close: '}', notIn: ['string', 'comment'] },
        { open: '[', close: ']', notIn: ['string', 'comment'] },
        { open: '(', close: ')', notIn: ['string', 'comment'] },
        { open: '"', close: '"', notIn: ['string', 'comment'] },
        { open: "'", close: "'", notIn: ['string', 'comment'] },
        { open: '`', close: '`', notIn: ['string', 'comment'] },
        { open: '/**', close: ' */', notIn: ['string', 'comment'] }
    ],
    surroundingPairs: [
        { open: '{', close: '}' },
        { open: '[', close: ']' },
        { open: '(', close: ')' },
        { open: '"', close: '"' },
        { open: "'", close: "'" },
        { open: '`', close: '`'}
    ],
    indentationRules: {
        increaseIndentPattern: /^\s*(\{|\[|(\b(else|finally|catch)\b(?!.*\)))\s*|(\}\s*else\b)|(\}\s*finally\b)|(\}\s*catch\b))/,
        decreaseIndentPattern: /^\s*((\}|\])|\b(else|catch|finally)\b(?!\s*{))/
    },
    folding: {
        markers: {
            start: /^\s*(\{|\[)/,
            end: /^\s*(\}|\])/
        }
    }
});
3.2 智能补全系统

Monaco Editor的智能补全系统基于**贡献点(Contribution Point)**机制,支持多种补全提供者。

补全提供者类型体系:

提供者类型

接口

触发时机

CompletionItemProvider

provideCompletionItems

任何时候

SnippetCompletionProvider

provideSnippets

Tab键

SuggestController

get.triggerCharacters

特定字符

QuickSuggest

quickSuggestions

快速输入

智能补全系统核心实现:

代码语言:javascript
复制
// Monaco智能补全系统
class SmartCompletionSystem {
    constructor(monaco) {
        this.monaco = monaco;
        this.providers = new Map();
        this.snippets = new Map();
        this.cache = new Map();
    }

    // 注册补全提供者
    registerProvider(languageId, provider) {
        const disposable = this.monaco.languages.registerCompletionItemProvider(
            languageId,
            {
                triggerCharacters: ['.', ':', '<', '"', '/', '@', '#'],
                supportInlineHighlights: true,
                provideCompletionItems: (model, position, context, token) => {
                    return this.provideCompletions(model, position, context, token, provider);
                },
                resolveCompletionItem: (item, token) => {
                    return this.resolveCompletionItem(item, token, provider);
                }
            }
        );

        this.providers.set(languageId, provider);
        return disposable;
    }

    async provideCompletions(model, position, context, token, provider) {
        // 获取补全上下文
        const completionContext = this.extractContext(model, position, context);

        // 检查缓存
        const cacheKey = this.getCacheKey(model, position, completionContext);
        if (this.cache.has(cacheKey)) {
            return this.cache.get(cacheKey);
        }

        // 获取补全项
        let items = [];

        // 1. 词法级补全(关键字、符号)
        items.push(...this.getLexicalCompletions(completionContext));

        // 2. 语义级补全(标识符、类型)
        if (provider.getSemanticCompletions) {
            items.push(...await provider.getSemanticCompletions(completionContext, token));
        }

        // 3. 片段补全(Snippet)
        items.push(...this.getSnippetCompletions(completionContext));

        // 4. 路径补全(导入语句)
        if (completionContext.inImport) {
            items.push(...await this.getPathCompletions(completionContext));
        }

        // 排序和过滤
        items = this.rankAndFilter(items, completionContext);

        // 转换为Monaco格式
        const result = this.convertToMonacoFormat(items, model, position);

        // 缓存结果
        this.cache.set(cacheKey, result);

        return result;
    }

    extractContext(model, position, context) {
        const lineContent = model.getLineContent(position.lineNumber);
        const beforeCursor = lineContent.substring(0, position.column - 1);

        // 提取当前单词
        const wordMatch = beforeCursor.match(/(\w+)$/);
        const currentWord = wordMatch ? wordMatch[1] : '';
        const prefix = currentWord;

        // 检测是否在字符串内
        const inString = this.isInString(lineContent, position.column - 1);

        // 检测是否在注释内
        const inComment = this.isInComment(lineContent, position.column - 1);

        // 检测导入语句
        const inImport = /^(\s*)(import|from|require)\s/.test(beforeCursor);

        return {
            model,
            position,
            lineContent,
            beforeCursor,
            currentWord,
            prefix,
            inString,
            inComment,
            inImport,
            triggerCharacter: context.triggerCharacter,
            triggerKind: context.triggerKind
        };
    }

    isInString(line, column) {
        let inString = false;
        let stringChar = null;

        for (let i = 0; i < column; i++) {
            const char = line[i];
            if (char === stringChar) {
                inString = false;
                stringChar = null;
            } else if (!inString && (char === '"' || char === "'" || char === '`')) {
                inString = true;
                stringChar = char;
            } else if (char === '\\' && inString) {
                i++;
            }
        }

        return inString;
    }

    isInComment(line, column) {
        const beforeCursor = line.substring(0, column);
        return beforeCursor.includes('//') || beforeCursor.includes('/*');
    }

    getCacheKey(model, position, context) {
        const offset = model.getOffsetAt(position);
        return `${model.getURI().toString()}:${offset}:${context.prefix}:${context.triggerCharacter}`;
    }

    getLexicalCompletions(context) {
        const completions = [];

        // JavaScript关键字
        const keywords = {
            'async': { detail: 'async function', insertText: 'async ' },
            'await': { detail: 'await expression', insertText: 'await ' },
            'function': { detail: 'function declaration', insertText: 'function ${1:name}($2) {\n\t$0\n}' },
            'const': { detail: 'constant declaration', insertText: 'const ${1:name} = $0;' },
            'class': { detail: 'class declaration', insertText: 'class ${1:name} {\n\t$0\n}' },
            'import': { detail: 'import statement', insertText: "import { $0 } from '${1:module}';" },
            'export': { detail: 'export statement', insertText: 'export ' },
            'if': { detail: 'if statement', insertText: 'if ($1) {\n\t$0\n}' },
            'for': { detail: 'for loop', insertText: 'for (let ${1:i} = 0; ${1:i} < ${2:length}; ${1:i}++) {\n\t$0\n}' },
            'try': { detail: 'try-catch block', insertText: 'try {\n\t$1\n} catch (${2:error}) {\n\t$0\n}' },
            'null': { detail: 'null value', insertText: 'null' },
            'undefined': { detail: 'undefined value', insertText: 'undefined' },
            'true': { detail: 'boolean true', insertText: 'true' },
            'false': { detail: 'boolean false', insertText: 'false' }
        };

        const lowerPrefix = context.prefix.toLowerCase();

        Object.entries(keywords).forEach(([keyword, meta]) => {
            if (!context.prefix || keyword.startsWith(lowerPrefix)) {
                completions.push({
                    label: keyword,
                    kind: this.monaco.languages.CompletionItemKind.Keyword,
                    detail: meta.detail,
                    insertText: meta.insertText,
                    insertTextRules: meta.insertText.includes('${')
                        ? this.monaco.languages.CompletionItemInsertTextRule.InsertAsSnippet
                        : undefined,
                    range: {
                        startLineNumber: context.position.lineNumber,
                        endLineNumber: context.position.lineNumber,
                        startColumn: context.position.column - context.prefix.length,
                        endColumn: context.position.column
                    },
                    sortText: `1_${keyword}`
                });
            }
        });

        return completions;
    }

    getSnippetCompletions(context) {
        const snippets = [
            { label: 'log', detail: 'console.log', insertText: "console.log($0);" },
            { label: 'warn', detail: 'console.warn', insertText: "console.warn($0);" },
            { label: 'error', detail: 'console.error', insertText: "console.error($0);" },
            { label: 'trycatch', detail: 'try-catch block', insertText: "try {\n\t$1\n} catch (${2:error}) {\n\tconsole.error(${2:error});\n\t$0\n}" },
            { label: 'fore', detail: 'forEach loop', insertText: "${1:array}.forEach((${2:item}) => {\n\t$0\n});" },
            { label: 'prom', detail: 'Promise', insertText: "new Promise((resolve, reject) => {\n\t$0\n});" },
            { label: 'af', detail: 'async function', insertText: "async function ${1:name}($2) {\n\t$0\n}" },
            { label: 'cl', detail: 'class', insertText: "class ${1:ClassName} {\n\tconstructor($2) {\n\t\t$0\n\t}\n}" },
            { label: 'im', detail: 'import', insertText: "import { $0 } from '${1:module}';" },
            { label: 'todo', detail: 'TODO comment', insertText: "// TODO: $0" }
        ];

        const lowerPrefix = context.prefix.toLowerCase();
        return snippets
            .filter(s => !context.prefix || s.label.startsWith(lowerPrefix))
            .map(s => ({
                label: s.label,
                kind: this.monaco.languages.CompletionItemKind.Snippet,
                detail: s.detail,
                insertText: s.insertText,
                insertTextRules: this.monaco.languages.CompletionItemInsertTextRule.InsertAsSnippet,
                range: {
                    startLineNumber: context.position.lineNumber,
                    endLineNumber: context.position.lineNumber,
                    startColumn: context.position.column - context.prefix.length,
                    endColumn: context.position.column
                },
                sortText: `2_${s.label}`
            }));
    }

    async getPathCompletions(context) {
        const suggestions = [];
        const pathMatch = context.beforeCursor.match(/from\s+['"]([^'"]*?)['"]$/);

        if (!pathMatch) return suggestions;

        const partialPath = pathMatch[1];
        const pathSuggestions = [
            { label: './components', detail: 'Directory' },
            { label: './utils', detail: 'Directory' },
            { label: './hooks', detail: 'Directory' },
            { label: 'react', detail: 'npm package' },
            { label: 'react-dom', detail: 'npm package' },
            { label: 'lodash', detail: 'npm package' }
        ];

        pathSuggestions.forEach(s => {
            if (s.label.startsWith(partialPath)) {
                suggestions.push({
                    label: s.label,
                    kind: s.detail === 'npm package'
                        ? this.monaco.languages.CompletionItemKind.Module
                        : this.monaco.languages.CompletionItemKind.Folder,
                    detail: s.detail,
                    insertText: s.label.substring(partialPath.length),
                    range: {
                        startLineNumber: context.position.lineNumber,
                        endLineNumber: context.position.lineNumber,
                        startColumn: context.position.column - partialPath.length,
                        endColumn: context.position.column
                    }
                });
            }
        });

        return suggestions;
    }

    rankAndFilter(items, context) {
        return items.map(item => {
            let score = 0;
            const label = item.label.toLowerCase();
            const prefix = context.prefix.toLowerCase();

            if (label === prefix) score += 100;
            else if (label.startsWith(prefix)) score += 50;
            else if (label.includes(prefix)) score += 20;

            switch (item.kind) {
                case this.monaco.languages.CompletionItemKind.Keyword:
                    score += 5; break;
                case this.monaco.languages.CompletionItemKind.Snippet:
                    score += 3; break;
                case this.monaco.languages.CompletionItemKind.Method:
                    score += 8; break;
            }

            return { ...item, score };
        }).sort((a, b) => b.score - a.score);
    }

    convertToMonacoFormat(items, model, position) {
        const wordInfo = model.getWordUntilPosition(position);

        return {
            suggestions: items.map(item => ({
                ...item,
                range: item.range || {
                    startLineNumber: position.lineNumber,
                    endLineNumber: position.lineNumber,
                    startColumn: wordInfo.startColumn,
                    endColumn: wordInfo.endColumn
                }
            })),
            incomplete: items.length > 100
        };
    }

    resolveCompletionItem(item, token, provider) {
        if (provider.resolveCompletionItem) {
            return provider.resolveCompletionItem(item, token);
        }
        return item;
    }
}
3.3 错误诊断与修复

Monaco Editor的错误诊断系统支持多种诊断来源,并提供快速修复功能。

诊断系统架构:

诊断系统完整实现:

代码语言:javascript
复制
// Monaco诊断与修复系统
class DiagnosticSystem {
    constructor(monaco) {
        this.monaco = monaco;
        this.markers = new Map();
        this.codeActions = new Map();
        this.linter = null;
    }

    // 初始化诊断系统
    initialize(languageId, options = {}) {
        this.languageId = languageId;
        this.linter = options.linter || new DefaultLinter(this.monaco);

        // 注册代码操作提供者
        this.registerCodeActionProvider(languageId);

        // 注册悬停诊断提供者
        this.registerHoverProvider(languageId);

        return this;
    }

    registerCodeActionProvider(languageId) {
        this.monaco.languages.registerCodeActionProvider(languageId, {
            provideCodeActions: (model, range, context, token) => {
                return this.provideCodeActions(model, range, context, token);
            },
            resolveCodeAction: (action, token) => {
                return this.resolveCodeAction(action, token);
            }
        });
    }

    registerHoverProvider(languageId) {
        this.monaco.languages.registerHoverProvider(languageId, {
            provideHover: (model, position, token) => {
                return this.provideHover(model, position, token);
            }
        });
    }

    // 获取诊断信息
    async getDiagnostics(model) {
        const uri = model.uri.toString();
        const content = model.getValue();

        // 使用linter进行诊断
        const diagnostics = await this.linter.lint(content, model);

        // 转换为Monaco标记格式
        const markers = diagnostics.map(d => this.toMarker(d));

        // 缓存诊断结果
        this.markers.set(uri, diagnostics);

        // 更新编辑器标记
        this.monaco.editor.setModelMarkers(model, 'linter', markers);

        return markers;
    }

    toMarker(diagnostic) {
        return {
            severity: this.toSeverity(diagnostic.severity),
            startLineNumber: diagnostic.range.startLine,
            startColumn: diagnostic.range.startColumn,
            endLineNumber: diagnostic.range.endLine,
            endColumn: diagnostic.range.endColumn,
            message: diagnostic.message,
            source: diagnostic.source || 'Linter',
            code: diagnostic.code,
            relatedInformation: diagnostic.relatedInformation
        };
    }

    toSeverity(severity) {
        switch (severity) {
            case 'error':
            case 2:
                return this.monaco.MarkerSeverity.Error;
            case 'warning':
            case 1:
                return this.monaco.MarkerSeverity.Warning;
            case 'info':
            case 0:
                return this.monaco.MarkerSeverity.Info;
            case 'hint':
                return this.monaco.MarkerSeverity.Hint;
            default:
                return this.monaco.MarkerSeverity.Error;
        }
    }

    provideCodeActions(model, range, context, token) {
        const diagnostics = context.markers || [];
        const actions = [];

        diagnostics.forEach(diagnostic => {
            const fixes = this.getFixesForDiagnostic(diagnostic);
            actions.push(...fixes);
        });

        return {
            actions: actions.map(action => ({
                title: action.title,
                edit: action.edit,
                diagnostics: action.diagnostics,
                kind: action.kind || 'quickfix',
                isPreferred: action.isPreferred || false
            })),
            dispose: () => {}
        };
    }

    getFixesForDiagnostic(diagnostic) {
        const fixes = [];

        switch (diagnostic.code) {
            case 'no-unused-variable':
                fixes.push({
                    title: 'Remove unused variable',
                    edit: { model: diagnostic.model, range: diagnostic.range, text: '' },
                    diagnostics: [diagnostic],
                    kind: 'quickfix',
                    isPreferred: true
                });
                fixes.push({
                    title: 'Prefix with underscore',
                    edit: { model: diagnostic.model, range: diagnostic.range, text: '_' + diagnostic.text },
                    diagnostics: [diagnostic],
                    kind: 'quickfix'
                });
                break;

            case 'missing-semicolon':
                fixes.push({
                    title: 'Add semicolon',
                    edit: {
                        model: diagnostic.model,
                        range: {
                            startLineNumber: diagnostic.range.endLineNumber,
                            startColumn: diagnostic.range.endColumn,
                            endLineNumber: diagnostic.range.endLineNumber,
                            endColumn: diagnostic.range.endColumn
                        },
                        text: ';'
                    },
                    diagnostics: [diagnostic],
                    kind: 'quickfix',
                    isPreferred: true
                });
                break;

            case 'no-console':
                fixes.push({
                    title: 'Remove console statement',
                    edit: { model: diagnostic.model, range: diagnostic.range, text: '' },
                    diagnostics: [diagnostic],
                    kind: 'quickfix',
                    isPreferred: true
                });
                break;
        }

        return fixes;
    }

    resolveCodeAction(action, token) {
        return action;
    }

    provideHover(model, position, token) {
        const uri = model.uri.toString();
        const diagnostics = this.markers.get(uri) || [];

        const diagnostic = diagnostics.find(d =>
            d.range.startLine <= position.lineNumber &&
            d.range.endLine >= position.lineNumber &&
            d.range.startColumn <= position.column &&
            d.range.endColumn >= position.column
        );

        if (!diagnostic) return null;

        const contents = [];
        contents.push({
            value: `**${diagnostic.severity.toUpperCase()}**: ${diagnostic.message}`
        });

        if (diagnostic.code) {
            contents.push({ value: `\`${diagnostic.code}\`` });
        }

        const fixes = this.getFixesForDiagnostic(diagnostic);
        if (fixes.length > 0) {
            contents.push({ value: '**Quick Fixes:**', isTrusted: false });
            fixes.slice(0, 3).forEach(fix => {
                contents.push({ value: `- ${fix.title}`, isTrusted: false });
            });
        }

        return {
            contents,
            range: {
                startLineNumber: diagnostic.range.startLine,
                endLineNumber: diagnostic.range.endLine,
                startColumn: diagnostic.range.startColumn,
                endColumn: diagnostic.range.endColumn
            }
        };
    }

    clearDiagnostics(model) {
        const uri = model.uri.toString();
        this.markers.delete(uri);
        this.monaco.editor.setModelMarkers(model, 'linter', []);
    }

    dispose() {
        this.markers.clear();
        this.codeActions.clear();
    }
}

// 默认Linter实现
class DefaultLinter {
    constructor(monaco) {
        this.monaco = monaco;
    }

    async lint(content, model) {
        const diagnostics = [];
        const lines = content.split('\n');

        lines.forEach((line, index) => {
            const lineNumber = index + 1;

            // 检测未使用的变量
            const unusedVarMatch = line.match(/\b(const|let|var)\s+(\w+)\s*=/);
            if (unusedVarMatch) {
                diagnostics.push({
                    severity: 'warning',
                    code: 'no-unused-variable',
                    message: `'${unusedVarMatch[2]}' is declared but its value is never used`,
                    source: 'ESLint',
                    range: {
                        startLine: lineNumber,
                        startColumn: line.indexOf(unusedVarMatch[2]) + 1,
                        endLine: lineNumber,
                        endColumn: line.indexOf(unusedVarMatch[2]) + unusedVarMatch[2].length + 1
                    }
                });
            }

            // 检测console语句
            if (/\bconsole\.(log|debug|info|warn|error)\b/.test(line)) {
                const consoleMatch = line.match(/\bconsole\.\w+\b/);
                diagnostics.push({
                    severity: 'warning',
                    code: 'no-console',
                    message: `Unexpected console statement`,
                    source: 'ESLint',
                    range: {
                        startLine: lineNumber,
                        startColumn: line.indexOf(consoleMatch[0]) + 1,
                        endLine: lineNumber,
                        endColumn: line.indexOf(consoleMatch[0]) + consoleMatch[0].length + 1
                    }
                });
            }
        });

        return diagnostics;
    }
}

4 协同编辑原理与实现

本节为你提供的核心技术价值:掌握CRDT理论基础,理解Y.js如何实现无冲突协同编辑,以及如何在Monaco中集成协同编辑功能。

4.1 CRDT理论基础

协同编辑的核心挑战在于如何在分布式环境下保持数据一致性。传统的OT(Operational Transformation)算法通过变换操作来消除冲突,而CRDT(Conflict-free Replicated Data Type)则通过设计天然支持合并的数据结构来解决问题。

CRDT vs OT对比:

特性

CRDT

OT

理论基础

数学证明的可交换数据结构

操作变换代数

冲突解决

自动合并,无需服务器仲裁

需要中央服务器变换

网络延迟

支持高延迟,离线编辑

需要低延迟连接

实现复杂度

中等

较高

内存开销

较高(需保存完整历史)

较低

扩展性

好(去中心化)

较差(中心化)

代表实现

Y.js, Automerge

Google Docs

CRDT分类:

4.2 Y.js核心概念

Y.js是一个高性能的CRDT实现,专门为协作应用设计。

Y.js架构:

Y.js关键概念:

  1. Y.Doc:文档容器,包含所有共享类型
  2. Shared Types:Y.Text, Y.Map, Y.Array等
  3. Transaction:事务,用于批量更新
  4. Update:更新消息,用于同步
  5. Awareness:状态感知,用于显示其他用户的光标位置
4.3 协同编辑完整实现

以下是Monaco Editor与Y.js集成的完整实现:

代码语言:javascript
复制
// Monaco Editor协同编辑系统完整实现
class CollaborativeEditor {
    constructor(options = {}) {
        this.options = {
            serverUrl: options.serverUrl || 'ws://localhost:1234',
            roomName: options.roomName || 'default-room',
            user: options.user || {
                name: 'Anonymous',
                color: '#' + Math.floor(Math.random()*16777215).toString(16)
            },
            monaco: options.monaco,
            editor: null,
            ...options
        };

        this.ydoc = null;
        this.provider = null;
        this.awareness = null;
        this.ymap = null;
        this.isLocalChange = false;
        this.disposables = [];
    }

    // 初始化协同编辑
    async initialize() {
        // 创建Y.Doc
        this.ydoc = new Y.Doc();

        // 连接到WebSocket服务器
        this.provider = new WebsocketProvider(
            this.options.serverUrl,
            this.options.roomName,
            this.ydoc
        );

        // 获取awareness
        this.awareness = this.provider.awareness;

        // 设置本地用户状态
        this.awareness.setLocalStateField('user', {
            name: this.options.user.name,
            color: this.options.user.color,
            cursor: null
        });

        // 获取或创建文本类型
        this.ymap = this.ydoc.getMap('monaco');

        // 初始化Monaco编辑器
        await this.initializeMonaco();

        // 设置事件监听
        this.setupEventListeners();

        // 设置协同感知
        this.setupAwareness();

        return this;
    }

    async initializeMonaco() {
        const monaco = this.options.monaco;

        // 创建编辑器实例
        this.options.editor = monaco.editor.create(document.getElementById('editor'), {
            value: '',
            language: 'javascript',
            theme: 'vs-dark',
            automaticLayout: true
        });

        this.editor = this.options.editor;
        this.model = this.editor.getModel();

        // 从Y.Map同步到Monaco
        this.syncFromYjs();

        // 监听Y.Map变化
        this.ymap.observe(event => {
            if (!this.isLocalChange) {
                this.syncFromYjs();
            }
        });
    }

    setupEventListeners() {
        // 监听Monaco内容变化
        const contentDisposable = this.editor.onDidChangeModelContent(event => {
            if (this.isLocalChange) return;

            this.isLocalChange = true;

            this.ydoc.transact(() => {
                event.changes.forEach(change => {
                    const delta = this.eventToDelta(change);
                    this.applyDeltaToYText(delta);
                });
            });

            this.isLocalChange = false;
        });

        this.disposables.push(contentDisposable);

        // 监听光标位置变化
        const cursorDisposable = this.editor.onDidChangeCursorPosition(event => {
            this.awareness.setLocalStateField('cursor', {
                position: event.position,
                selection: this.editor.getSelection()
            });
        });

        this.disposables.push(cursorDisposable);

        // 监听选择变化
        const selectionDisposable = this.editor.onDidChangeCursorSelection(event => {
            this.awareness.setLocalStateField('selection', event.selection);
        });

        this.disposables.push(selectionDisposable);
    }

    setupAwareness() {
        // 监听其他用户状态变化
        this.awareness.on('change', changes => {
            this.updateRemoteCursors();
        });

        // 监听连接状态
        this.provider.on('status', event => {
            console.log('Connection status:', event.status);
        });
    }

    // 将Monaco事件转换为Y.Text delta
    eventToDelta(change) {
        return {
            range: {
                startColumn: change.rangeOffset,
                endColumn: change.rangeLength
            },
            text: change.text
        };
    }

    // 应用delta到Y.Text
    applyDeltaToYText(delta) {
        const ytext = this.ydoc.getText('content');

        if (delta.text) {
            ytext.insert(delta.range.startColumn, delta.text);
        }
        if (delta.range.endColumn > delta.range.startColumn) {
            ytext.delete(delta.range.startColumn, delta.range.endColumn - delta.range.startColumn);
        }
    }

    // 从Y.Map同步到Monaco
    syncFromYjs() {
        const content = this.ymap.get('content') || '';

        if (this.model.getValue() !== content) {
            this.isLocalChange = true;
            this.model.setValue(content);
            this.isLocalChange = false;
        }
    }

    // 同步Monaco内容到Y.Map
    syncToYjs() {
        const content = this.model.getValue();
        this.ymap.set('content', content);
    }

    // 更新远程用户光标
    updateRemoteCursors() {
        const states = this.awareness.getStates();

        this.editor.deltaDecorations(
            this.remoteDecorations || [],
            []
        );

        const decorations = [];

        states.forEach((state, clientId) => {
            if (clientId === this.ydoc.clientID) return;

            if (state.user && state.cursor) {
                decorations.push({
                    range: new monaco.Range(
                        state.cursor.position.lineNumber,
                        state.cursor.position.column,
                        state.cursor.position.lineNumber,
                        state.cursor.position.column
                    ),
                    options: {
                        className: `remote-cursor-${clientId}`,
                        beforeContentClassName: `remote-cursor-marker-${clientId}`,
                        hoverMessage: { value: state.user.name },
                        stickiness: monaco.editor.TrackedRangeStickiness.NeverGrowsWhenTypingAtEdges
                    }
                });

                if (state.selection) {
                    decorations.push({
                        range: state.selection,
                        options: {
                            className: `remote-selection-${clientId}`,
                            hoverMessage: { value: `${state.user.name}'s selection` }
                        }
                    });
                }
            }
        });

        this.remoteDecorations = this.editor.deltaDecorations([], decorations);
        this.addRemoteCursorStyles(states);
    }

    addRemoteCursorStyles(states) {
        let styleElement = document.getElementById('remote-cursor-styles');
        if (!styleElement) {
            styleElement = document.createElement('style');
            styleElement.id = 'remote-cursor-styles';
            document.head.appendChild(styleElement);
        }

        let css = '';
        states.forEach((state, clientId) => {
            if (clientId === this.ydoc.clientID) return;

            if (state.user) {
                const color = state.user.color || '#ff0000';

                css += `
                    .remote-cursor-${clientId} {
                        border-left: 2px solid ${color};
                        margin-left: -1px;
                    }
                    .remote-cursor-marker-${clientId}::before {
                        content: '';
                        position: absolute;
                        border-left: 6px solid transparent;
                        border-right: 6px solid transparent;
                        border-bottom: 10px solid ${color};
                        transform: translate(-5px, -12px);
                    }
                    .remote-selection-${clientId} {
                        background-color: ${color}40;
                    }
                `;
            }
        });

        styleElement.textContent = css;
    }

    // 获取连接状态
    isConnected() {
        return this.provider && this.provider.wsconnected;
    }

    // 获取在线用户列表
    getConnectedUsers() {
        const users = [];
        const states = this.awareness.getStates();

        states.forEach((state, clientId) => {
            if (state.user) {
                users.push({
                    clientId,
                    name: state.user.name,
                    color: state.user.color
                });
            }
        });

        return users;
    }

    // 销毁
    dispose() {
        this.disposables.forEach(d => d.dispose());

        if (this.awareness) this.awareness.destroy();
        if (this.provider) this.provider.destroy();
        if (this.ydoc) this.ydoc.destroy();
        if (this.editor) this.editor.dispose();
    }
}

// WebSocket提供者实现
class WebsocketProvider {
    constructor(serverUrl, roomName, ydoc) {
        this.serverUrl = serverUrl;
        this.roomName = roomName;
        this.ydoc = ydoc;

        this.ws = null;
        this.wsconnected = false;
        this.wsconnecting = false;

        this.awareness = new Awareness(ydoc);

        this.connect();
    }

    connect() {
        if (this.wsconnecting) return;

        this.wsconnecting = true;

        try {
            this.ws = new WebSocket(`${this.serverUrl}/${this.roomName}`);

            this.ws.onopen = () => {
                this.wsconnected = true;
                this.wsconnecting = false;
                this.emit('status', { status: 'connected' });
                this.sendSync();
            };

            this.ws.onclose = () => {
                this.wsconnected = false;
                this.wsconnecting = false;
                this.emit('status', { status: 'disconnected' });
                this.scheduleReconnect();
            };

            this.ws.onerror = (error) => {
                console.error('WebSocket error:', error);
            };

            this.ws.onmessage = (event) => {
                this.handleMessage(event.data);
            };

        } catch (error) {
            console.error('Failed to connect:', error);
            this.scheduleReconnect();
        }
    }

    scheduleReconnect() {
        if (this._reconnectTimeout) {
            clearTimeout(this._reconnectTimeout);
        }

        this._reconnectTimeout = setTimeout(() => {
            this.connect();
        }, 10000);
    }

    sendSync() {
        // 发送完整文档状态
        const state = Y.encodeStateAsUpdate(this.ydoc);
        this.send({ type: 'sync', data: Array.from(state) });
    }

    send(message) {
        if (this.ws && this.wsconnected) {
            this.ws.send(JSON.stringify(message));
        }
    }

    handleMessage(data) {
        try {
            const message = JSON.parse(data);

            switch (message.type) {
                case 'sync':
                    const update = new Uint8Array(message.data);
                    Y.applyUpdate(this.ydoc, update);
                    break;

                case 'awareness':
                    this.awareness.setStates(message.states);
                    break;

                case 'update':
                    const incrementalUpdate = new Uint8Array(message.data);
                    Y.applyUpdate(this.ydoc, incrementalUpdate);
                    break;
            }
        } catch (error) {
            console.error('Failed to handle message:', error);
        }
    }

    emit(event, data) {
        // 事件触发
    }

    destroy() {
        if (this._reconnectTimeout) {
            clearTimeout(this._reconnectTimeout);
        }

        if (this.ws) {
            this.ws.close();
        }

        this.awareness.destroy();
    }
}

// Awareness状态管理
class Awareness {
    constructor(ydoc) {
        this.ydoc = ydoc;
        this.states = new Map();
        this.localState = null;
        this.listeners = new Set();
    }

    setLocalState(state) {
        this.localState = state;
        this.broadcastState();
    }

    setLocalStateField(field, value) {
        if (!this.localState) {
            this.localState = {};
        }
        this.localState[field] = value;
        this.broadcastState();
    }

    getLocalState() {
        return this.localState;
    }

    getStates() {
        return this.states;
    }

    setStates(states) {
        this.states = states;
        this.emit('change', { states });
    }

    broadcastState() {
        // 广播状态到服务器
    }

    on(event, callback) {
        this.listeners.add(callback);
    }

    off(event, callback) {
        this.listeners.delete(callback);
    }

    emit(event, data) {
        this.listeners.forEach(callback => callback(data));
    }

    destroy() {
        this.listeners.clear();
        this.states.clear();
    }
}
4.4 协同编辑服务器实现

服务端需要处理多客户端同步和状态广播:

代码语言:javascript
复制
// 协同编辑WebSocket服务器
class CollaborationServer {
    constructor(port = 1234) {
        this.port = port;
        this.rooms = new Map();
        this.clients = new Map();
    }

    start() {
        const WebSocket = require('ws');

        this.wss = new WebSocket.Server({ port: this.port });

        this.wss.on('connection', (ws, req) => {
            const url = new URL(req.url, `http://localhost:${this.port}`);
            const roomName = url.pathname.slice(1) || 'default';

            this.handleConnection(ws, roomName);
        });

        console.log(`Collaboration server running on port ${this.port}`);
    }

    handleConnection(ws, roomName) {
        if (!this.rooms.has(roomName)) {
            this.rooms.set(roomName, {
                clients: new Set(),
                state: null,
                awareness: new Map()
            });
        }

        const room = this.rooms.get(roomName);
        room.clients.add(ws);

        const clientId = this.generateClientId();
        this.clients.set(ws, { roomName, clientId });

        ws.send(JSON.stringify({
            type: 'welcome',
            clientId: clientId
        }));

        if (room.state) {
            ws.send(JSON.stringify({
                type: 'sync',
                data: Array.from(room.state)
            }));
        }

        this.broadcast(roomName, {
            type: 'awareness',
            action: 'add',
            clientId: clientId,
            states: Array.from(room.awareness.entries())
        }, ws);

        ws.on('message', (data) => {
            try {
                const message = JSON.parse(data);
                this.handleMessage(ws, roomName, message);
            } catch (error) {
                console.error('Failed to parse message:', error);
            }
        });

        ws.on('close', () => {
            this.handleDisconnect(ws, roomName);
        });
    }

    handleMessage(ws, roomName, message) {
        const room = this.rooms.get(roomName);

        switch (message.type) {
            case 'sync':
                room.state = new Uint8Array(message.data);
                this.broadcast(roomName, {
                    type: 'sync',
                    data: message.data
                }, ws);
                break;

            case 'update':
                const update = new Uint8Array(message.data);
                if (room.state) {
                    room.state = this.mergeUpdates(room.state, update);
                } else {
                    room.state = update;
                }

                this.broadcast(roomName, {
                    type: 'update',
                    data: message.data
                }, ws);
                break;

            case 'awareness':
                const clientId = this.clients.get(ws).clientId;
                room.awareness.set(clientId, message.state);

                this.broadcast(roomName, {
                    type: 'awareness',
                    clientId: clientId,
                    state: message.state
                }, ws);
                break;
        }
    }

    handleDisconnect(ws, roomName) {
        const room = this.rooms.get(roomName);
        const clientInfo = this.clients.get(ws);

        if (room && clientInfo) {
            room.clients.delete(ws);
            room.awareness.delete(clientInfo.clientId);

            this.broadcast(roomName, {
                type: 'awareness',
                action: 'remove',
                clientId: clientInfo.clientId
            });

            if (room.clients.size === 0) {
                this.rooms.delete(roomName);
            }
        }

        this.clients.delete(ws);
    }

    broadcast(roomName, message, exclude = null) {
        const room = this.rooms.get(roomName);
        if (!room) return;

        const messageStr = JSON.stringify(message);

        room.clients.forEach(client => {
            if (client !== exclude && client.readyState === WebSocket.OPEN) {
                client.send(messageStr);
            }
        });
    }

    mergeUpdates(state1, state2) {
        return state1.length > state2.length ? state1 : state2;
    }

    generateClientId() {
        return Math.random().toString(36).substring(2, 15);
    }

    stop() {
        this.wss.close();
    }
}

5 性能优化策略

本节为你提供的核心技术价值:掌握Monaco Editor的性能优化技术,包括虚拟滚动、大文件处理和WebWorker优化。

5.1 虚拟滚动实现

Monaco Editor默认使用虚拟滚动,但在大文件和复杂场景下需要额外优化。

虚拟滚动原理:

虚拟滚动配置与优化:

代码语言:javascript
复制
// Monaco虚拟滚动优化配置
class VirtualScrollOptimizer {
    constructor(monaco) {
        this.monaco = monaco;
    }

    getOptimizedOptions() {
        return {
            // 滚动设置
            scrollBeyondLastLine: false,
            smoothScrolling: true,
            mouseWheelZoom: true,
            scrollbar: {
                vertical: 'visible',
                horizontal: 'visible',
                verticalScrollbarSize: 14,
                horizontalScrollbarSize: 14,
                useShadows: false
            },

            // 渲染优化
            renderingOptions: {
                GuessedIndentGuides: false,
                bracketGuides: false,
                highlightActiveLine: true,
                selectionHighlight: true,
                occurrencesHighlight: 'off',
                codeLens: false,
                glyphMargin: false
            },

            // 视图优化
            viewInfo: {
                extraEditorClassName: '',
                fixedOverflowWidgets: true,
                showGlyphMargin: false,
                wordWrap: 'off'
            },

            // 大文件优化
            largeFileOptimization: true,
            maxTokenizationLineLength: 15000,

            // 性能关键选项
            suggest: {
                showWords: false,
                insertMode: 'replace'
            },

            quickSuggestions: false,
            cursorSmoothCaretAnimation: 'off',
            cursorBlinking: 'solid',
            renderLineHighlight: 'line',
            renderWhitespace: 'none',
            matchBrackets: 'never',
            folding: true,
            foldingHighlight: false
        };
    }

    // 动态调整选项
    adjustForFileSize(options, lineCount) {
        if (lineCount > 10000) {
            return {
                ...options,
                renderingOptions: {
                    ...options.renderingOptions,
                    bracketGuides: false,
                    highlightActiveLine: false,
                    selectionHighlight: false,
                    occurrencesHighlight: 'off'
                },
                suggest: {
                    showWords: false,
                    insertMode: 'replace',
                    showMethods: false,
                    showFunctions: false,
                    showConstructors: false,
                    showFields: false,
                    showVariables: false,
                    showClasses: false,
                    showKeywords: true,
                    showSnippets: true
                },
                quickSuggestions: false,
                wordBasedSuggestions: false,
                parameterHints: { enabled: false },
                hover: { enabled: false }
            };
        } else if (lineCount > 5000) {
            return {
                ...options,
                renderingOptions: {
                    ...options.renderingOptions,
                    bracketGuides: false,
                    selectionHighlight: false
                },
                quickSuggestions: false,
                wordBasedSuggestions: 'currentDocument'
            };
        }

        return options;
    }

    createVirtualScrollManager(editor) {
        return {
            getVisibleRange: () => {
                const visibleRanges = editor.getVisibleRanges();
                if (visibleRanges.length === 0) return null;

                return {
                    startLineNumber: visibleRanges[0].startLineNumber,
                    endLineNumber: visibleRanges[visibleRanges.length - 1].endLineNumber
                };
            },

            preloadLines: (startLine, endLine, direction) => {
                const preloadCount = 100;

                if (direction === 'down') {
                    for (let i = endLine; i < Math.min(endLine + preloadCount, editor.getModel().getLineCount()); i++) {
                        editor.getModel().getLineContent(i);
                    }
                } else if (direction === 'up') {
                    for (let i = startLine - 1; i >= Math.max(startLine - preloadCount, 1); i--) {
                        editor.getModel().getLineContent(i);
                    }
                }
            },

            throttleScroll: (callback, delay = 100) => {
                let lastCall = 0;
                return (event) => {
                    const now = Date.now();
                    if (now - lastCall >= delay) {
                        lastCall = now;
                        callback(event);
                    }
                };
            }
        };
    }
}
5.2 大文件处理

大文件处理是Monaco Editor性能优化的关键挑战:

代码语言:javascript
复制
// Monaco大文件处理系统
class LargeFileHandler {
    constructor(monaco, options = {}) {
        this.monaco = monaco;
        this.options = {
            maxFileSize: options.maxFileSize || 10 * 1024 * 1024,
            chunkSize: options.chunkSize || 10000,
            maxDisplayedLines: options.maxDisplayedLines || 5000,
            enableProgressiveLoading: options.enableProgressiveLoading !== false,
            ...options
        };

        this.loadedChunks = new Map();
        this.totalLines = 0;
        this.model = null;
    }

    checkFileSize(file) {
        if (file.size > this.options.maxFileSize) {
            return {
                tooLarge: true,
                size: file.size,
                maxSize: this.options.maxFileSize,
                recommendation: 'split'
            };
        }
        return { tooLarge: false };
    }

    async loadLargeFile(content) {
        const lines = content.split('\n');
        this.totalLines = lines.length;

        if (this.totalLines <= this.options.maxDisplayedLines) {
            return this.createModel(content);
        }

        if (this.options.enableProgressiveLoading) {
            return this.createProgressiveModel(lines);
        }

        return this.createLimitedModel(lines);
    }

    createModel(content) {
        return this.monaco.editor.createModel(content, undefined, undefined);
    }

    createProgressiveModel(lines) {
        const virtualModel = {
            lines: [],
            chunks: [],
            totalLines: this.totalLines,
            getLineCount: () => this.totalLines,
            getLineContent: (lineNumber) => {
                return this.getLine(lineNumber);
            },
            getValue: () => {
                return this.lines.join('\n');
            }
        };

        const middleStart = Math.max(0, Math.floor(this.totalLines / 2) - this.options.chunkSize / 2);
        this.loadChunk(middleStart, this.options.chunkSize);

        const model = this.monaco.editor.createModel('', undefined, undefined);

        this.model = model;
        this.virtualModel = virtualModel;

        this.setupOnDemandLoading(model);

        return model;
    }

    createLimitedModel(lines) {
        const visibleLines = Math.min(this.options.maxDisplayedLines, this.totalLines);
        const startLine = Math.max(0, Math.floor((this.totalLines - visibleLines) / 2));

        const partialContent = lines.slice(startLine, startLine + visibleLines).join('\n');
        const model = this.monaco.editor.createModel(partialContent, undefined, undefined);

        const warning = `/*
 * Large file detected: ${this.totalLines} lines
 * Displaying lines ${startLine + 1} to ${startLine + visibleLines}
 * Full file available in file explorer
 */\n\n`;

        model.setValue(warning + partialContent);

        return model;
    }

    loadChunk(startLine, count) {
        const key = `${startLine}-${count}`;
        if (this.loadedChunks.has(key)) {
            return this.loadedChunks.get(key);
        }

        const chunk = [];
        const endLine = Math.min(startLine + count, this.totalLines);

        for (let i = startLine; i < endLine; i++) {
            chunk.push(this.virtualModel.lines[i] || '');
        }

        this.loadedChunks.set(key, chunk);
        return chunk;
    }

    getLine(lineNumber) {
        const chunkSize = this.options.chunkSize;
        const chunkStart = Math.floor((lineNumber - 1) / chunkSize) * chunkSize;

        const chunk = this.loadChunk(chunkStart, chunkSize);

        const index = (lineNumber - 1) % chunkSize;
        return chunk[index] || '';
    }

    getLargeFileOptions() {
        return {
            quickSuggestions: false,
            wordBasedSuggestions: false,
            parameterHints: { enabled: false },
            hover: { enabled: false },
            suggest: { enabled: false },
            renderLineHighlight: 'none',
            renderWhitespace: 'none',
            selectionHighlight: false,
            occurrencesHighlight: 'off',
            matchBrackets: 'never',
            largeFileOptimization: true,
            maxTokenizationLineLength: 10000,
            scrollbar: {
                vertical: 'visible',
                horizontal: 'auto',
                useShadows: false,
                verticalHasArrows: false,
                horizontalHasArrows: false,
                verticalScrollbarSize: 10,
                horizontalScrollbarSize: 10
            }
        };
    }
}
5.3 WebWorker与异步处理

将计算密集型任务卸载到WebWorker中可以显著提升编辑器响应性:

代码语言:javascript
复制
// Monaco WebWorker管理
class MonacoWebWorkerManager {
    constructor() {
        this.workers = new Map();
        this.taskQueue = new Map();
        this.activeTasks = new Map();
    }

    registerWorker(name, workerUrl) {
        const worker = new Worker(workerUrl);

        worker.onmessage = (event) => {
            this.handleWorkerMessage(name, event);
        };

        worker.onerror = (error) => {
            console.error(`Worker ${name} error:`, error);
            this.restartWorker(name, workerUrl);
        };

        this.workers.set(name, {
            worker,
            busy: false,
            capabilities: []
        });

        return worker;
    }

    handleWorkerMessage(name, event) {
        const { type, taskId, data, error } = event.data;
        const workerInfo = this.workers.get(name);

        switch (type) {
            case 'ready':
                workerInfo.capabilities = data.capabilities || [];
                workerInfo.busy = false;
                this.processNextTask(name);
                break;

            case 'result':
                const resolve = this.activeTasks.get(taskId);
                if (resolve) {
                    resolve(data);
                    this.activeTasks.delete(taskId);
                }
                workerInfo.busy = false;
                this.processNextTask(name);
                break;

            case 'error':
                const reject = this.activeTasks.get(taskId);
                if (reject) {
                    reject(new Error(error));
                    this.activeTasks.delete(taskId);
                }
                workerInfo.busy = false;
                this.processNextTask(name);
                break;
        }
    }

    async dispatchTask(name, taskType, data, options = {}) {
        return new Promise((resolve, reject) => {
            const taskId = this.generateTaskId();

            this.activeTasks.set(taskId, resolve);

            if (!this.taskQueue.has(name)) {
                this.taskQueue.set(name, []);
            }

            this.taskQueue.get(name).push({
                taskId,
                taskType,
                data,
                timeout: options.timeout || 30000
            });

            this.processNextTask(name);

            if (options.timeout) {
                setTimeout(() => {
                    if (this.activeTasks.has(taskId)) {
                        this.activeTasks.delete(taskId);
                        reject(new Error(`Task ${taskId} timed out after ${options.timeout}ms`));
                    }
                }, options.timeout);
            }
        });
    }

    processNextTask(name) {
        const workerInfo = this.workers.get(name);
        if (!workerInfo || workerInfo.busy) return;

        const queue = this.taskQueue.get(name);
        if (!queue || queue.length === 0) return;

        const task = queue.shift();

        workerInfo.busy = true;
        workerInfo.worker.postMessage({
            type: task.taskType,
            taskId: task.taskId,
            data: task.data
        });
    }

    restartWorker(name, workerUrl) {
        const oldInfo = this.workers.get(name);
        if (oldInfo) {
            oldInfo.worker.terminate();
        }

        this.registerWorker(name, workerUrl);
    }

    dispose() {
        this.workers.forEach(info => {
            info.worker.terminate();
        });
        this.workers.clear();
        this.taskQueue.clear();
        this.activeTasks.clear();
    }

    generateTaskId() {
        return `task_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`;
    }
}

// 语言服务Worker
class LanguageServiceWorker {
    constructor() {
        this.types = new Map();
        this.symbols = new Map();
    }

    initialize(capabilities) {
        this.capabilities = capabilities;
    }

    computeType(uri, position, content) {
        const line = content.split('\n')[position.lineNumber - 1];
        const beforeCursor = line.substring(0, position.column - 1);

        const varMatch = beforeCursor.match(/(?:const|let|var)\s+(\w+)\s*:\s*(\w+)/);
        if (varMatch) {
            return {
                type: varMatch[2],
                documentation: `Variable of type ${varMatch[2]}`
            };
        }

        return { type: 'unknown', documentation: '' };
    }

    computeDocumentSymbols(content) {
        const symbols = [];
        const lines = content.split('\n');

        lines.forEach((line, index) => {
            const classMatch = line.match(/class\s+(\w+)/);
            if (classMatch) {
                symbols.push({
                    name: classMatch[1],
                    kind: 'class',
                    location: { line: index + 1, column: 1 }
                });
            }

            const funcMatch = line.match(/(?:function|const|let|var)\s+(\w+)\s*[=\(]/);
            if (funcMatch) {
                symbols.push({
                    name: funcMatch[1],
                    kind: 'function',
                    location: { line: index + 1, column: 1 }
                });
            }
        });

        return symbols;
    }

    formatCode(content, options) {
        const tabSize = options.tabSize || 4;
        const useSpaces = options.insertSpaces !== false;

        let result = '';
        let indent = 0;
        const lines = content.split('\n');

        lines.forEach(line => {
            const trimmed = line.trim();

            if (trimmed.startsWith('}') || trimmed.startsWith(')')) {
                indent = Math.max(0, indent - 1);
            }

            if (trimmed.length > 0) {
                const indentStr = useSpaces ? ' '.repeat(indent * tabSize) : '\t'.repeat(indent);
                result += indentStr + trimmed + '\n';
            } else {
                result += '\n';
            }

            if (trimmed.endsWith('{') || trimmed.endsWith('(')) {
                indent++;
            }
        });

        return result;
    }

    findReferences(uri, position, content) {
        const word = this.getWordAtPosition(content, position);
        const references = [];
        const lines = content.split('\n');

        lines.forEach((line, index) => {
            if (line.includes(word)) {
                references.push({
                    uri,
                    line: index + 1,
                    column: line.indexOf(word) + 1
                });
            }
        });

        return references;
    }

    getWordAtPosition(content, position) {
        const lines = content.split('\n');
        const line = lines[position.lineNumber - 1] || '';
        const before = line.substring(0, position.column - 1);
        const after = line.substring(position.column - 1);

        const beforeMatch = before.match(/\w+$/);
        const afterMatch = after.match(/^\w+/);

        return (beforeMatch ? beforeMatch[0] : '') + (afterMatch ? afterMatch[0] : '');
    }
}

6 WebAssembly加速

本节为你提供的核心技术价值:理解WebAssembly在代码编辑器中的应用场景,掌握将计算密集型任务卸载到WASM的方法。

6.1 WASM与JavaScript性能对比

WebAssembly为前端提供了接近原生的执行性能:

操作类型

JavaScript

WebAssembly

性能提升

字符串处理

基准

~0.8x

-20%

大数组排序

基准

~2-5x

2-5倍

加密计算

基准

~3-10x

3-10倍

正则表达式

基准

~1.5-3x

1.5-3倍

语法解析

基准

~3-8x

3-8倍

图像处理

基准

~5-20x

5-20倍

6.2 WASM加速实践
代码语言:javascript
复制
// WASM加速模块
class WasmAccelerator {
    constructor() {
        this.wasmModule = null;
        this.memory = null;
        this.initialized = false;
    }

    async initialize(wasmUrl) {
        try {
            const response = await fetch(wasmUrl);
            const bytes = await response.arrayBuffer();

            const { instance } = await WebAssembly.instantiate(bytes, {
                env: {
                    memory: new WebAssembly.Memory({ initial: 256, maximum: 512 }),
                    abort: () => console.error('WASM abort')
                }
            });

            this.wasmModule = instance;
            this.memory = instance.exports.memory;
            this.initialized = true;

            console.log('WASM module initialized');
            return true;

        } catch (error) {
            console.error('Failed to initialize WASM:', error);
            return false;
        }
    }

    // 语法高亮加速
    highlightSyntax(code, languageId) {
        if (!this.initialized) {
            return this.jsHighlight(code, languageId);
        }

        try {
            const codeBytes = new TextEncoder().encode(code);
            const ptr = this.allocate(codeBytes.length);

            const view = new Uint8Array(this.memory.buffer);
            view.set(codeBytes, ptr);

            const resultPtr = this.wasmModule.exports.highlight(
                ptr,
                codeBytes.length,
                this.getLanguageId(languageId)
            );

            const result = this.readString(resultPtr);

            this.deallocate(ptr);
            this.deallocate(resultPtr);

            return JSON.parse(result);

        } catch (error) {
            console.error('WASM highlight failed, falling back to JS:', error);
            return this.jsHighlight(code, languageId);
        }
    }

    // RE2正则表达式匹配
    regexMatch(pattern, text, options = {}) {
        if (!this.initialized) {
            return this.jsRegexMatch(pattern, text, options);
        }

        try {
            const regexPtr = this.wasmModule.exports.re2_compile(
                this.allocateString(pattern),
                options.caseInsensitive ? 1 : 0,
                options.multiline ? 1 : 0,
                options.global ? 1 : 0
            );

            if (regexPtr === 0) {
                throw new Error('Failed to compile regex');
            }

            const textBytes = new TextEncoder().encode(text);
            const textPtr = this.allocate(textBytes.length);
            new Uint8Array(this.memory.buffer).set(textBytes, textPtr);

            const matchesPtr = this.wasmModule.exports.re2_match(
                regexPtr,
                textPtr,
                textBytes.length
            );

            const matches = this.parseMatches(matchesPtr);

            this.wasmModule.exports.re2_delete(regexPtr);
            this.deallocate(textPtr);

            return matches;

        } catch (error) {
            console.error('WASM regex failed, falling back to JS:', error);
            return this.jsRegexMatch(pattern, text, options);
        }
    }

    // 差异计算
    computeDiff(oldText, newText) {
        if (!this.initialized) {
            return this.jsDiff(oldText, newText);
        }

        try {
            const oldBytes = new TextEncoder().encode(oldText);
            const newBytes = new TextEncoder().encode(newText);

            const oldPtr = this.allocate(oldBytes.length);
            const newPtr = this.allocate(newBytes.length);

            new Uint8Array(this.memory.buffer).set(oldBytes, oldPtr);
            new Uint8Array(this.memory.buffer).set(newBytes, newPtr);

            const resultPtr = this.wasmModule.exports.diff_compute(
                oldPtr, oldBytes.length,
                newPtr, newBytes.length
            );

            const result = this.readString(resultPtr);

            this.deallocate(oldPtr);
            this.deallocate(newPtr);
            this.deallocate(resultPtr);

            return JSON.parse(result);

        } catch (error) {
            console.error('WASM diff failed, falling back to JS:', error);
            return this.jsDiff(oldText, newText);
        }
    }

    // 代码Minification
    minify(code, options = {}) {
        if (!this.initialized) {
            return this.jsMinify(code, options);
        }

        try {
            const codeBytes = new TextEncoder().encode(code);
            const ptr = this.allocate(codeBytes.length);
            new Uint8Array(this.memory.buffer).set(codeBytes, ptr);

            const resultPtr = this.wasmModule.exports.minify(
                ptr,
                codeBytes.length,
                options.removeWhitespace ? 1 : 0,
                options.shortenVariables ? 1 : 0
            );

            const result = this.readString(resultPtr);

            this.deallocate(ptr);
            this.deallocate(resultPtr);

            return result;

        } catch (error) {
            console.error('WASM minify failed, falling back to JS:', error);
            return this.jsMinify(code, options);
        }
    }

    allocate(size) {
        const ptr = this.wasmModule.exports.allocate(size);
        if (ptr === 0) {
            throw new Error('Failed to allocate memory');
        }
        return ptr;
    }

    allocateString(str) {
        const bytes = new TextEncoder().encode(str);
        const ptr = this.allocate(bytes.length + 1);
        new Uint8Array(this.memory.buffer).set(bytes, ptr);
        return ptr;
    }

    readString(ptr) {
        const view = new Uint8Array(this.memory.buffer);
        let end = ptr;
        while (view[end] !== 0) end++;
        const bytes = view.slice(ptr, end);
        return new TextDecoder().decode(bytes);
    }

    deallocate(ptr) {
        this.wasmModule.exports.deallocate(ptr);
    }

    // JavaScript降级实现
    jsHighlight(code, languageId) {
        const tokens = [];
        const keywords = this.getKeywords(languageId);

        const lines = code.split('\n');
        lines.forEach((line, lineIndex) => {
            const words = line.split(/(\s+|[{}()\[\];,.])/);
            words.forEach(word => {
                if (word.trim()) {
                    let type = 'plain';
                    if (keywords.has(word)) {
                        type = 'keyword';
                    } else if (/^\d+$/.test(word)) {
                        type = 'number';
                    } else if (/^['"`]/.test(word)) {
                        type = 'string';
                    }
                    tokens.push({ type, value: word });
                }
            });
        });

        return tokens;
    }

    jsRegexMatch(pattern, text, options) {
        try {
            const flags = (options.caseInsensitive ? 'i' : '') + (options.multiline ? 'm' : '');
            const regex = new RegExp(pattern, flags + (options.global ? 'g' : ''));

            const matches = [];
            let match;

            if (options.global) {
                while ((match = regex.exec(text)) !== null) {
                    matches.push({
                        index: match.index,
                        length: match[0].length,
                        groups: match.slice(1)
                    });
                }
            } else {
                match = regex.exec(text);
                if (match) {
                    matches.push({
                        index: match.index,
                        length: match[0].length,
                        groups: match.slice(1)
                    });
                }
            }

            return matches;
        } catch (error) {
            console.error('Regex error:', error);
            return [];
        }
    }

    jsDiff(oldText, newText) {
        const oldLines = oldText.split('\n');
        const newLines = newText.split('\n');

        const result = {
            operations: [],
            hunks: []
        };

        const lcs = this.longestCommonSubsequence(oldLines, newLines);
        let oldIndex = 0;
        let newIndex = 0;
        let lcsIndex = 0;

        while (oldIndex < oldLines.length || newIndex < newLines.length) {
            if (lcsIndex < lcs.length) {
                while (oldIndex < oldLines.length && oldLines[oldIndex] !== lcs[lcsIndex]) {
                    result.operations.push({ type: 'delete', oldIndex });
                    oldIndex++;
                }
                while (newIndex < newLines.length && newLines[newIndex] !== lcs[lcsIndex]) {
                    result.operations.push({ type: 'insert', newIndex });
                    newIndex++;
                }
                result.operations.push({ type: 'equal', index: lcsIndex });
                oldIndex++;
                newIndex++;
                lcsIndex++;
            } else {
                while (oldIndex < oldLines.length) {
                    result.operations.push({ type: 'delete', oldIndex });
                    oldIndex++;
                }
                while (newIndex < newLines.length) {
                    result.operations.push({ type: 'insert', newIndex });
                    newIndex++;
                }
            }
        }

        return result;
    }

    longestCommonSubsequence(a, b) {
        const m = a.length;
        const n = b.length;
        const dp = Array(m + 1).fill(null).map(() => Array(n + 1).fill(0));

        for (let i = 1; i <= m; i++) {
            for (let j = 1; j <= n; j++) {
                if (a[i - 1] === b[j - 1]) {
                    dp[i][j] = dp[i - 1][j - 1] + 1;
                } else {
                    dp[i][j] = Math.max(dp[i - 1][j], dp[i][j - 1]);
                }
            }
        }

        const lcs = [];
        let i = m, j = n;
        while (i > 0 && j > 0) {
            if (a[i - 1] === b[j - 1]) {
                lcs.unshift(a[i - 1]);
                i--;
                j--;
            } else if (dp[i - 1][j] > dp[i][j - 1]) {
                i--;
            } else {
                j--;
            }
        }

        return lcs;
    }

    jsMinify(code, options) {
        let result = code;

        if (options.removeWhitespace) {
            result = result
                .replace(/\s+/g, ' ')
                .replace(/\s*([{};,.=+\-*/<>!&|?:])\s*/g, '$1')
                .trim();
        }

        return result;
    }

    getKeywords(languageId) {
        const keywords = {
            javascript: new Set(['function', 'const', 'let', 'var', 'if', 'else', 'for', 'while', 'return', 'class', 'import', 'export', 'async', 'await']),
            typescript: new Set(['function', 'const', 'let', 'var', 'if', 'else', 'for', 'while', 'return', 'class', 'import', 'export', 'async', 'await', 'interface', 'type', 'enum']),
            python: new Set(['def', 'class', 'if', 'elif', 'else', 'for', 'while', 'return', 'import', 'from', 'as', 'async', 'await', 'lambda'])
        };

        return keywords[languageId] || new Set();
    }

    getLanguageId(languageId) {
        const ids = {
            javascript: 1,
            typescript: 2,
            python: 3,
            rust: 4,
            go: 5
        };
        return ids[languageId] || 0;
    }

    parseMatches(ptr) {
        return [];
    }
}

关键词: Monaco Editor, Y.js, CRDT, 协同编辑, WebAssembly, 虚拟滚动, 语言服务, WebSocket, 前端架构, 云端IDE, 实时协作

在这里插入图片描述
在这里插入图片描述
本文参与 腾讯云自媒体同步曝光计划,分享自作者个人站点/博客。
原始发表:2026-06-07,如有侵权请联系 cloudcommunity@tencent.com 删除

本文分享自 作者个人站点/博客 前往查看

如有侵权,请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ,欢迎热爱写作的你一起参与!

评论
登录后参与评论
0 条评论
热度
最新
推荐阅读
目录
  • 目录
  • 1 引言:为什么需要基于Monaco的前端架构
  • 2 Monaco Editor集成与配置
    • 2.1 Monaco Editor核心概念
    • 2.2 编辑器基础配置
    • 2.3 编辑器初始化实现
    • 2.4 主题系统与定制
    • 2.5 扩展机制与插件开发
  • 3 语言支持体系
    • 3.1 语法高亮实现
    • 3.2 智能补全系统
    • 3.3 错误诊断与修复
  • 4 协同编辑原理与实现
    • 4.1 CRDT理论基础
    • 4.2 Y.js核心概念
    • 4.3 协同编辑完整实现
    • 4.4 协同编辑服务器实现
  • 5 性能优化策略
    • 5.1 虚拟滚动实现
    • 5.2 大文件处理
    • 5.3 WebWorker与异步处理
  • 6 WebAssembly加速
    • 6.1 WASM与JavaScript性能对比
    • 6.2 WASM加速实践
领券
问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档
