3万字吃透RabbitMQ，最详细的RabbitMQ讲解（VIP典藏版）

<!--指定 jdk 编译版本-->
<build>
  <plugins>
    <plugin>
      <groupId>org.apache.maven.plugins</groupId>
      <artifactId>maven-compiler-plugin</artifactId>
      <configuration>
        <source>8</source>
        <target>8</target>
      </configuration>
    </plugin>
  </plugins>
</build>
<dependencies>
  <!--rabbitmq 依赖客户端-->
  <dependency>
    <groupId>com.rabbitmq</groupId>
    <artifactId>amqp-client</artifactId>
    <version>5.8.0</version>
  </dependency>
  <!--操作文件流的一个依赖-->
  <dependency>
    <groupId>commons-io</groupId>
    <artifactId>commons-io</artifactId>
    <version>2.6</version>
  </dependency>
</dependencies>

package mode1_Simple;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {
  	// 队列名称
    public static String QUEUE_NAME = "hello";

    public static void main(String[] args) throws Exception {
        // 创建一个连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("82.156.9.173");
        factory.setUsername("zsr");
        factory.setPassword("123456");
        // 创建一个connection
        Connection connection = factory.newConnection();
        // 创建一个channel
        Channel channel = connection.createChannel();
        /**
         * 创建一个队列
         * 1.队列名称
         * 2.队列里面的消息是否持久化(默认为false,代表消息存储在内存中)
         * 3.该队列是否只供一个消费者进行消费,是否进行共享(true表示可以多个消费者消费)
         * 4.表示最后一个消费者断开连接以后,该队列是否自动删除(true表示自动删除)
         * 5.其他参数
         */
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        /**
         * 发送一个消息
         * 1.发送到那个交换机(空代表默认交换机)
         * 2.路由key
         * 3.其他的参数信息
         * 4.发送消息的消息体
         */
        String message = "hello";

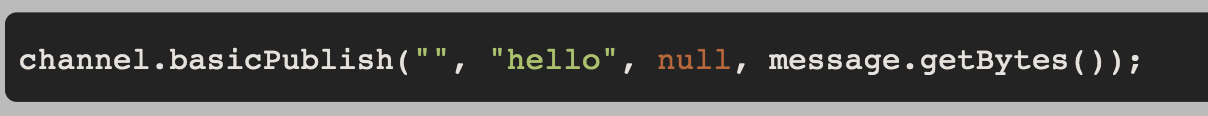

        channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
        System.out.println("消息发送完毕");
    }
}

package mode1_Simple;

import com.rabbitmq.client.*;

public class Consumer {
  	// 队列名称
    public static String QUEUE_NAME = "hello";

    public static void main(String[] args) throws Exception {
        // 创建一个连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("82.156.9.173");
        factory.setUsername("zsr");
        factory.setPassword("123456");
        // 创建一个connection
        Connection connection = factory.newConnection();
        // 创建一个channel
        Channel channel = connection.createChannel();
        /**
         * 消费者消费消息
         * 1.消费的队列名称
         * 2.消费成功之后是否要自动应答(true代表自动应答,false代表手动应答)
         * 3.消费者消费消息的回调(函数式接口)
         * 4.消费者取消消费的回调(函数式接口)
         */
        // 消费消息的回调
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            System.out.println("成功消费消息,内容为:" + new String(message.getBody()));
        };
        // 取消消费的回调
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, cancelCallback);
    }
}

package utils;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class RabbitMqUtils {
    // 获得RabbitMQ连接的channel
    public static Channel getChannel() throws Exception {
        // 创建一个连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("82.156.9.173");
        factory.setUsername("zsr");
        factory.setPassword("123456");
        // 创建一个connection
        Connection connection = factory.newConnection();
        // 创建一个channel
        Channel channel = connection.createChannel();
        return channel;
    }
}

package mode1_Simple;

import com.rabbitmq.client.*;

public class Consumer {
    public static String QUEUE_NAME = "hello";

    public static void main(String[] args) throws Exception {
        Channel channel = utils.RabbitMqUtils.getChannel();
        /**
         * 消费者消费消息
         * 1.消费的队列名称
         * 2.消费成功之后是否要自动应答(true代表自动应答,false代表手动应答)
         * 3.消费者消费消息的回调(函数式接口)
         * 4.消费者取消消费的回调(函数式接口)
         */
        // 消费消息的回调
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
        };
        // 取消消费的回调
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, cancelCallback);
    }
}

package mode1_Simple;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {
    public static String QUEUE_NAME = "hello";

    public static void main(String[] args) throws Exception {
        Channel channel = utils.RabbitMqUtils.getChannel();
        /**
         * 创建一个队列
         * 1.队列名称
         * 2.队列里面的消息是否持久化(默认为false,代表消息存储在内存中)
         * 3.该队列是否只供一个消费者进行消费,是否进行共享(true表示可以多个消费者消费)
         * 4.表示最后一个消费者断开连接以后,该队列是否自动删除(true表示自动删除)
         * 5.其他参数
         */
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        /**
         * 发送一个消息
         * 1.发送到那个交换机(空代表默认交换机)
         * 2.路由key
         * 3.其他的参数信息
         * 4.发送消息的消息体
         */
        String message = "hello";
        channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
        System.out.println("消息发送完毕");
    }
}

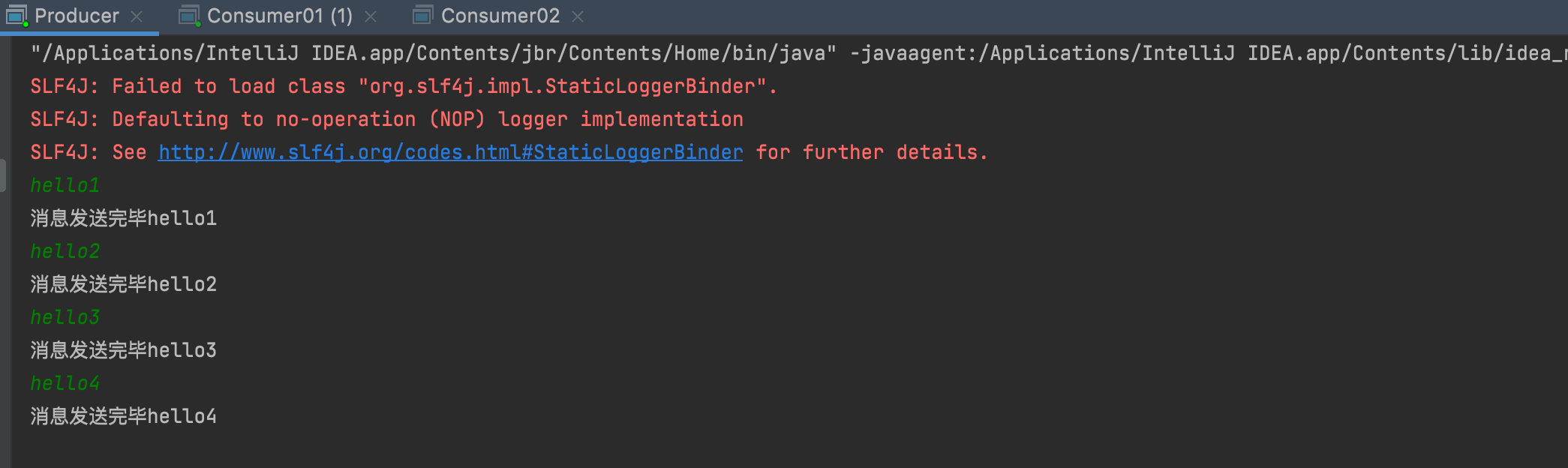

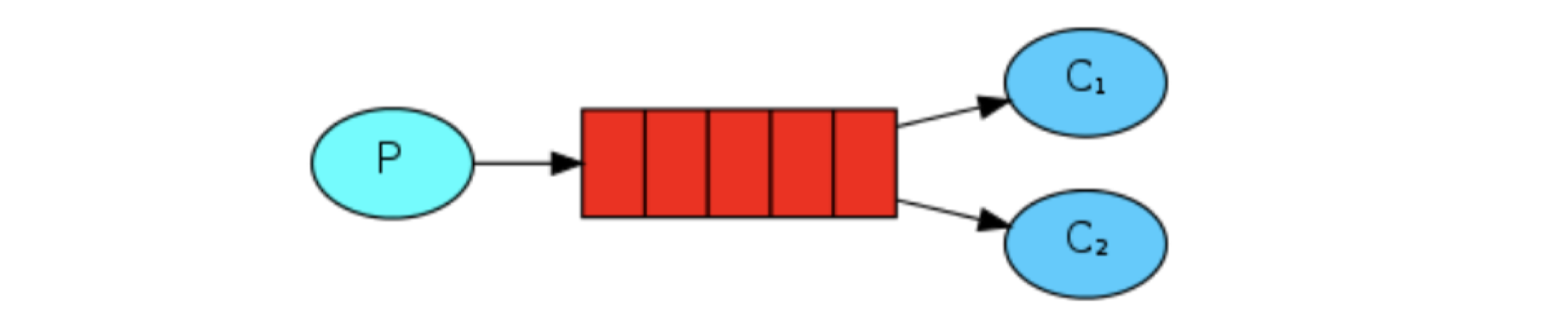

package mode2_WorkQueues.polling;

import com.rabbitmq.client.Channel;

import java.util.Scanner;

public class Producer {
    public static String QUEUE_NAME = "work";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();
        // 声明队列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 发送消息
        Scanner scanner = new Scanner(System.in);
        while (scanner.hasNext()) {
            String message = scanner.next();
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes());

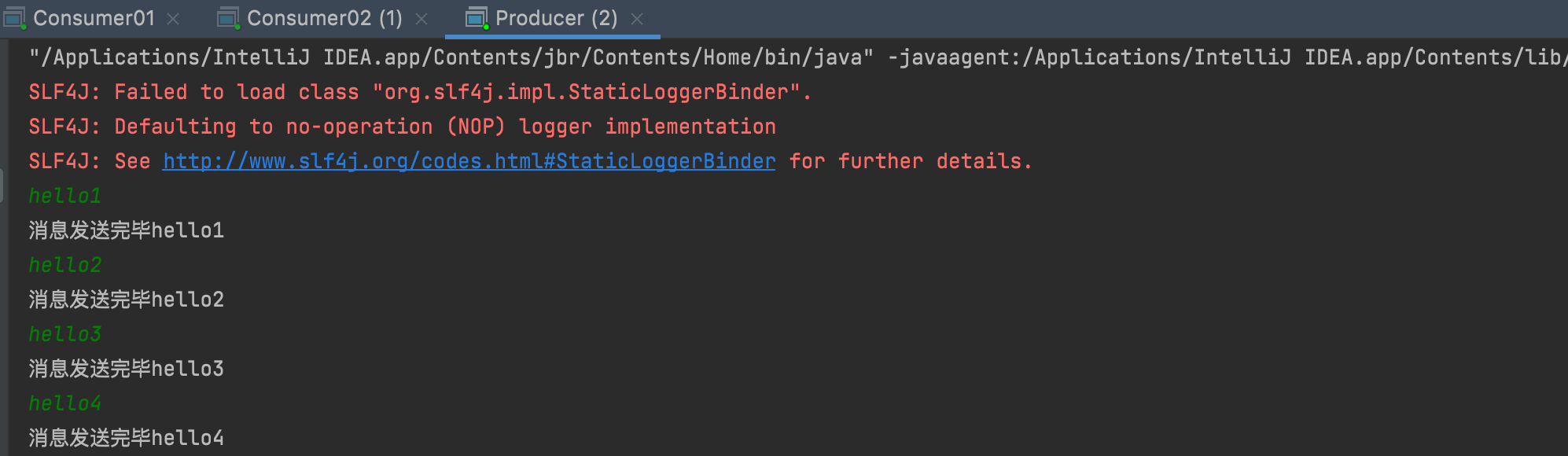

            System.out.println("消息发送完毕" + message);
        }
    }
}

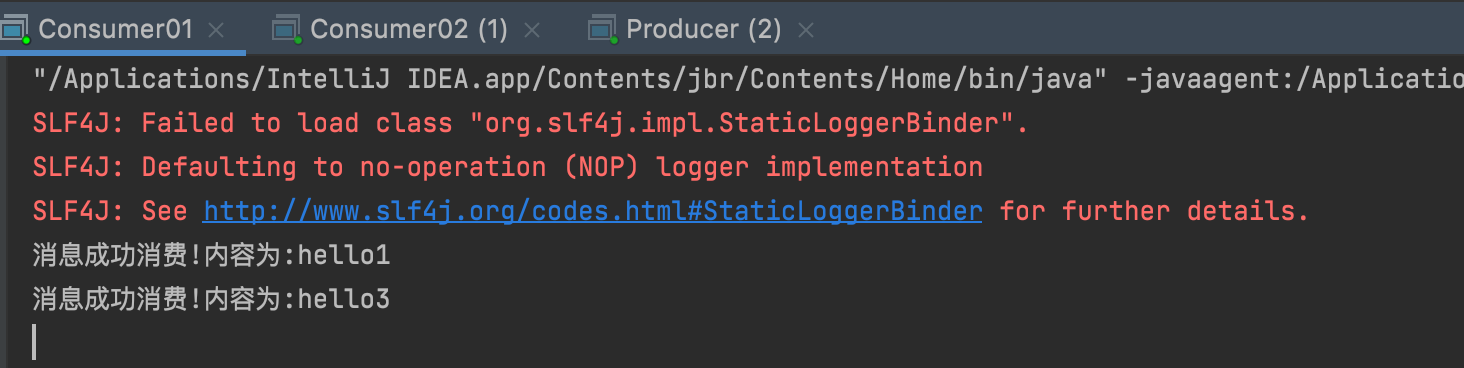

package mode2_WorkQueues.polling;

import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;

// 消费者1
public class Consumer01 {
    public static String QUEUE_NAME = "work";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();
        // 消费消息
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
        };
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, cancelCallback);
    }
}

package mode2_WorkQueues.polling;

import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;

// 消费者2
public class Consumer02 {
    public static String QUEUE_NAME = "work";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();
        // 消费消息

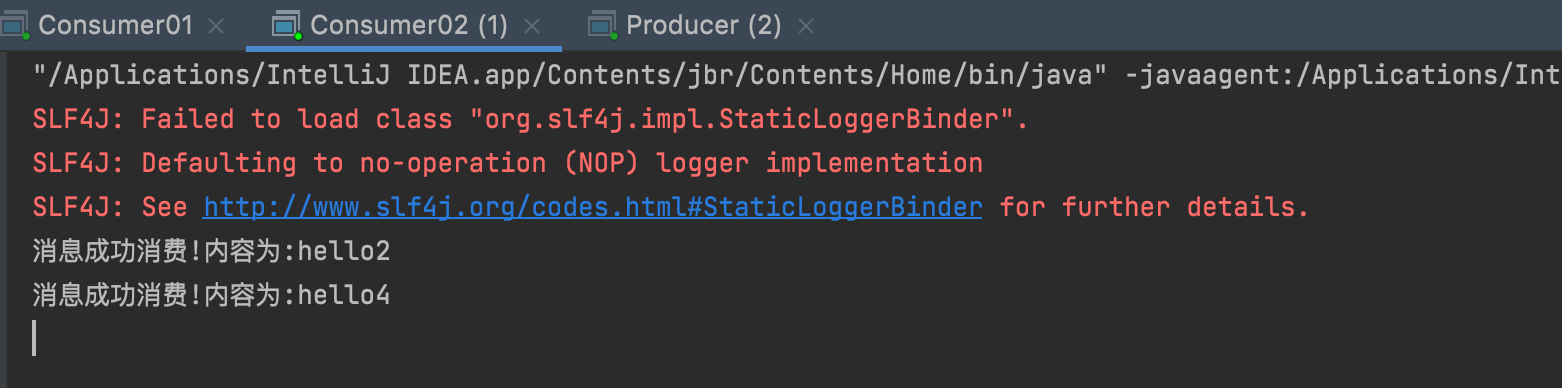

        DeliverCallback deliverCallback = (consumerTag, message) -> {
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
        };
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, cancelCallback);
    }
}

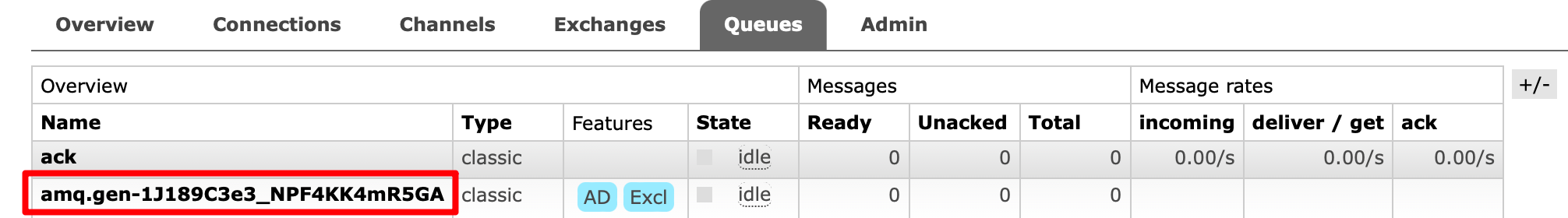

// 创建一个临时队列
String queueName = channel.queueDeclare().getQueue();

// 肯定确认

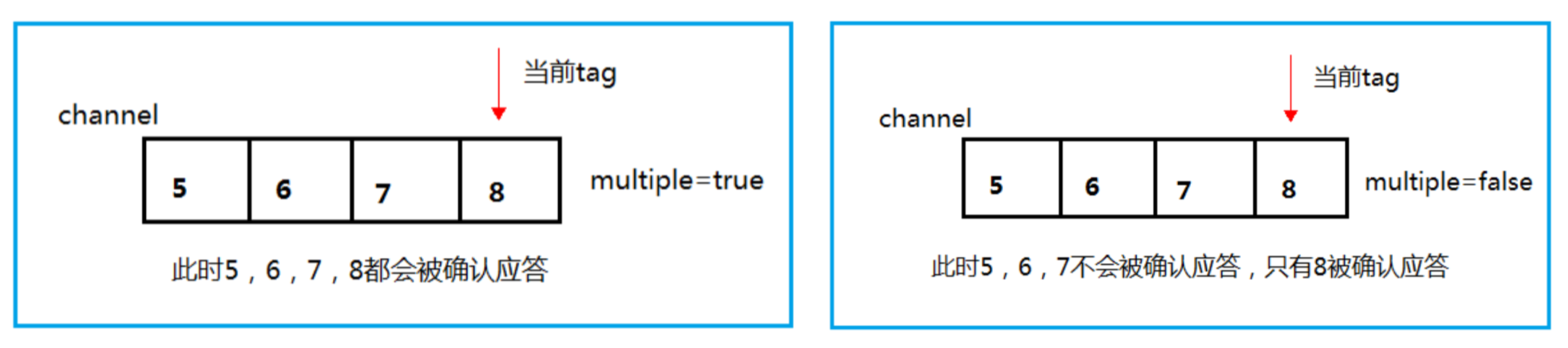

void basicAck(long deliveryTag, boolean multiple)

// 否定确认
void basicNack(long deliveryTag, boolean multiple, boolean requeue)
void basicReject(long deliveryTag, boolean requeue)

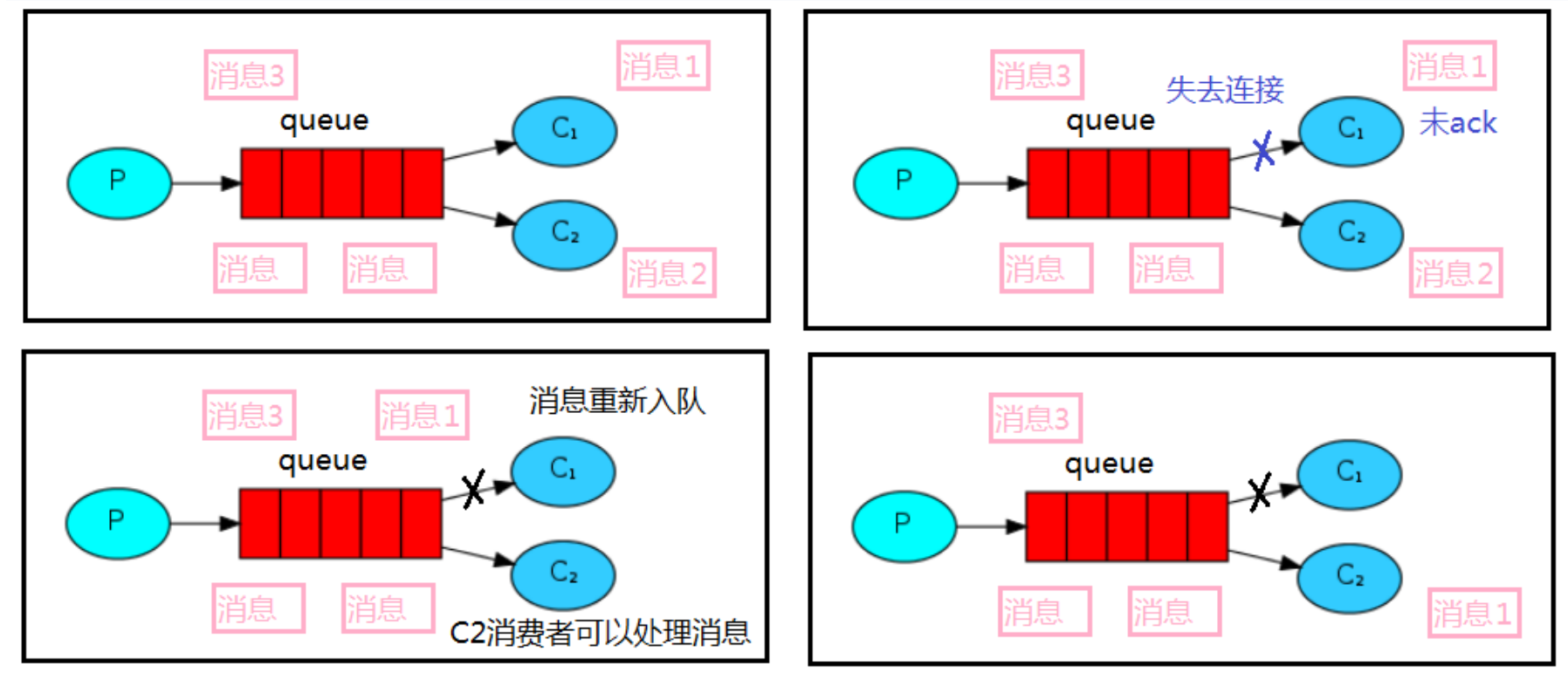

package mode2_WorkQueues.ack;

import com.rabbitmq.client.Channel;

import java.util.Scanner;

public class Producer {
    public static String QUEUE_NAME = "ack";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();
      	// 声明队列
     		channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 发送消息
        Scanner scanner = new Scanner(System.in);
        while (scanner.hasNext()) {
            String message = scanner.next();
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
            System.out.println("消息发送完毕" + message);
        }
    }
}

package mode2_WorkQueues.ack;

import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;

// 测试手动应答
public class Consumer01 {
    public static String QUEUE_NAME = "ack";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();

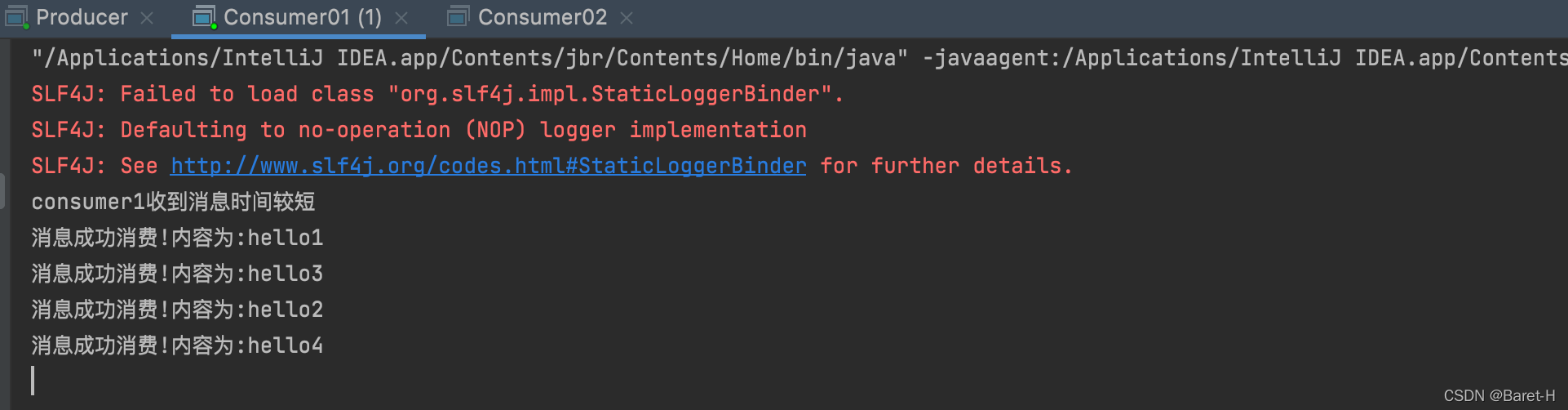

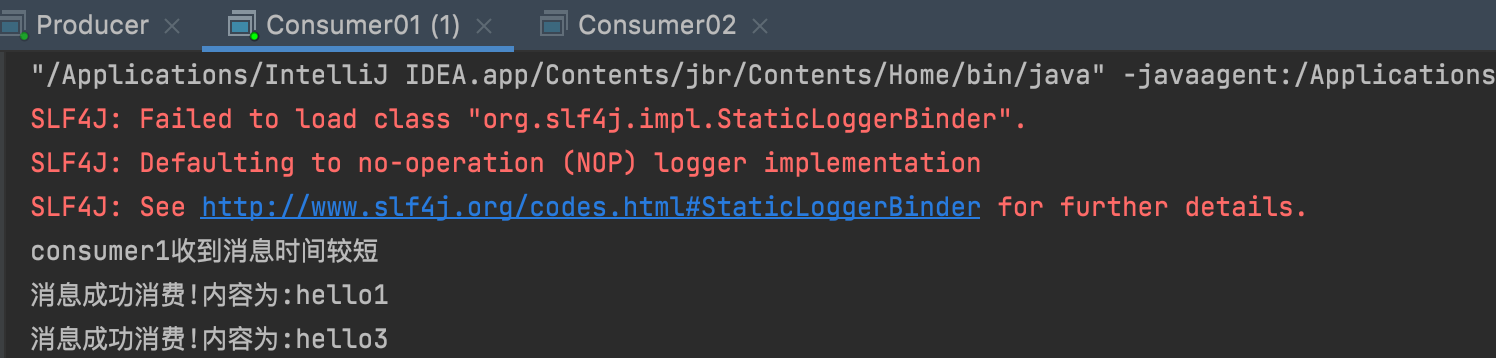

        System.out.println("consumer1收到消息时间较短");
        // 消费消息的回调
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            // 模拟接受消息的延迟 1s
            try {
                Thread.sleep(1000 * 1);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
            // 手动应答:第一个参数表示消息标记tag、第二个参数false表示不进行批量应答
            channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
        };
        // 取消消费的回调
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
      	// 消费消息（第2个参数修改为false表示手动应答）
        channel.basicConsume(QUEUE_NAME, false, deliverCallback, cancelCallback);
    }
}

package mode2_WorkQueues.ack;

import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;

// 测试手动应答
public class Consumer02 {
    public static String QUEUE_NAME = "ack";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();

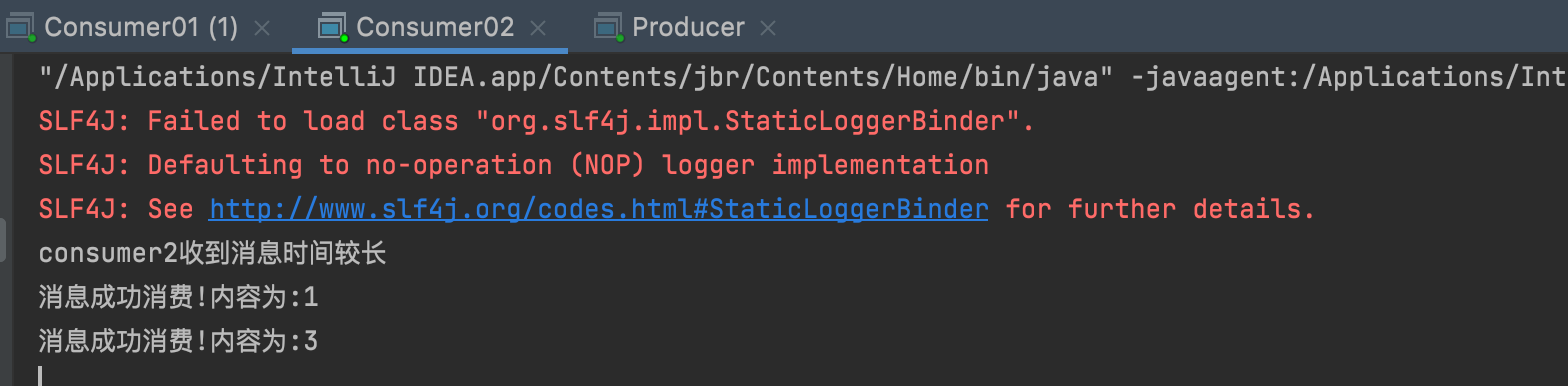

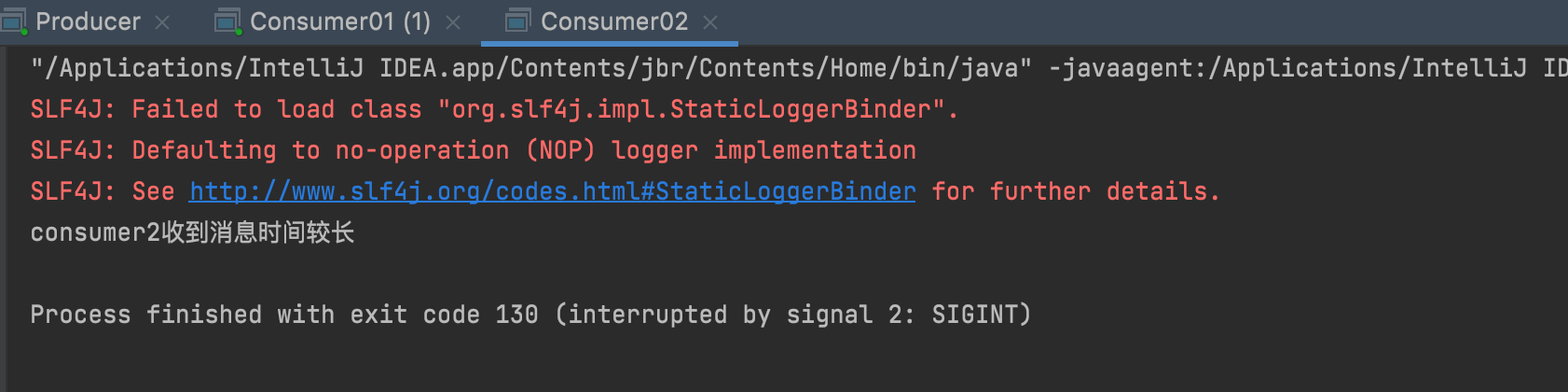

        System.out.println("consumer2收到消息时间较长");
      	// 消费消息的回调
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            // 模拟接受消息的延迟 10s
            try {
                Thread.sleep(1000 * 10);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
            // 手动应答:第一个参数表示消息标记tag、第二个参数false表示不进行批量应答
            channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
        };
      	// 取消消费的回调
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        // 消费消息（第2个参数修改为false表示手动应答）
        channel.basicConsume(QUEUE_NAME, false, deliverCallback, cancelCallback);
    }
}

package mode2_WorkQueues.ack;

import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;

// 测试手动应答
public class Consumer01 {
    public static String QUEUE_NAME = "prefetch";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();

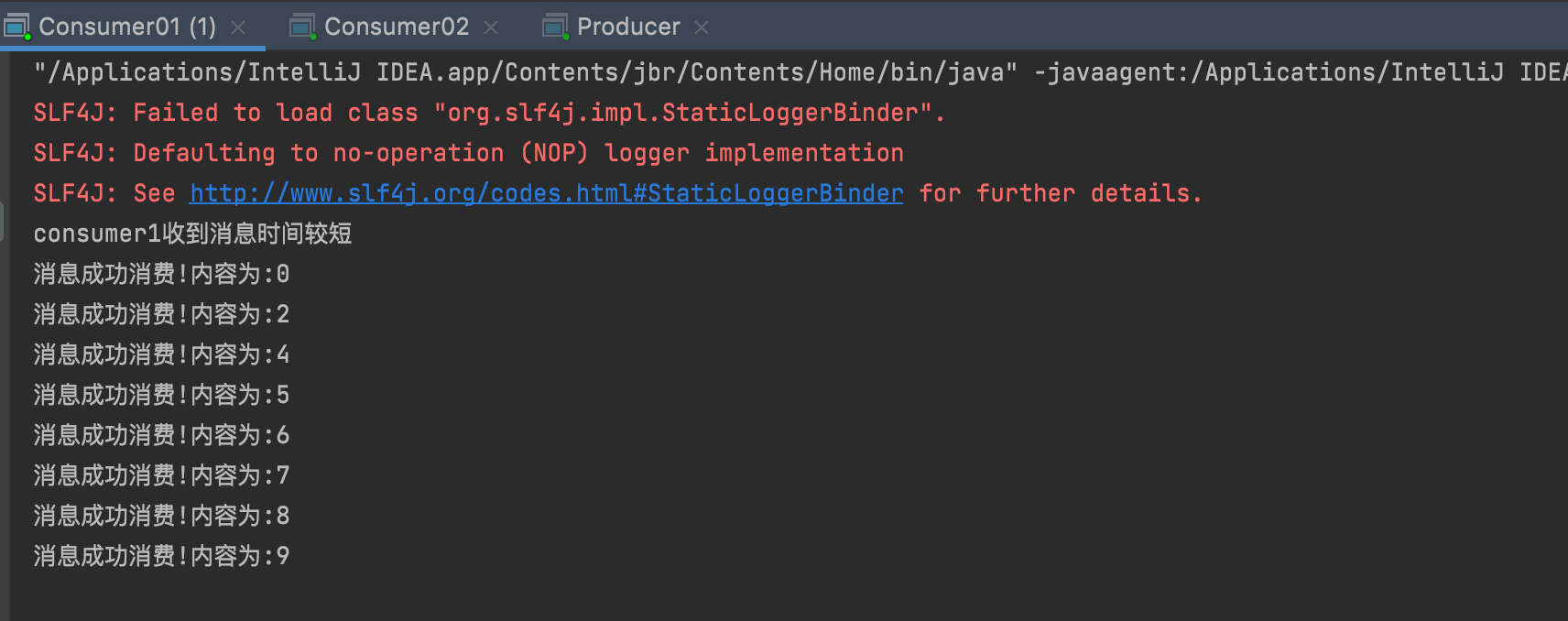

        System.out.println("consumer1收到消息时间较短");

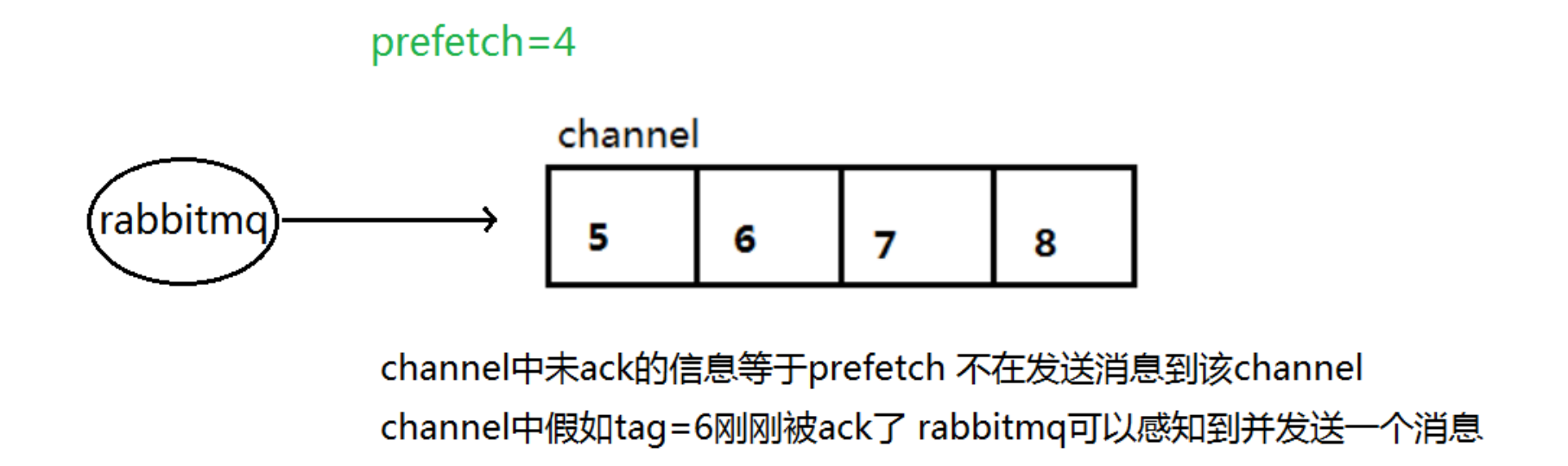

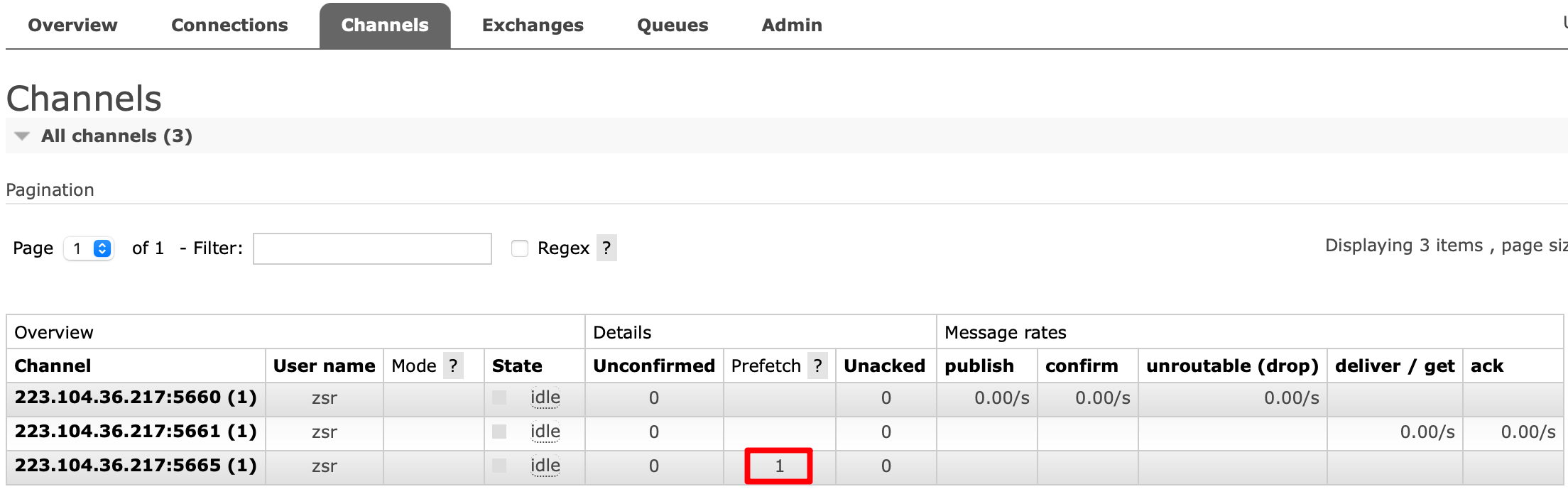

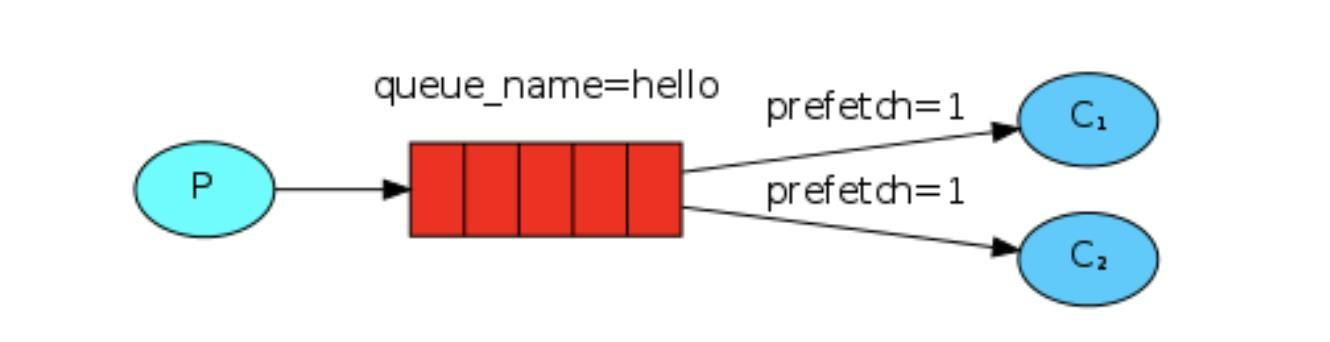

        // 设置预取值5
        channel.basicQos(5);
        // 消费消息（第2个参数修改为false表示手动应答）
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            // 模拟接受消息的延迟 10s
            try {
                Thread.sleep(1000 * 1);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
            // 手动应答:第一个参数表示消息标记tag、第二个参数false表示不进行批量应答
            channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
        };
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        channel.basicConsume(QUEUE_NAME, false, deliverCallback, cancelCallback);
    }
}

package mode2_WorkQueues.ack;

import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;

// 测试手动应答
public class Consumer02 {
    public static String QUEUE_NAME = "prefetch";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();
        System.out.println("consumer2收到消息时间较长");
        // 设置预取值2
        channel.basicQos(2);
        // 消费消息（第2个参数修改为false表示手动应答）
        DeliverCallback deliverCallback = (consumerTag, message) -> {
            // 模拟接受消息的延迟 1s
            try {
                Thread.sleep(1000 * 10);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            System.out.println("消息成功消费!内容为:" + new String(message.getBody()));
            // 手动应答:第一个参数表示消息标记tag、第二个参数false表示不进行批量应答
            channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
        };
        CancelCallback cancelCallback = (consumerTag) -> {
            System.out.println("消息消费被中断");
        };
        channel.basicConsume(QUEUE_NAME, false, deliverCallback, cancelCallback);
    }
}

package mode2_WorkQueues.ack;

import com.rabbitmq.client.Channel;

public class Producer {
    public static String QUEUE_NAME = "prefetch";

    public static void main(String[] args) throws Exception {
        // 创建channel
        Channel channel = utils.RabbitMqUtils.getChannel();
        // 发送消息
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);

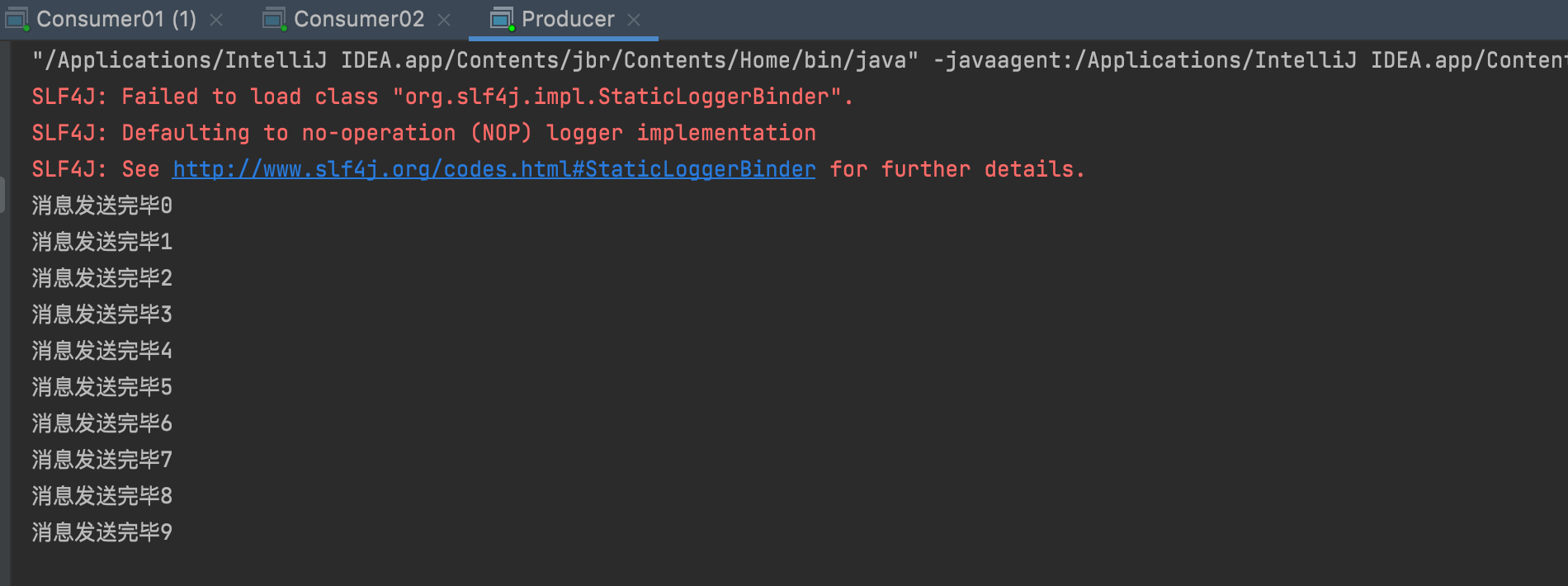

        for (int i = 0; i < 10; i++) {
            String message = i + "";
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
            System.out.println("消息发送完毕" + message);
        }
    }
}

// 开启发布确认

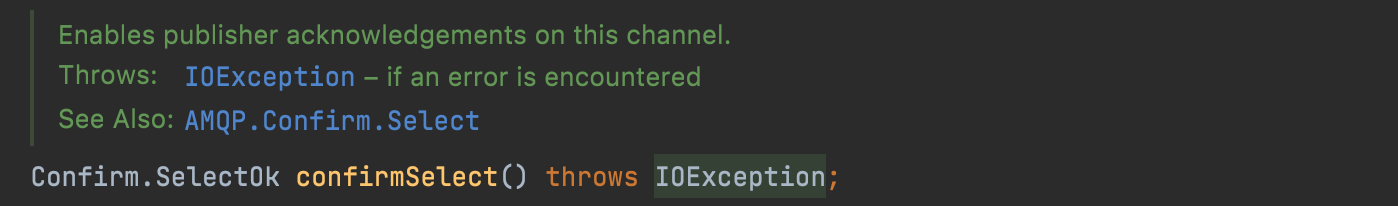

channel.confirmSelect();

<dependencies>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter</artifactId>
  </dependency>
  <!--RabbitMQ 依赖-->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-amqp</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
  </dependency>
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.47</version>
  </dependency>
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
  </dependency>
  <!--swagger-->
  <dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
  </dependency>
  <dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.9.2</version>
  </dependency>
  <!--RabbitMQ 测试依赖-->
  <dependency>
    <groupId>org.springframework.amqp</groupId>
    <artifactId>spring-rabbit-test</artifactId>
    <scope>test</scope>
  </dependency>
</dependencies>

spring.rabbitmq.host=82.156.9.173
spring.rabbitmq.port=5672
spring.rabbitmq.username=zb
spring.rabbitmq.password=123456

package com.zsr.springbootrabbitmq.init;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;
import java.util.Map;

@Configuration

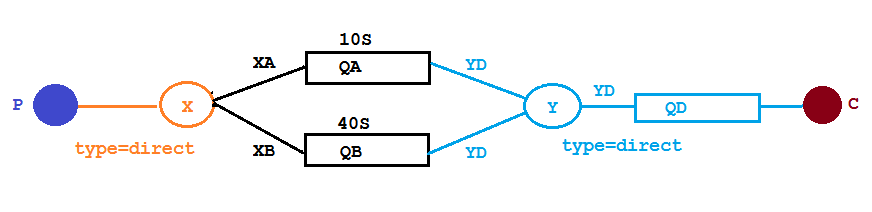

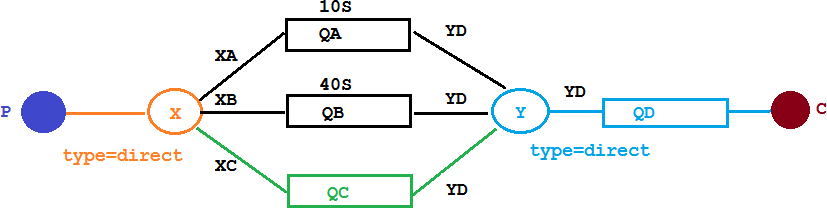

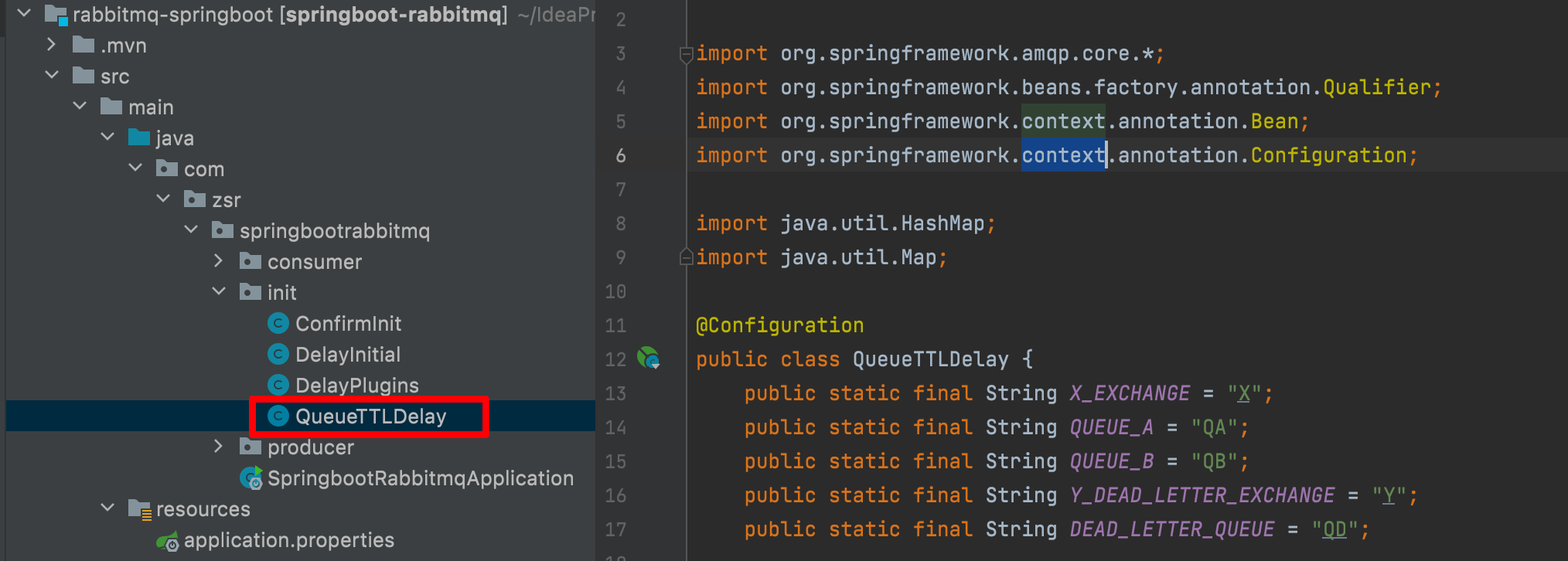

public class QueueTTLDelay {
    public static final String X_EXCHANGE = "X";
    public static final String QUEUE_A = "QA";
    public static final String QUEUE_B = "QB";
    public static final String Y_DEAD_LETTER_EXCHANGE = "Y";
    public static final String DEAD_LETTER_QUEUE = "QD";

    // 声明交换机X
    @Bean("xExchange")
    public DirectExchange xExchange() {
        return new DirectExchange(X_EXCHANGE);
    }

    // 声明死信交换机Y
    @Bean("yExchange")
    public DirectExchange yExchange() {
        return new DirectExchange(Y_DEAD_LETTER_EXCHANGE);
    }

    // 声明队列QA,设置队列的ttl为10s并绑定死信交换机
    @Bean("queueA")
    public Queue queueA() {
        Map<String, Object> arguments = new HashMap<>();
        // 声明当前队列绑定的死信交换机
        arguments.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
        // 声明当前队列的死信routing-key
        arguments.put("x-dead-letter-routing-key", "YD");
        // 声明队列的 TTL
        arguments.put("x-message-ttl", 10000);
        return QueueBuilder.durable(QUEUE_A).withArguments(arguments).build();
    }

    // 声明队列QB,设置队列的ttl为40s并绑定死信交换机
    @Bean("queueB")
    public Queue queueB() {
        Map<String, Object> arguments = new HashMap<>();
        // 声明当前队列绑定的死信交换机
        arguments.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
        // 声明当前队列的死信routing-key
        arguments.put("x-dead-letter-routing-key", "YD");
        // 声明队列的 TTL
        arguments.put("x-message-ttl", 40000);
        return QueueBuilder.durable(QUEUE_B).withArguments(arguments).build();
    }

    // 声明死信队列QD
    @Bean("queueD")
    public Queue queueD() {
        return new Queue(DEAD_LETTER_QUEUE);
    }

    // 死信队列QD绑定死信交换机Y
    @Bean
    public Binding deadLetterBindingQAD(@Qualifier("queueD") Queue queueD, @Qualifier("yExchange") DirectExchange yExchange) {
        return BindingBuilder.bind(queueD).to(yExchange).with("YD");
    }

    // 队列A绑定X交换机
    @Bean
    public Binding queueABindExchangeX(@Qualifier("queueA") Queue queueA, @Qualifier("xExchange") DirectExchange xExchange) {
        return BindingBuilder.bind(queueA).to(xExchange).with("XA");
    }

    // 队列B绑定X交换机
    @Bean
    public Binding queueBBindExchangeX(@Qualifier("queueB") Queue queueB, @Qualifier("xExchange") DirectExchange xExchange) {
        return BindingBuilder.bind(queueB).to(xExchange).with("XB");
    }
}

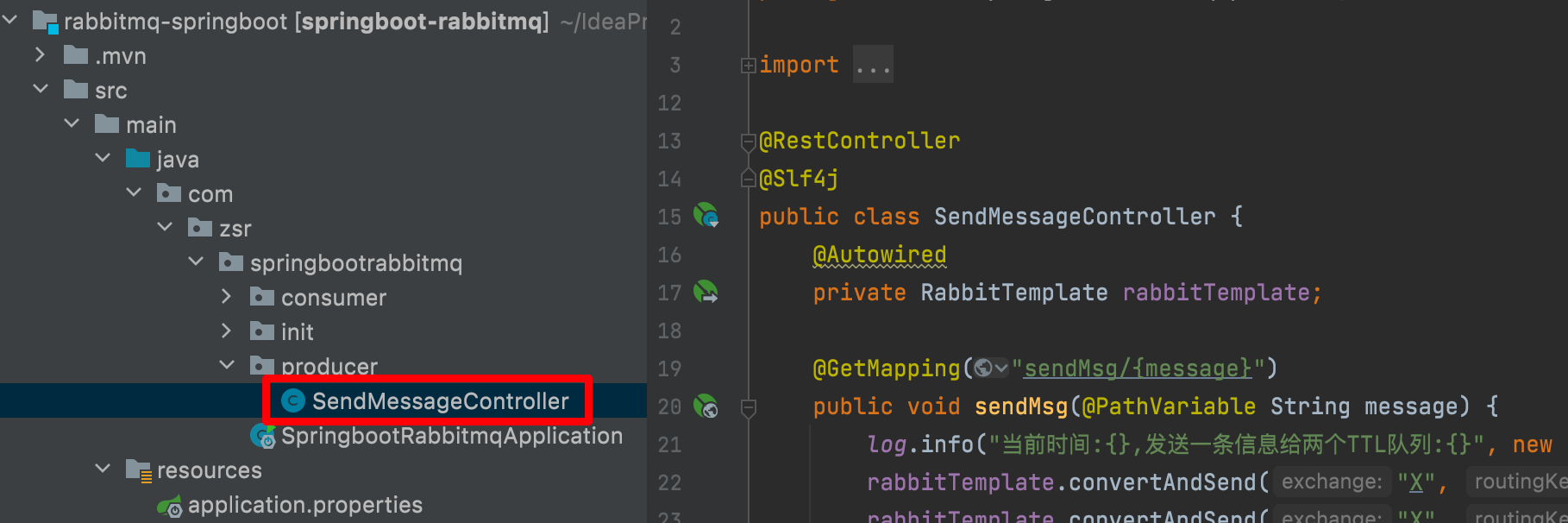

package com.zsr.springbootrabbitmq.Producer;

import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import java.util.Date;

@RestController
@Slf4j
public class SendMessageController {
    @Autowired
    private RabbitTemplate rabbitTemplate;

    @GetMapping("sendMsg/{message}")
    public void sendMsg(@PathVariable String message) {
        log.info("当前时间:{},发送一条信息给两个TTL队列:{}", new Date(), message);
        rabbitTemplate.convertAndSend("X", "XA", "消息来自ttl=10s的队列" + message);
        rabbitTemplate.convertAndSend("X", "XB", "消息来自ttl=40s的队列" + message);
    }
}

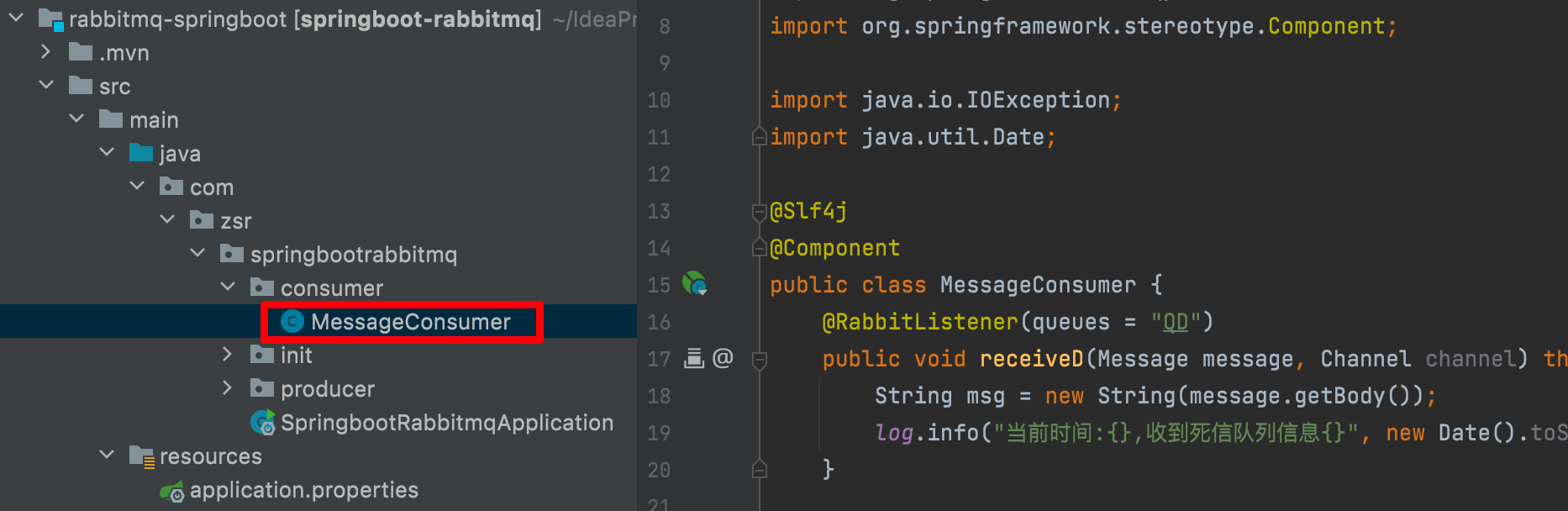

package com.zsr.springbootrabbitmq.consumer;

import com.rabbitmq.client.Channel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

import java.io.IOException;
import java.util.Date;

@Slf4j
@Component
public class MessageConsumer {
    @RabbitListener(queues = "QD")
    public void receiveD(Message message, Channel channel) throws IOException {
        String msg = new String(message.getBody());
        log.info("当前时间:{},收到死信队列信息{}", new Date().toString(), msg);
    }
}

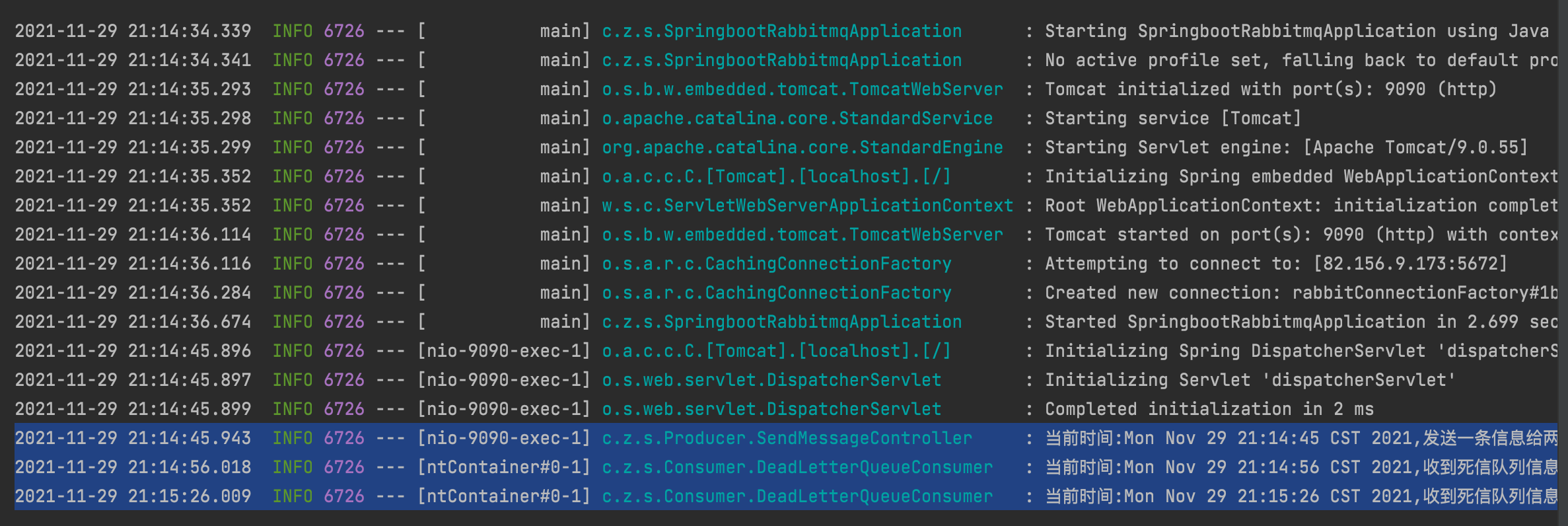

2021-11-29 21:14:45.943  INFO 6726 --- [nio-9090-exec-1] c.z.s.Producer.SendMessageController     : 当前时间:Mon Nov 29 21:14:45 CST 2021,发送一条信息给两个TTL队列:hello
2021-11-29 21:14:56.018  INFO 6726 --- [ntContainer#0-1] c.z.s.Consumer.DeadLetterQueueConsumer   : 当前时间:Mon Nov 29 21:14:56 CST 2021,收到死信队列信息消息来自ttl=10s的队列hello
2021-11-29 21:15:26.009  INFO 6726 --- [ntContainer#0-1] c.z.s.Consumer.DeadLetterQueueConsumer   : 当前时间:Mon Nov 29 21:15:26 CST 2021,收到死信队列信息消息来自ttl=40s的队列hello

package com.zsr.springbootrabbitmq.init;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.HashMap;
import java.util.Map;

@Configuration

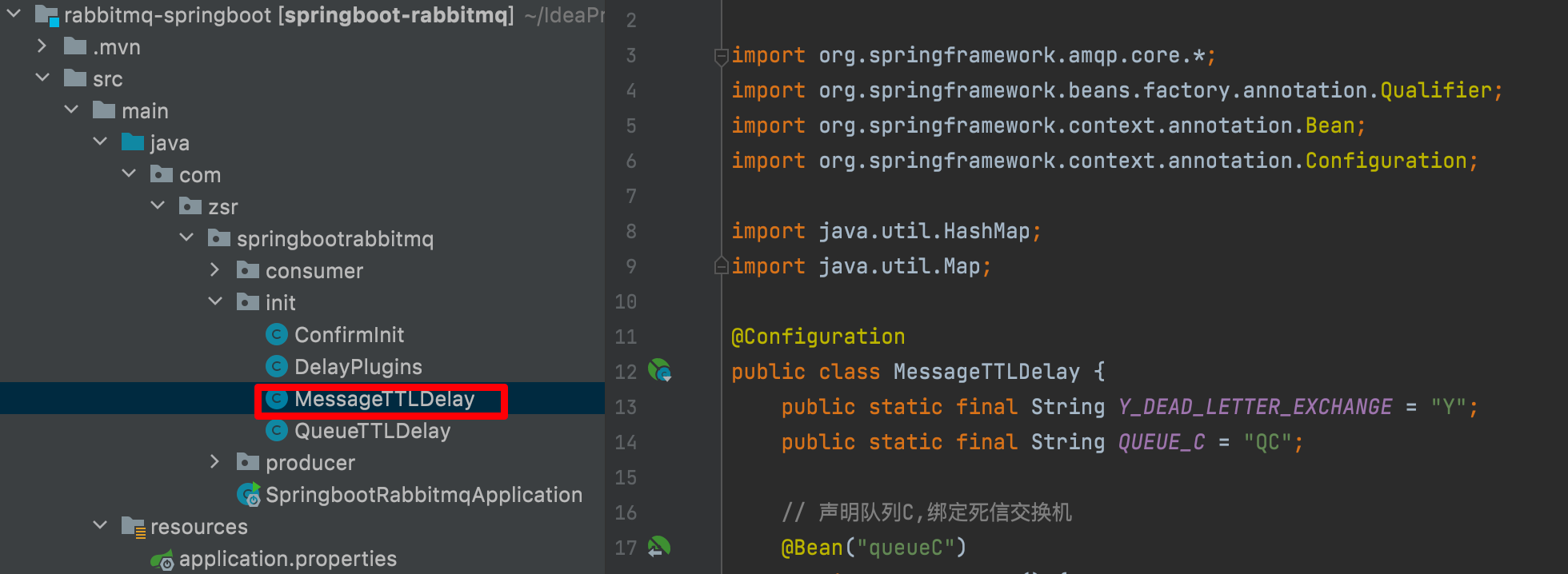

public class MessageTTLDelay {
    public static final String Y_DEAD_LETTER_EXCHANGE = "Y";
    public static final String QUEUE_C = "QC";

    // 声明队列C,绑定死信交换机
    @Bean("queueC")
    public Queue queueB() {
        Map<String, Object> args = new HashMap<>(3);
        // 声明当前队列绑定的死信交换机
        args.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
        // 声明当前队列的死信路由 key
        args.put("x-dead-letter-routing-key", "YD");
        // 没有声明TTL属性
        return QueueBuilder.durable(QUEUE_C).withArguments(args).build();
    }

    // 绑定队列B和X交换机
    @Bean
    public Binding queueCBindingX(@Qualifier("queueC") Queue queueC, @Qualifier("xExchange") DirectExchange xExchange) {
        return BindingBuilder.bind(queueC).to(xExchange).with("XC");
    }
}

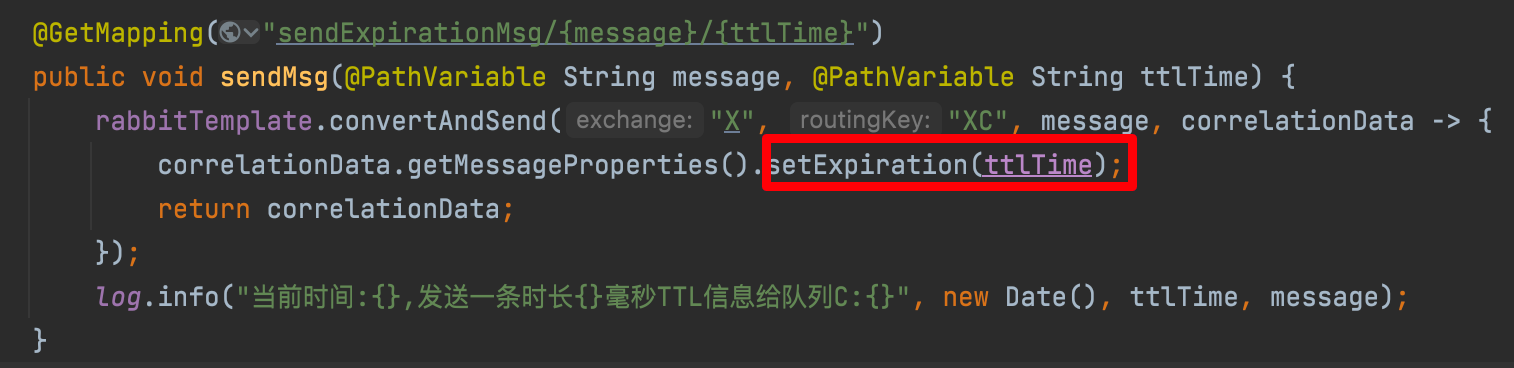

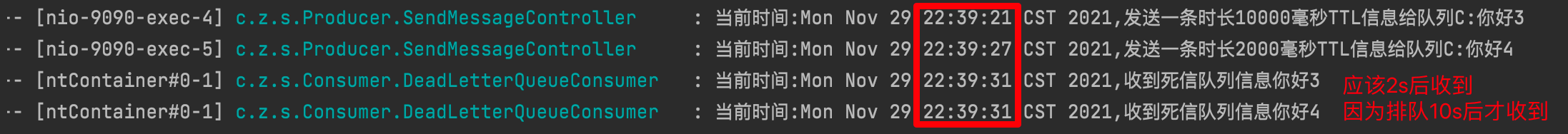

@GetMapping("sendExpirationMsg/{message}/{ttlTime}")
public void sendMsg(@PathVariable String message, @PathVariable String ttlTime) {
    rabbitTemplate.convertAndSend("X", "XC", message, correlationData -> {
        correlationData.getMessageProperties().setExpiration(ttlTime);
        return correlationData;
    });
    log.info("当前时间:{},发送一条时长{}毫秒TTL信息给队列C:{}", new Date(), ttlTime, message);
}
